Quick Details
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
830x760x1240mm
-
Weight (KG):
-
430 KG
-
Power (kW):
-
4
-
Product Name:
-
Thickness Planer Machine
-
Function:
-
Planing Wood Surface Smooth
-
Keywords:
-
Woodworking Thicknesser Machine
-
Feeding speed:
-
6.8m/min
-
Working Thickness:
-
3-180mm
-
Machine type:
-
Auotmatic Feeding
-
Spindle speed:
-
6500r/min
-
Advantage:
-
Easy Operation
Quick Details
-
Max.Planing Depth(mm):
-
180 mm
-
Max.Planing Width(mm):
-
400
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
830x760x1240mm
-
Weight (KG):
-
430 KG
-
Power (kW):
-
4
-
Product Name:
-
Thickness Planer Machine
-
Function:
-
Planing Wood Surface Smooth
-
Keywords:
-
Woodworking Thicknesser Machine
-
Feeding speed:
-
6.8m/min
-
Working Thickness:
-
3-180mm
-
Machine type:
-
Auotmatic Feeding
-
Spindle speed:
-
6500r/min
-
Advantage:
-
Easy Operation
Products Disply

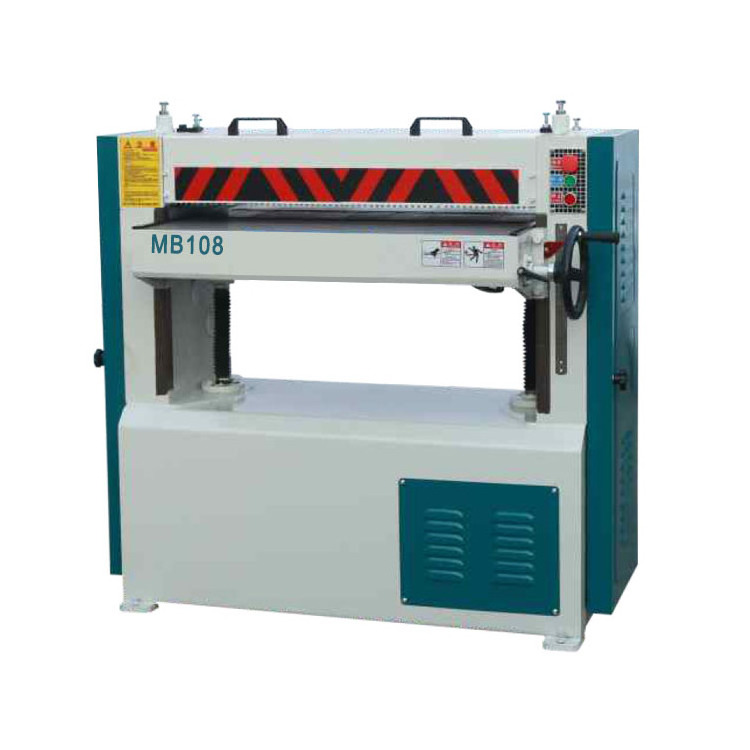

MB104/105/106/ 108 woodworking heavy duty wood thickness planer
1. Heavy-duty body structure, strong and durable.
2. High-quality motor, fast heat dissipation，strong power
and high efficiency
.
3. Standardstraight knife, optional spiral knife.
4. Machine size and voltage can be customized.
5. Provide complete after-sales service.
Product Parameters
|
Model
|
MB104
|
MB105
|
MB106
|
MB108
|
|||
|
Max.working width
|
400mm
|
500mm
|
630mm
|
830mm
|
|||
|
Max.workingthickness
|
180mm
|
|
|
|
|||
|
Min.working thickness
|
3mm
|
|
|
|
|||
|
Max.cutting depth
|
≤4mm
|
|
|
|
|||
|
Working lenpth
|
≥250mm
|
|
|
|
|||
|
Spindle speed
|
6500r/min
|
|
|
|
|||
|
Feed speed
|
6.8m/min
|
|
|
|
|||
|
Power
|
4kw
|
|
5.5kw
|
|
|||
|
Voltage
|
380V
|
|
|
|
|||
|
Weight
|
430kg
|
550kg
|
600kg
|
750kg
|
|||
|
Size
|
760*830*1240mm
|
760*930*1270mm
|
760*1060*1270mm
|
760*1260*1270mm
|
|||
