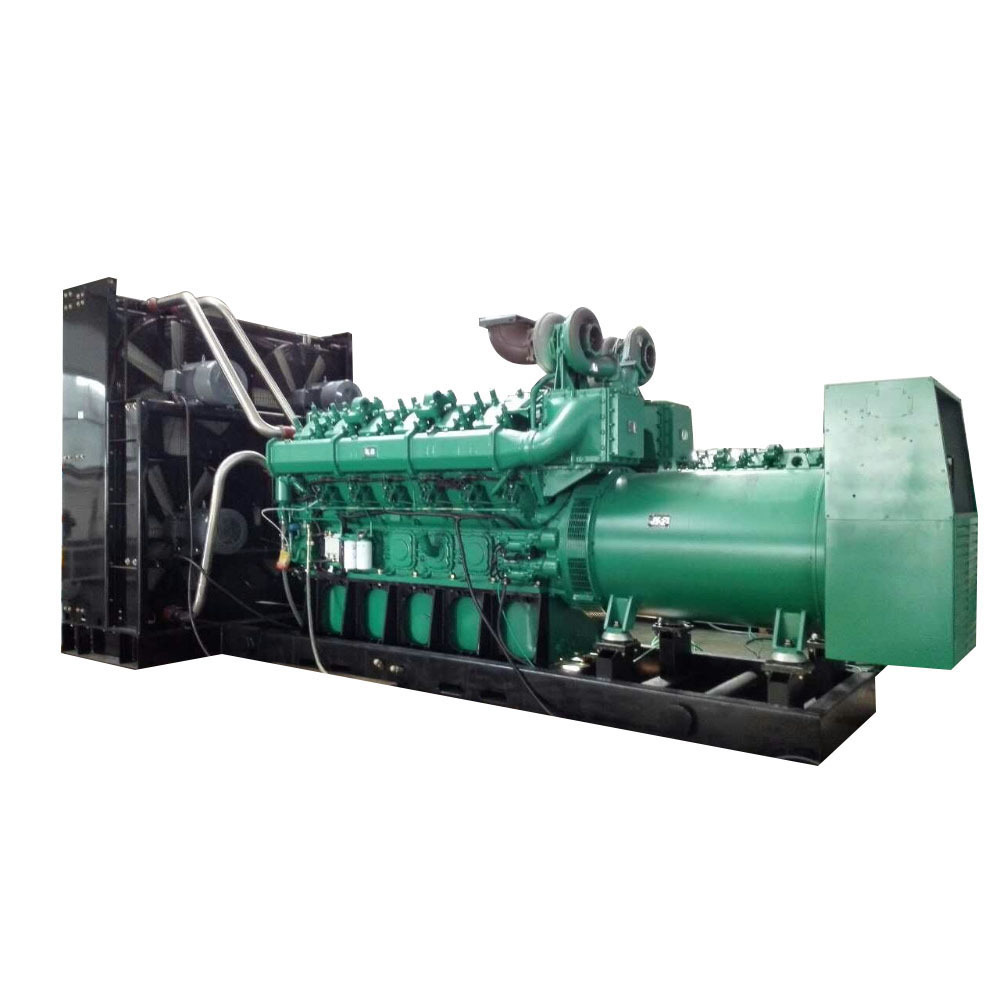

Hot sale customized 1 mw biomass generator price
Hot sale customized 1 mw biomass generator price

Hot sale customized 1 mw biomass generator price

FOB Reference Price: Get Latest Price
≥1 Sets
US $380000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
1000GFT-J
Rated Voltage:
440V/230V
Rated Current:
1800A
Speed:
1500rpm
Frequency:
50Hz
Product name:
Hot sale customized 1 mw biomass generator price
Overall dimension (L x W x H)(mm):
5450*2250*3050mm
Gross Weight:
10000kg
Fuel type:
Biomass
Rated power:
1000kW/1250kVA
Alternator:
MBH( Germany)
Basics electric parameter:
50Hz,3 p 4 w,440V/230V
Certificate:
ISO;CE
Warranty:
1 Year
Engine model:
NY1056D110TL-2

Quick Details

Rated Power:
1000kW
Place of Origin:
Shandong, China
Brand Name:
NPT
Model Number:
1000GFT-J
Rated Voltage:
440V/230V
Rated Current:
1800A
Speed:
1500rpm
Frequency:
50Hz
Product name:
Hot sale customized 1 mw biomass generator price
Overall dimension (L x W x H)(mm):
5450*2250*3050mm
Gross Weight:
10000kg
Fuel type:
Biomass
Rated power:
1000kW/1250kVA
Alternator:
MBH( Germany)
Basics electric parameter:
50Hz,3 p 4 w,440V/230V
Certificate:
ISO;CE
Warranty:
1 Year
Engine model:
NY1056D110TL-2
Product Description

Product Application

Biomass is used for facility heating, electric power generation, and combined heat and power. The term biomass encompasses a large variety of materials, including wood from various sources, agricultural residues, and animal and human waste.

Product name
Hot sale customized 1 mw biomass generator price
Model
1000GFT-J
Rated power
1000kW/1250kVA
Rated speed
1500rpm
Power factor
Lag0.8
Protection Class
IP23
Gross Weight
10000kg
Dimension(L*W*H)
5450*2250*3050mm
Basics electric parameter
50Hz,3 p 4 w,440V/230V

Benefits


The raw material used are rice husk, wheat husk, wood bricks, wood saw and other dried agricultural waste.
This technology helps in tapping Biomass energy which otherwise goes unused in the atmosphere and increases global warming.
The final output of Biomass is an environment friendly gas as it has very low content of sulphur dioxide and nitrogen oxide with almost negligible carbon dioxide.
It is 100% replacement to the local Electricity bill and Diesel Generators.
No dependency on external factors such as electricity failure/shortage in fuel (diesel), etc.
This decentralized mode of electricity generation helps in reducing the burden on the state power grid and also contributes in power transportation saving.
The heat coming out from the exhaust is carbon less and is around 400-650 degree Celsius, which can be easily used for indirect heating purposes and can also add to the savings.

Detailed Images
Gas Engine
Model
NY1056D110TL-2
Type
V type 4 stroke, electric control ignition, pre-mixed stoichiometryburn
Rated power
110kW
Rated Speed
1500rpm
Speed regulation
Electronic governor
Cylinder Qty
16
Bore*Stroke
200*210mm
Displacement
105.6L
Fuel gas type
Biomass
Fuel gas intake pressure
2kPa--50kPa
Control panel
L-L&L-N voltage
Speed and running hours
load current
Engine oil temperature
Frequency
Engine oil pressure
Load power
Coolant temperature
Alternator
Model
XN6G
Brand
MBH( Germany)
Rated Power
1000kW/1250kVA
Rated current
1800A
Rated Frequency
50Hz
Rated output
440V/230V
Exciting Mode
Self-Excited,Brushless
Voltage Regulation
AVR
Our Service

Pre-sale

Provide specification parameter and consultants service,customized design optional.

After-sale

Installation guide and commissioning service .

Technical support and spare parts supplying.

Operation and maintenance manual.

Tracking

Regularly consult feedback from end user, avoid potential problem and solve fault in time.
