Quick Details
-
Bottle Volume(ml):
-
2500 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BOWEI
-
Voltage:
-
220/380V/50-60HZ
-
Dimension(L*W*H):
-
1.46x0.71x1.58Mtr(LxWxH)
-
Power (kW):
-
12KW
-
Weight (KG):
-
1000 KG
-
Model No.:
-
SBM-2-800S
-
Capacity:
-
500-800BPM
-
Power Consumption:
-
220V/380V/50-60HZ
-
Electric Supply:
-
12KW
-
Material:
-
PET/PP/PE/PC
-
Bottle Height(Max):
-
360mm
-
Bottle Diameter(Max):
-
180mm
-
Weight:
-
1000kgs
-
Power(W):
-
12kw
-
Automatic:
-
SEMI AUTOMATIC
-
Certification:
-
1
Quick Details
-
Neck Diameter(mm):
-
22 mm
-
Max.Bottle Diameter(mm):
-
180 mm
-
Max.Bottle Height(mm):
-
360 mm
-
Bottle Volume(ml):
-
2500 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BOWEI
-
Voltage:
-
220/380V/50-60HZ
-
Dimension(L*W*H):
-
1.46x0.71x1.58Mtr(LxWxH)
-
Power (kW):
-
12KW
-
Weight (KG):
-
1000 KG
-
Model No.:
-
SBM-2-800S
-
Capacity:
-
500-800BPM
-
Power Consumption:
-
220V/380V/50-60HZ
-
Electric Supply:
-
12KW
-
Material:
-
PET/PP/PE/PC
-
Bottle Height(Max):
-
360mm
-
Bottle Diameter(Max):
-
180mm
-
Weight:
-
1000kgs
-
Power(W):
-
12kw
-
Automatic:
-
SEMI AUTOMATIC
-
Certification:
-
1
Product Description

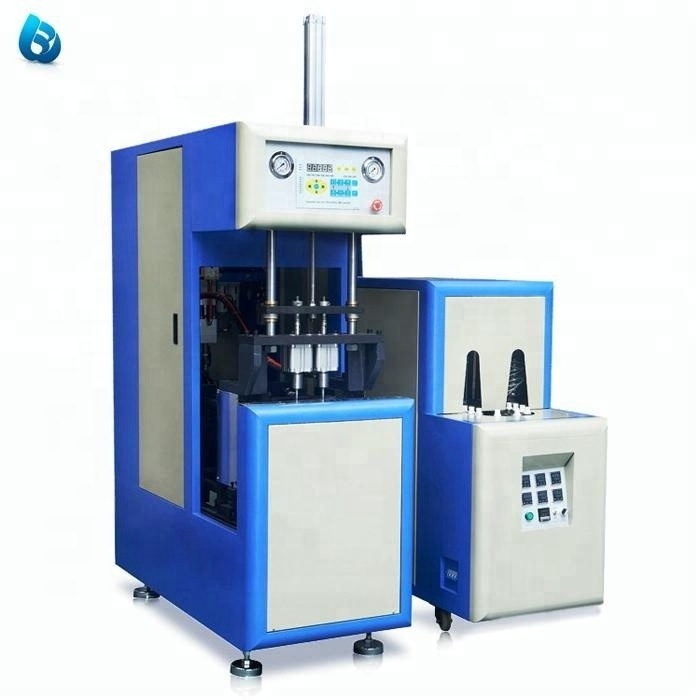

Pet Stretch Blow Moulding Machine Plastic Bottle Making Machine
|
Pet Stretch Blow Moulding Machine Mini Blow Moulding Machine |
| * Capacity:900BPH | |
| * Material: PET | |
| * Volume:0.2-2.5L(2 cavity) 3-6L(1-cavity ) | |
| * Electric Supply : 220v/380v 50hz | |
| * FOB price : USD1400.00-7800.00 | |
| * Wenzhou BOWEI | |
| * Adequate productivity | |
| * most competitive price | |
| * meet up with local market needs | |
| * let us begin to communicate immediately!!! | |
| Contact us >> |
| ITEM | MEASURE-MENT | SBM-880 |
| Material | / | PET/PP |
| Volume | L | 0.05-2.0(2-cav)3-5(1-cav) |
| Theoritical output | Pcs/h | 700-1000 |
| Max.length | MM | 360 |
| Max.diameter | MM | 180 |
| Max.mould plate dimension(l*h) | MM | 420*500 |
| Clamping force | KN | 180 |
| Power | KW | 12 |
| Voltage/Frequency | V/HZ | 220~380/50~60 |
| Machine dimension(l*w*h) | M | 1.66*0.74*2.2 |
| Machine weight | Kg | 700 |
| Pre-heater dimension(l*w*h) | M | 1.46*0.71*1.58 |
| Pre-heater weight | Kg | 300 |
Product details
|
|
|||
| ITEM | Name of the main spare parts | BRAND NAME | COUNTRY |
| 1. | Closing cylinder | FESTO | GERMAN |
| 2. | Sealing cylinder | FESTO | GERMAN |
| 3. | Stretching cylinder | FESTO | GERMAN |
| 4. | Closing magnetic valve | FESTO | GERMAN |
| 5. | Stretching magnetic valve | FESTO | GERMAN |
| 6. | Blowing magnetic valve | FESTO | GERMAN |
| 7. | Moving magnetic valve | FESTO | GERMAN |
| 8. | Voltage regulator | CHINA | |
| 9. | Computer controller | BOTHFIT | TAIWAN JOINT |
| 10. | Infrared lamp | CHINA | |
| 11. | Open circuit controller(32A) | DELEX | CHINA |
| 12. | Heat continue controller | DELEX | CHINA |
related products
Company information
packaging &shipping
Application&Features
|
This system is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items which are just a few examples
|
| 1 | Original FESTO air cylinder. |
| 2 | Minimize your initial investment by starting small. |
| 3 | Add additional systems economically as your business grows. |
| 4 | Bottles of different sizes can be produced simultaneously to meet your exact requirements. |
| 5 | Change over from one size to another can be completed simply and quickly. |
| 6 | The tooling costs (molds) are low since the design of the system is simple. |
| 7 | Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design. |
| 8 | Maintenance costs are kept to a minimum and highly-trained personnel are not required |
how it works&FAQ
|
|
|
| 1. | The Blow Molding system does not require highly trained operators to produce consistent quality bottles. |
| 2. | The bottle making process starts by loading preforms into the preheater. |
| 3. | The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance. |
| 4. | When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder. |
| 5. | After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use. |
|
|
|
| 1 | What is the terms of payment ? |
| We accept L/C ,40% dawn payment balance pay before shipment by T/T | |
| 2 | What is your delivery time? |
| Normally we will delivery the goods in 15-30 working days . | |
| 3 | Warranty time ? |
| One year. | |
| 4 | How you ship the machine? |
| We will send by sea,as the machine dimension is large we do not suggest you send by air ,but if you need urgently ,send by air we can also do it . | |
| 5 | Any easy broken parts free of charge,when we place order? |
| Yes . | |
| With 16 years OEM experience, we can provide professional solutions for customer. Send your Inquiry Details in the Below, Click Send >> Now!!! | |
