Quick Details
-
Style:
-

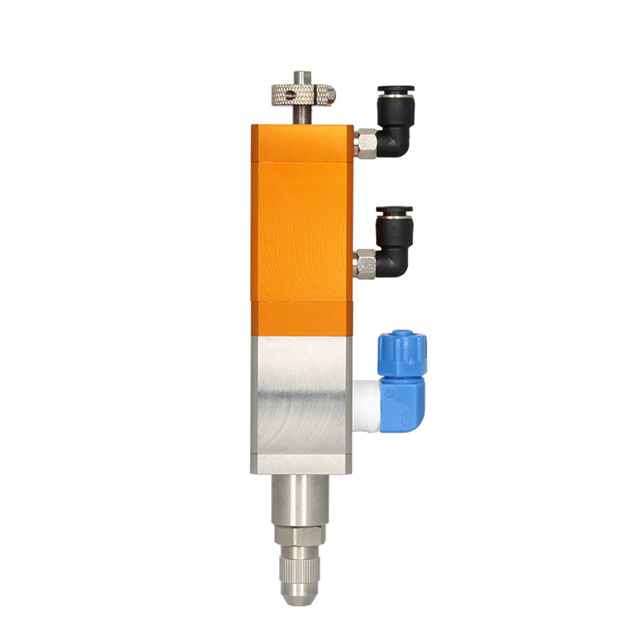

Double action needle dispensing valve
-
Model:
-
YK-32
-
Working form:
-
Repeated lifting type
-
Working air pressure:
-
4-7kgf/cm2
-
Control mode:
-
Two position five way solenoid valve
-
Minimum output:
-
0.01ml
-
Using viscosity:
-
1,0000-.30,0000 CPS
-
Material:
-
Aluminum alloy anode/Special steel
-
Feed size:
-
G1/4
-
Operating Frequency:
-
<600 times/min
Quick Details
-
Weight (KG):
-
0.54
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yakoo
-
Style:
-
Double action needle dispensing valve
-
Model:
-
YK-32
-
Working form:
-
Repeated lifting type
-
Working air pressure:
-
4-7kgf/cm2
-
Control mode:
-
Two position five way solenoid valve
-
Minimum output:
-
0.01ml
-
Using viscosity:
-
1,0000-.30,0000 CPS
-
Material:
-
Aluminum alloy anode/Special steel
-
Feed size:
-
G1/4
-
Operating Frequency:
-
<600 times/min
Technical parameter
|
Working air pressure
|
4-7kgf/cm2
|
|
|
Control mode
|
Two position five way solenoid valve
|
|
|
Minimum output
|
0.01ml
|
|
|
Using viscosity
|
1,0000-30,0000. CPS
|
|
|
Material
|
Aluminum alloy anode/Special steel
|
|
|
Feed pressure
|
<10kg
|
|
|
Feed size
|
G1/4
|
|
|
Can the flow be adjusted
|
YES
|
|
|
Operating Frequency
|
<600 times/min
|
|
|
Weight
|
460g
|
|
|
Suitable for: medium viscosity or medium high viscosity adhesives.
Viscosity: 1,0000-30,0000. Applicable fluids: Such as water, silicone, butter, power oil and so on. Structure of dispensing valve: lifting dispensing valve (with suction function). |
|
|
