Quick Details
-
Model Number:
-
YDK95-180-4
-
Frequency:
-
50Hz / 60Hz, 50Hz/60Hz
-
Application:
-
Air cooler
-
Model:
-
YDK120-120-4
-
Speed:
-
820-1350rpm
-
Rated Voltage:
-
208-240V/108-120V
-
Protection class:
-
IP21
-
Wiring:
-
Copper Wire
-
Poles:
-
2/4/6/8/10/12
-
Keywords:
-
Fan Motor
-
Rotator/Stator:
-
silicium steel
Quick Details
-
AC Voltage:
-
208-230 / 240 V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tingertech
-
Model Number:
-
YDK95-180-4
-
Frequency:
-
50Hz / 60Hz, 50Hz/60Hz
-
Application:
-
Air cooler
-
Model:
-
YDK120-120-4
-
Speed:
-
820-1350rpm
-
Rated Voltage:
-
208-240V/108-120V
-
Protection class:
-
IP21
-
Wiring:
-
Copper Wire
-
Poles:
-
2/4/6/8/10/12
-
Keywords:
-
Fan Motor
-
Rotator/Stator:
-
silicium steel

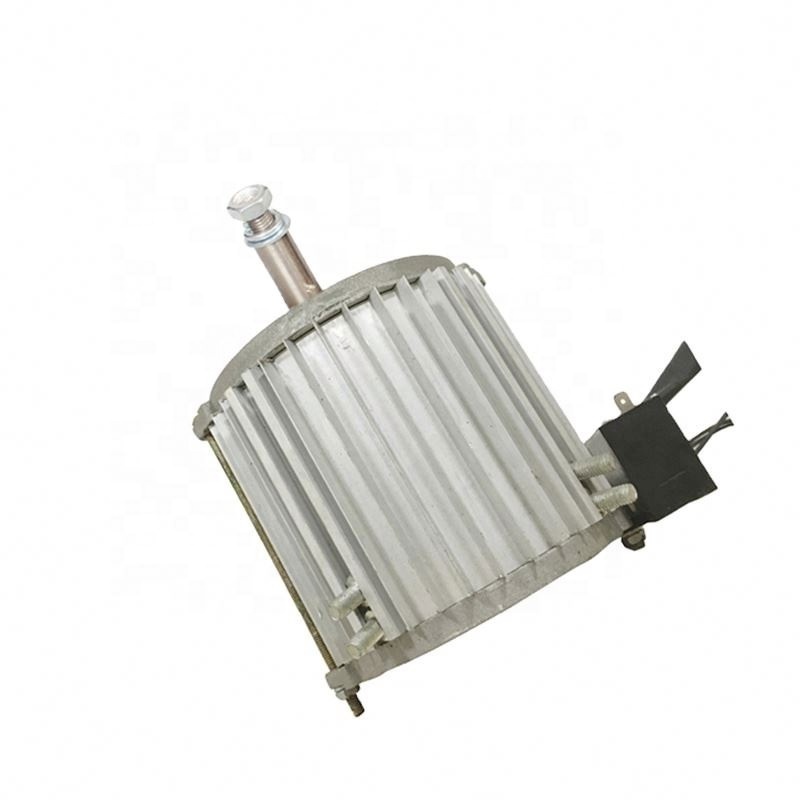

1/2 hp 100% pure copper Ac single phase evaporative air cooler Fan Motor
Product Description
| Model | Voltage(V) | Frequency(Hz) | Output(W) | Speed(RPM) | Capacitor(μF) | Rotation |
| YDK120-120-4 | 220/240 | 50/60 | 120 | 1350 | 5 | CW-SE |
| YDK139-150-6 | 208-230 | 50/60 | 150 | 930 | 10 | CW-SE |
| YDK139-200-4 | 208-230 | 50/60 | 200 | 1180 | 10 | CW-SE |
| YDK139-350-4 | 208-230 | 50/60 | 350 | 930 | 12 | CW-SE |
| YSK139-350-4 | 208-230 | 50/60 | 350 | 1200 | 10 | CW-SE |
| YDK139-100-10 | 208-230 | 50/60 | 100 | 520 | 6 | CW-SE |
| YDK139-150-4 | 208-230 | 50/60 | 100 | 1100 | 6 | CW-SE |
| YDK140-150-6T5 | 220-240 | 50 | 1/5HP | 850/3 SPD | 10 | CCW |
| YDK160-185-4A | 115/127 | 50/60 | 1/4HP | 1425/1725 | 10 | CW-SE |
| YDK160-185-4A2 | 220/230 | 50/60 | 1/4HP | 1425/1725 | 10 | CW-SE |
| YDK160-245-4A | 115/127 | 50/60 | 1/3HP | 1425/1725 | 10 | CW-SE |
| YDK160-245-4A2 | 220/230 | 50/60 | 1/3HP | 1425/1725 | 15 | CW-SE |
| YDK160-375-4A | 115/127 | 50/60 | 1/2HP | 1425/1725 | 15 | CW-SE |
| YDK160-375-4A2 | 220/230 | 50/60 | 1/2HP | 1425/1725 | 20 | CW-SE |
| YDK160-550-4A | 115/127 | 50/60 | 3/4HP | 1425/1725 | 20 | CW-SE |
| YDK160-550-4A2 | 220/230 | 50/60 | 3/4HP | 1425/1725 | 20 | CW-SE |
| YDK160-735-4A | 115/127 | 50/60 | 1HP | 1425/1725 | 30 | CW-SE |
| YDK160-735-4A2 | 220/230 | 50/60 | 1HP | 1425/1725 | 30 | CW-SE |
