Quick Details
-
Model Number:
-
AHC15A
-
Max. Current:
-
16Amp
-
Type:
-
AHC15A
-
INSTALLATION:
-
DIN RAIL
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
AHC15A
-
Max. Current:
-
16Amp
-
Type:
-
AHC15A
-
INSTALLATION:
-
DIN RAIL
-
Certification:
-
CE

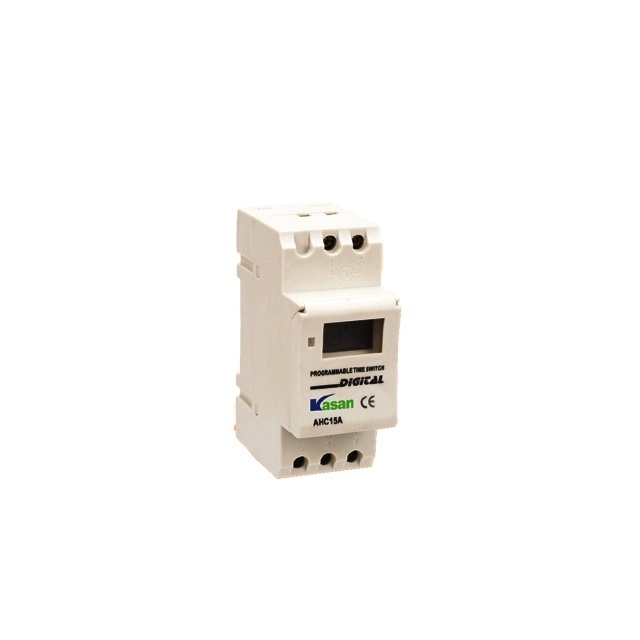

What is the Features of the Time Switches ?
1. Din Rail Installation
2. Advanced pre-setting one week before
3. Digital electronic general purpose time switch with daily and weekly programs
4. Repeat programs with 8 ON/OFF settings
5. To-the-minute setting accuracy
6. LCD displays real time to Hour/Minute and ON/AUTO/OFF
What is the Specifications about our Time Switches ?
| Classification | Weekly Programmable | |
| Type |
AHC15A |
|
| Dimensions(mm) | 81×36×66 | |
| Full Timing Range | Per week or per day cycle | |
| Rated Voltage | AC 220V 50/60HZ85%-110% | |
| Contact Capacity | 12AAC250V | |
| Contact Form | 1Z | |
| Accuracy | ≤2S/DAY(℃) | |
| Expectancy Display | LCD | |
| Mounting Holes | ---- | |
| Mounting Form | Front-panel,din Rail | |
|
Life |
Electrical | ≥105times |
| Mechanical | ≥105times | |
| Operating Mode | -20℃~+50℃ | |
| Programmable | 9time/week or day | |
| Workmode | 15days | |
