Density:≥18.2g/cm3
usage temperature:≤2500℃
blackness:0.295 at 2027℃
Thermal Expansion coefficient(0-1600℃)4.98*10
vapor pressure:10 -6Pa at 2100℃
- Product Details
- {{item.text}}
Quick Details
-
Product Name:
-
Tungsten Crucible
-
Material:
-
W1,w2
-
Density:
-
≥18.5g/cm3
-
Size:
-
Can be customized
-
Shape:
-
Tungsten crucible or melting pot
-
Melting Point:
-
3400°C
-
Boiling Point:
-
5555°C
-
Technique:
-
Sintering process, machining
-
Application:
-
Sapphire crystal growth furnace,quartz glass melting furnace, etc.
-
Keywords:
-
Tungsten crucible,tungsten crucible for melting
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Sanhe Jinyuan
-
Model Number:
-
SHJY Tungsten Crucible
-
Product Name:
-
Tungsten Crucible
-
Material:
-
W1,w2
-
Density:
-
≥18.5g/cm3
-
Size:
-
Can be customized
-
Shape:
-
Tungsten crucible or melting pot
-
Melting Point:
-
3400°C
-
Boiling Point:
-
5555°C
-
Technique:
-
Sintering process, machining
-
Application:
-
Sapphire crystal growth furnace,quartz glass melting furnace, etc.
-
Keywords:
-
Tungsten crucible,tungsten crucible for melting
Products Description
Tungsten crucible for melting
Application:
Tungsten crucible is widely used in furnace industry such as heating elements of induction furnace, quartz glass melting furnace,and rare earth smelting furnace.
Notes:
1. Tungsten crucible are heavy and fragile, lift slowly and steadily using high strength hoisting soft belt.
2. Tungsten crucible must be stored in a dry area(humidity less than 60%),otherwise they are easy to be oxidized get black.
3. When setting up the tungsten crucible, the support structure and base should be always horizontal not only at room temperature but also at working temperature to ensure the crucible is not skewed while working.
2. Tungsten crucible must be stored in a dry area(humidity less than 60%),otherwise they are easy to be oxidized get black.
3. When setting up the tungsten crucible, the support structure and base should be always horizontal not only at room temperature but also at working temperature to ensure the crucible is not skewed while working.
|
Product Name
|
Tungsten crucible for melting
|
|
|
|
|||
|
Material
|
W1,w2
|
|
|
|
|||
|
Specification
|
0.4-300*B*l or Customized
|
|
|
|
|||
|
Sample
|
Available
|
|
|
|
|||
|
MOQ
|
5kg
|
|
|
|
|||
|
Surface
|
Polished , Black, Alkali washing, Lathing.
|
|
|
|
|||
|
Technique
|
Sintering process, machining (tungsten rod hollowing processing)
|
|
|
|
|||
|
Meltng point
|
3410±20℃
|
|
|
|
|||
|
Density
|
18.0g/cm3~19.3g/cm3
|
|
|
|
|||
|
Boiling Point
|
5555°C
|
|
|
|
|||
|
Certification
|
ISO9001:2008
|
|
|
|
|||
|
Application
|
Coating technique, electronic industry and engineering, Sapphire crystal growth furnace,quartz glass melting furnace, etc.
|
|
|
|
|||
|
Keywords
|
tungsten cucible, tungsten crucible for melting, tungsten crucible price
|
|
|
|
|||

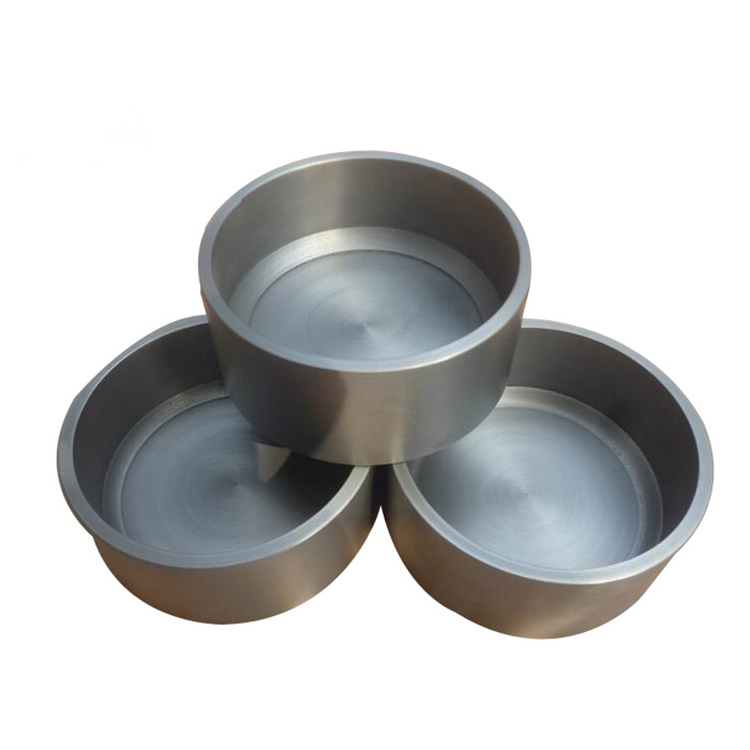

Product Shown
Density:≥18.2g/cm3
usage temperature:≤2500℃
blackness:0.295 at 2027℃
Thermal Expansion coefficient(0-1600℃)4.98*10
vapor pressure:10 -6Pa at 2100℃
Differences of tungsten crucible for high temperature furnace
1. Sintering tungsten crucible:
Density: 18.0~18.5g/cm3
Working Temperature: 1800~2600DC
2. Forging Tungsten Crucible:
Density: 18.5~19.0g/cm3
Woring Temperature: 1800~2600DC
Density: 18.0~18.5g/cm3
Working Temperature: 1800~2600DC
2. Forging Tungsten Crucible:
Density: 18.5~19.0g/cm3
Woring Temperature: 1800~2600DC
Features of tungsten melting crucible
2. High thermal expansion coefficient
3. Great strength under high temperature
4. Anti-friction corrosion resistance
5. Good harden ability.
2. Heating elements of induction furnace
3. Quartz glass melting furnace
4. High temperature container
5. Sapphire crystal growing
Company Introduction
Baoji Sanhe Jinyuan metal technology Co., ltd. is located in rare metal research and production base - baoji ,china.With the
complete rare metal processing equipment and strict IS09001 quality certification system.
complete rare metal processing equipment and strict IS09001 quality certification system.
We have been specializing in developing, manufacturing and trading 3 kinds of product series.
1.Thorium-tungsten electrode, Lanthanum-tungsten electrode, Cerium-Tungsten Electrode, Zirconium-tungsten electrode,
Yttrium-tungsten electrode, Pure tungsten electrode, composite tungsten electrode,etc.
2.Tungsten Tungsten bar, tungsten rod, tungsten wire and other tungsten products.
3. Molybdenum bar, molybdenum rod, molybdenum wire and other molybdenum products.
1.Thorium-tungsten electrode, Lanthanum-tungsten electrode, Cerium-Tungsten Electrode, Zirconium-tungsten electrode,
Yttrium-tungsten electrode, Pure tungsten electrode, composite tungsten electrode,etc.
2.Tungsten Tungsten bar, tungsten rod, tungsten wire and other tungsten products.
3. Molybdenum bar, molybdenum rod, molybdenum wire and other molybdenum products.
We have hydrogen production, annealing furnace,rotary forging machine, chain, all kinds of wire drawing machine, grinder, and other rare metal processing equipment. And we can produce tungsten, molybdenum, tantalum, niobium, titanium, nickel, and its alloy bar, bar, wire, plate, foil and its deep processing products ect. Among them, tungsten wire (rod), thorium tungsten wire (rod), tungsten alloy wire (rod), white washing,straightening or disc, polishing are widely used in electric vacuum, electric light source industry, its superior performance, has
a certain reputation at home and abroad.
a certain reputation at home and abroad.
Certifications
Packing&Shipping
Cheap price tungsten crucible for melting
packed:
1.Exported wooden case, or package depending on your requirements.
Our Advantages
FAQ
Q1: Can i have a sample for testing ?
A: Yes, we highlt welcome a sample of tungsten crucible for melting first to check the quality and the market.
Q2: Is it ok to add my logo on the tungsten crucible for melting?
A: Sure,OEM and ODM are available for us.
Q3: What's your MOQ?
A: We are a manufacturer that we have our own factory, we could produce any quantity of tungsten crucible for melting as your request. But as you know, the more the quantity of your order is, the lower the price will be.
Q4: Do you have inspection procedures for tungsten crucible for melting?
A: 100% self-inspection before packing. We provide Quality Certification for every order .
Q5: How to deal with the faulty ?
A: Firstly, Our product are produced in strict quality control system and the defective rate will be less than 0.2%.
For defective batch products of tungsten crucible for melting, we will repair them and resend them to you or we can discuss the solution including refund.
Q6: Are you trading company or manufacturer?
A: We are a factory and exporter for tungsten crucible for melting .
