Waste Pe Pp Film Woven Bags Recycling Pellet Making Plastic Pelletizing Machine
Waste Pe Pp Film Woven Bags Recycling Pellet Making Plastic Pelletizing Machine
Waste Pe Pp Film Woven Bags Recycling Pellet Making Plastic Pelletizing Machine
Waste Pe Pp Film Woven Bags Recycling Pellet Making Plastic Pelletizing Machine
Waste Pe Pp Film Woven Bags Recycling Pellet Making Plastic Pelletizing Machine
Waste Pe Pp Film Woven Bags Recycling Pellet Making Plastic Pelletizing Machine
Waste Pe Pp Film Woven Bags Recycling Pellet Making Plastic Pelletizing Machine
Waste Pe Pp Film Woven Bags Recycling Pellet Making Plastic Pelletizing Machine

Waste Pe Pp Film Woven Bags Recycling Pellet Making Plastic Pelletizing Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $60000
≥2 Sets
US $59000
≥3 Sets
US $58000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V 50H 3P
Dimension(L*W*H):
20*5*5M
Power (kW):
300
Weight:
40
Screw Speed (rpm):
1 - 115 rpm
Pelletizing Machine Motor:
Siemens
Bearing:
NSK SKF
Inverter:
ABB DELTA
PLC:
Siemens
Contactor:
Schneider
Pelletizing Die face cutter:
Horizontal or vertical
Granulator Vacuum Degassing:
1 SET
Metal detecor:
1 SET
Granulator Granules size:
3mm

Quick Details

Output (kg/h):
150 - 1000 kg/h
Place of Origin:
Jiangsu, China
Brand Name:
MOOGE
Voltage:
380V 50H 3P
Dimension(L*W*H):
20*5*5M
Power (kW):
300
Weight:
40
Screw Speed (rpm):
1 - 115 rpm
Pelletizing Machine Motor:
Siemens
Bearing:
NSK SKF
Inverter:
ABB DELTA
PLC:
Siemens
Contactor:
Schneider
Pelletizing Die face cutter:
Horizontal or vertical
Granulator Vacuum Degassing:
1 SET
Metal detecor:
1 SET
Granulator Granules size:
3mm
Products Description
PE/PP Film Plastic Bags Die-Face Cutting Pelletizer Pelletizing Granulator Granulating Line Plant Machine
This Machine for waste plastic film / bags pe pp ldpe hdpe bopp lldpe recycling pelletizing / granulator /granulating machine . We have two model for customer choosing .

RDS Series :
Single Stage Compacting Die-Face Cutting Pelletizing Line (no baby stage). If your material more clean (not dirty), you can use this type and more economic.

RSS Series
Double Stage Compacting Die-Face Cutting Pelletizing Line which working with mother and baby stage . more stable, higher capacity .more strong filter system. it produces more clean and more density granules.
We can design the layout according to customers' workshop.
Product Specification
Pelletizing Machine Model
RSS
Recycling Material
LDPE, LLDPE, HDPE, PP, BOPP, CPP, EPS, PS, PPS, ABS, PA, PLA
Pelletizing Machine Capacity
200-1200KG/H
Pelletizing Screw Diameter
80-200MM
Screw Design
Single Screw
Granulator L/D Ratio
33-44/1
Granulating Screw Rpm
90-180
Screw Material
38CrMoAl
Gearbox Brand/type
BONENG Brand/ High Torque Vertical
Pelletizing Line Motor Brand
SIEMENS / WEG
Degassing Zone
2
Pelletizer type
Water ring pelletizer
Total Power
150-650KW
Delivery Time
60-70 days
Pelletizing Machine Warranty Time
12 months
Recycling Pelletizing Certificate
CE
Technology Parameter
Technology Parameter
Technology Parameter
Pelletizing
Type
SJ-100
SJ-120
SJ-150
SJ-180
SJ-200
Granulator
Capacity (kg/h)
200-300
300-400
400-500
600-800
800-1000
Energy consumption (kWh/kg)
0.2-0.3
0.2-0.3
0.2-0.3
0.2-0.3
0.2-0.3

Exturder
Screw Diameter (mm)
Φ100
Φ120
Φ150
Φ180
Φ200
L/D
33-44/1
33-44/1
33-44/1
33-44/1
33-44/1
Motor power (kW)
75
90
110
160
200


Filter
(options)
Two position plate type
●
●
●
●
●
Two position piston type
○
○
○
○
○
Back flush piston type
○
○
○
○
○
Automatic self-cleaning type
○
○
○
○
○

2 nd Extruder
(optional)
Screw Diameter (mm)
Φ100
Φ120
Φ150
Φ180
Φ200
L/D
8-12/1
8-12/1
8-12/1
8-12/1
8-12/1
Motor power (kW)
30
45
55
75
90


Downstream (options)
Water ring pelletizer
●
●
●
●
●
Strand pelletizer
○
○
○
○
○
Automatic strand pelletizer
○
○
○
○
○
Underwater pelletizer
○
○
○
○
○
Product Details

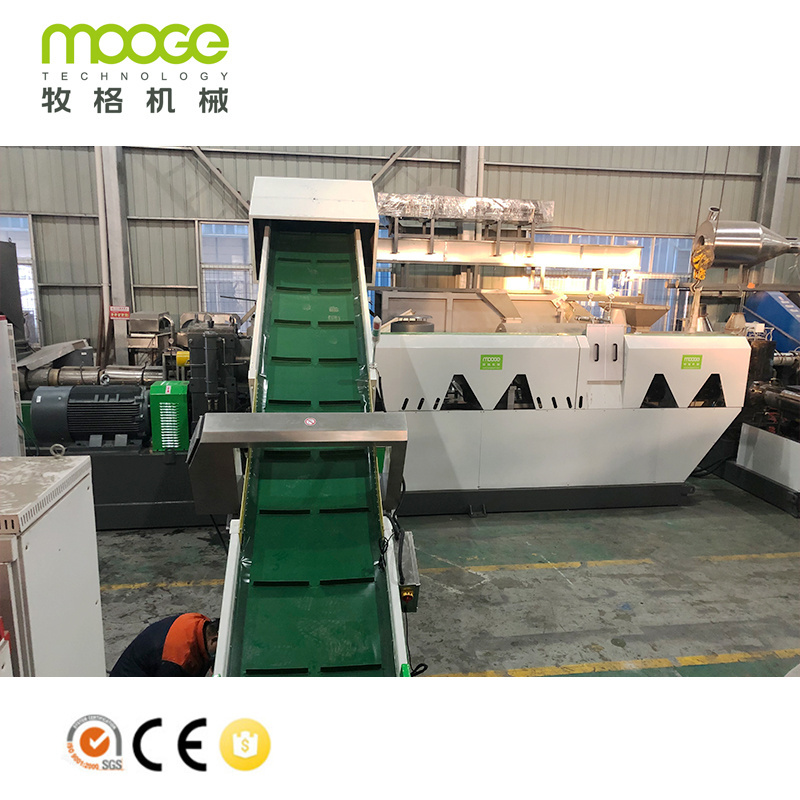

Conveyor Belt For Pelletizing / Granulator/ Granulating Line
· Conveyor Belt as standard feeding device for plastic film, raffia, filament, woven bag, non-woven fabric, etc.
· Metal detector can be installed on conveyor as optional item, detecting and separating the metal to protect the compactor and extruder effectively.
Force Compactor Agglomerator  For Pelletizing / Granulator/ Granulating Line
· With optimal design of rotary blades and stationary blades.
· The material got cutting, mixing and compacting in the compactor uniformly, to ensure the material heated and dried effectively which guarantee a fast and stable feeding from the compactor into the extruder.
Single Screw Extruder For Pelletizing / Granulator/ Granulating Line
· By screw’s rotation, the plastic material goes forward, to finish the processing of compacting, melting, homogenization. Material of screw adopts qualified nitride steel( 38CrMoAl ), process of CNC, with nitride treatment, has the ability of corrosion resistance and wear-resisting. With the specialized design of screw, even running with high speed, the material of polyolefin can be well melted under lower temperature and lower melting pressure.
· High efficiency and low noise, Long use life and low maintenance cost.
Filter System For Pelletizing / Granulator/ Granulating Line
· Plate type, pistion type and automatic self-cleaning type filter, Different choice according to impurity contents in material and customer’s habit.
· Plate type filter is cost-effective and easy to operate which mainly used for regular thermoplastic as usual filtration solution.
Water Ring Cutter For Pelletizing / Granulator/ Granulating Line
· Cutting speed of pelletizer controlled automatically by PLC according to the pressure of die head, which could achieve the uniform size for output pellets.
· Blades of pelletizer touch to die plate automatically by pneumatic system, make sure blades contact with die plate properly, easy to operate and abrasion avoided.

Vertical Dewatering Machine

· Remover water with high speed before granules into vibrator screen machine.
· Rotor and cover made by SUS 304.

Vibrating Screen

· Double layer.
· First layer to screen out bigger size material, good material goes out from middle, dust get out from the bottom.

Silo

· The function of the blower is to transport particles to the silo through stainless steel pipes.
· Pipes and silos are wrapped with black sound insulation cotton, which reduces the volume from 82dB to 68dB.
· Pipes and silos are made by SUS 304.

Electrical Control Cabinet

· Inverter: ABB/DELTA.
· Contactor: Schneider.
· Adopt CE safety electrical components.
· Solid state relay is optional for heating control.
· Safety interlock principle applied in the system
Customer factory
