Brand: Siemens
Brand: Hiwin
Original: Taiwan, China
Famous products, top quality used on crossbeam (X axis), carling (Y axis) and Z axis to gurantee perfect cutting accuracy and long
lifespan.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
high
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Dimension(L*W*H):
-
5700*3260*2765mm
-
Weight:
-
5400 kg
-
Ordinary Product:
-
Siemens PLC
-
Guide Rail:
-
Hiwin Linear Square Guide
-
Blade diameter:
-
400-450mm
-
Blade rotation:
-
+/- 270°
-
Blade tilt:
-
0-45°
-
Worktable rotation:
-
0-360°
-
Worktable tilt:
-
0-85°
-
Grease lubrication:
-
Automatic
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
21.3kw
-
Cutting thickness (max):
-
100mm
-
Production Capacity:
-
high
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Dimension(L*W*H):
-
5700*3260*2765mm
-
Weight:
-
5400 kg
-
Ordinary Product:
-
Siemens PLC
-
Guide Rail:
-
Hiwin Linear Square Guide
-
Blade diameter:
-
400-450mm
-
Blade rotation:
-
+/- 270°
-
Blade tilt:
-
0-45°
-
Worktable rotation:
-
0-360°
-
Worktable tilt:
-
0-85°
-
Grease lubrication:
-
Automatic

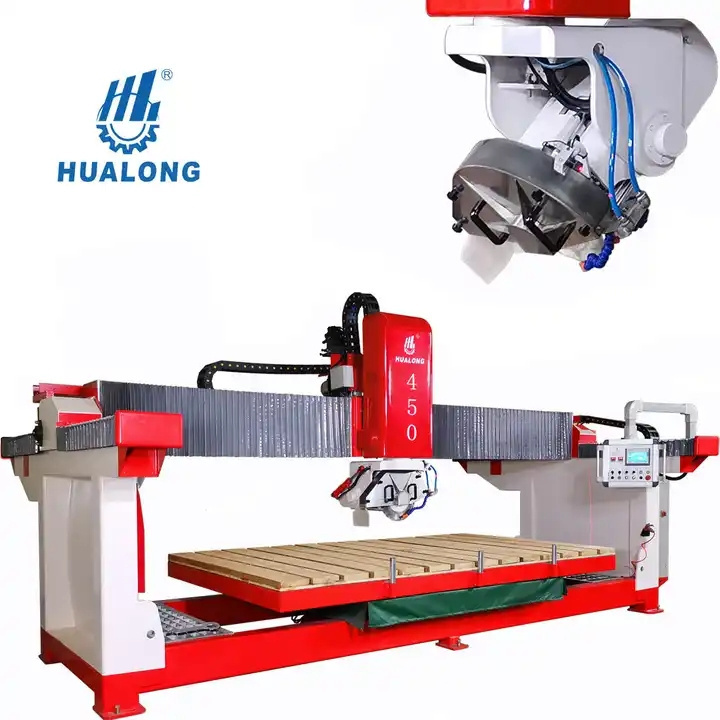

Stone Bridge Saw
Hualong HLSQ-450
is an monoblock
Automatic Bridge Stone Cutting Machine
with Siemens PLC controller. It offers interpolated axes,+/-270° rotating head and a fully tilting/rotating table, is programmable and sutable for cut slab of grainte, marble, quartz and other natural or engineered stones to size. Fully warranty provided.
|
Technical Data of HLSQ-450
|
|
|
|
|
||||
|
|
Diameter of saw blade
|
mm
|
Φ400 - Φ450
|
|
||||
|
|
Dimension of working platform
|
mm
|
3300 x 2000
|
|
||||
|
|
Power of main motor
|
kw
|
15
|
|
||||
|
|
Power of tool slide reciprocating motor
|
kw
|
1.1
|
|
||||
|
|
Power of crossbeam shifting motor
|
kw
|
1.5
|
|
||||
|
|
Power of hydraulic station motor
|
kw
|
2.2
|
|
||||
|
|
Gross power
|
kw
|
21.3
|
|
||||
|
|
Max. length of horizontal cutting
|
mm
|
3300
|
|
||||
|
|
Max. thickness of cutting
|
mm
|
90
|
|
||||
|
|
Max. lifting travel of cutter
|
mm
|
300
|
|
||||
|
|
Max. lifting weight by vacuum
|
kg
|
500
|
|
||||
|
|
Water consumption
|
m3/h
|
2
|
|
||||
|
|
Gross weight
|
kg
|
5400
|
|
||||
|
|
Dimension (L x W x H)
|
cm
|
5700x3260x2765
|
|
||||
Main Features:
1) Monoblock structure for easy transport, installations and no foundation needed.
2) Siemens, Schneider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
4) Blade can tilt 45° automtically for chamfering cutting.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Manual cuts available for simple machining
7) Worktable can rotate 0-360°, pause at every 45° automatically or stop at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
2) Siemens, Schneider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
4) Blade can tilt 45° automtically for chamfering cutting.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Manual cuts available for simple machining
7) Worktable can rotate 0-360°, pause at every 45° automatically or stop at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
Control system
Machine Part
Name: Incremental Encoder
Brand: ELCO from Germany
For the determination of head movement in X, Y, Z direction and worktable rotation to ensure position precision without the
slightest deviation
Brand: ELCO from Germany
For the determination of head movement in X, Y, Z direction and worktable rotation to ensure position precision without the
slightest deviation
Brand: Hiwin
Original: Taiwan, China
Original: Taiwan, China
Famous products, top quality used on crossbeam (X axis), carling (Y axis) and Z axis to gurantee perfect cutting accuracy and long
lifespan.
lifespan.
Laser Reticule Apparatus
Origin: China
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Electric Cabinet
Brand: Siemens, Schneider, Sanch..
.
Quality electrics used to ensure stable performance.
Quality electrics used to ensure stable performance.
Optional Accessaries:
Remote ControlFor control the movement of 3 axises conviniently.
Hydraulic Giant
For cleaning.
Hydraulic Giant
For cleaning.
1) 25 years + experience professional on making stone machines.
2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.
3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.
4) For chamfering cutting, the blade tilt of HLSQ-450 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.
3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.
4) For chamfering cutting, the blade tilt of HLSQ-450 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What’s your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
