Quick Details
-
Brand Name:
-
XINWANG
-
Model Number:
-
XW-801F serie
-
Weight:
-
1100kg
-
Dimension(L*W*H):
-
as model
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Brand:
-
XINWANG
-
Certificate:
-
ISO9001: 2000/ CE/SGS/TUV
-
Applications:
-
for Rewinding Various roll materials (with/without glue)
-
Working width:
-
1300/1600mm
-
Rewinding diameter:
-
300-400mm
-
Unwinding Diameter:
-
800mm
-
Length counting:
-
automatic
-
Tension Control:
-
Pneumatic and Magnetic for option
-
Air sorce:
-
0.6kg
-
Working speed:
-
High speed model to 300m/min.
-
Certification:
-
ISO9001: 2000/ CE/SGS/TUV
Quick Details
-
Voltage:
-
380V/50HZ
-
Power:
-
4kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINWANG
-
Model Number:
-
XW-801F serie
-
Weight:
-
1100kg
-
Dimension(L*W*H):
-
as model
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Brand:
-
XINWANG
-
Certificate:
-
ISO9001: 2000/ CE/SGS/TUV
-
Applications:
-
for Rewinding Various roll materials (with/without glue)
-
Working width:
-
1300/1600mm
-
Rewinding diameter:
-
300-400mm
-
Unwinding Diameter:
-
800mm
-
Length counting:
-
automatic
-
Tension Control:
-
Pneumatic and Magnetic for option
-
Air sorce:
-
0.6kg
-
Working speed:
-
High speed model to 300m/min.
-
Certification:
-
ISO9001: 2000/ CE/SGS/TUV

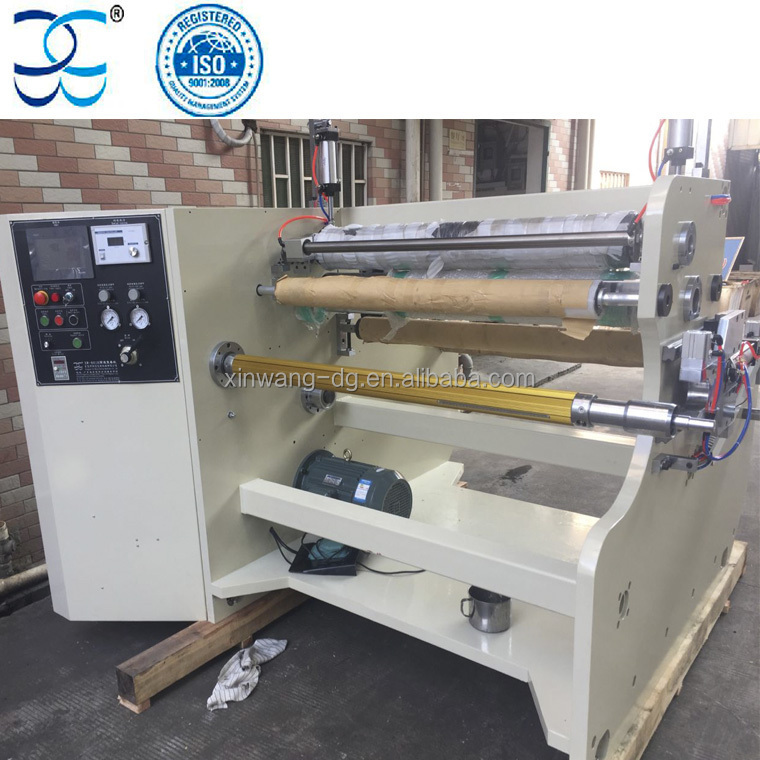

High Speed Poster Paper Roll Rewinding Machine
Basic Parameters:
1. Unwinding width: 1300mm/1600mm or other size as request
2. Diameter of core: 3"(according to customer's request)
3. Total power: 4kw
4. Power supply: 3 phase 380v
Main Features
A. Adopts 25mm armor plate for stable structure and nice appearance.
B. With high anti-adhesive rubber pressure roller.Could be applied to rewinding adhesive tape with high viscosity and strong tensile.
C. Enlarge transfer shaft with double air cylinder.
D. Magnetic tension control system and brake.
E. Passing embossing shaft and active smooth roller are used for eliminating film-wrinkle and air -bubble.
F. Auto coherent control system adopted, which means once the machine started, the whole rewinding process would complete automatically.
Different type of rewinding machine
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
