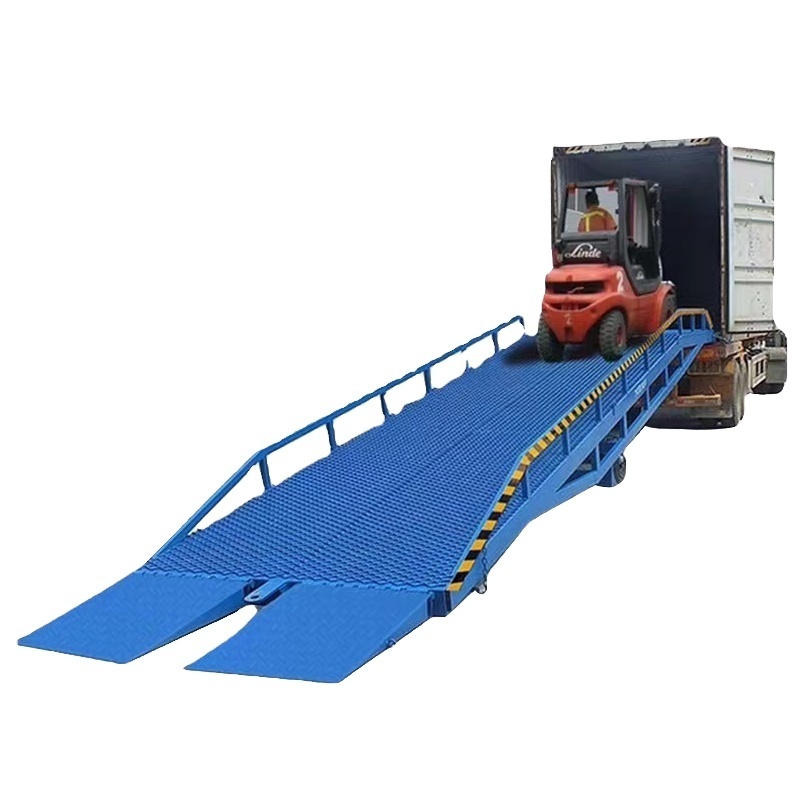

Mobile boarding bridge structure: The mobile boarding bridge is composed of a mechanical system, a hydraulic system, and an
electrical system. The platform and chassis form a mechanical system. The platform is made of "U" shaped steel as the skeleton,
with light self weight and large bearing capacity; The countertop is made of anti slip patterned steel plates and has a high
load-bearing capacity; The countertop is made of anti slip patterned steel plates, and can withstand a speed of 10 kilometers/hour
when the forklift is fully loaded without bending, improving work reliability.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
Manual hydraulics
-
Min. Lifting Height:
-
1.1m
-
Table Size:
-
11300*2100
-
Overall Dimensions:
-
11300*2100*1100
-
Weight:
-
2610 kg
-
Color:
-
Green
-
Size:
-
11300*2100*1100
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
haolong
-
Power:
-
Manual hydraulics
-
Min. Lifting Height:
-
1.1m
-
Table Size:
-
11300*2100
-
Overall Dimensions:
-
11300*2100*1100
-
Weight:
-
2610 kg
-
Color:
-
Green
-
Size:
-
11300*2100*1100
|
Load capacity
|
Overall size
|
deadweight
|
Factory quotation (USD)
|
Lifting method
|
|
8T
|
2100*11300*1100mm
|
2500kg
|
2480
|
Manual hydraulic lifting
|
|
10T
|
2100*11300*1100mm
|
2610kg
|
2700
|
Manual hydraulic lifting
|
|
12T
|
2100*11300*1100mm
|
2910kg
|
3100
|
Manual hydraulic lifting
|
|
15T
|
2100*11300*1100mm
|
3200kg
|
3300
|
Electric manualhydraulic lifting
|
Mobile boarding bridge structure
