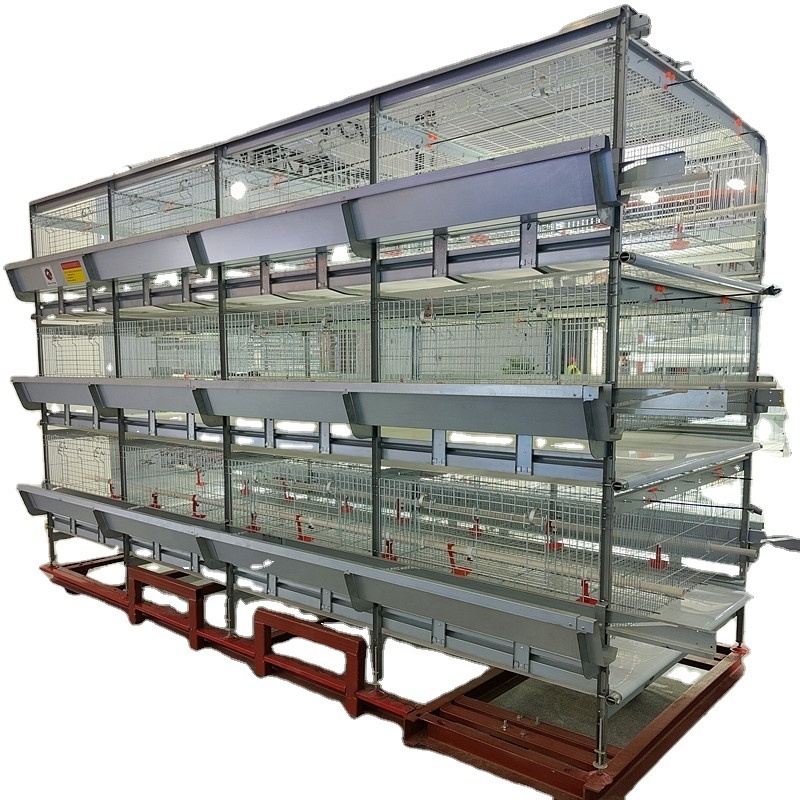

H type broiler cage/chicken cage equipment

H type broiler cage/chicken cage equipment

FOB Reference Price: Get Latest Price

≥50 Sets

US $156

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Silver Star

Model Number:: 9YXB4-208

Marketing Type:: New Product 2022

Weight:: 120 KG

Product name:: Broiler Chicken cage

Tiers:: 3,4,tiers broiler chicken cage

Cage Size:: 1.8x2.1x2.7m;0.65x2.1x2.7m

Cell Size:: 43x60x41cm;65x60x50cm

cage/chicken:: 54,72,90,108,144,192,240,288,384 birds

Cage Frame/Stand:: hot galvanized steel shelf

Usage:: battery cages for broiler chicken

Feature:: Fully Automatic Broiler Raising Chicken Cages

Application:: Poultry Farm Broiler Chicken Equipment

Quick Details

Type:: H Type Broiler Cage, H Type/vertical

Material:: Q235 Hot-Dipped Galvanized

Place of Origin:: Henan, China

Brand Name:: Silver Star

Model Number:: 9YXB4-208

Marketing Type:: New Product 2022

Weight:: 120 KG

Product name:: Broiler Chicken cage

Tiers:: 3,4,tiers broiler chicken cage

Cage Size:: 1.8x2.1x2.7m;0.65x2.1x2.7m

Cell Size:: 43x60x41cm;65x60x50cm

cage/chicken:: 54,72,90,108,144,192,240,288,384 birds

Cage Frame/Stand:: hot galvanized steel shelf

Usage:: battery cages for broiler chicken

Feature:: Fully Automatic Broiler Raising Chicken Cages

Application:: Poultry Farm Broiler Chicken Equipment

Product Description

h type broiler cage/chicken cage equipment

(1)Tiers:3,4, leves/floors

(2)Material:Q235 Hot-Dipped Galvanized, Zinc thickness: 275g/㎡

(3)Frame: Material of leg of frame is hot-dip galvanized steel with thickness: 2mm

(4) Feed trough:Material: hot-dip galvanized steel. Thickness: 1.0mm.

(5)Design:Fully Automatic Poultry Broiler Chicken Cage Equipment

(6)Fully Automatic System Including Meat Chicken Farm Broiler Chicken Poultry Battery Cages Body,Broiler Bird Chicken Cage Frame,Feeders,automatic drinking system,on-rail hopper feeding system,manure removal stystem,chicken harvesting system,Ventilation System etc

Automatic On-Rail Hopper Feeding Machine Equipments

1.Hopper: Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel

2. Traction Device : Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.

3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.

4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.

Silo&Feed Uploading Machine Equipments

1.Capacity:4tons,8tons,10tons,13tons,15tons,20tons,33tons

2.Thickness: 3mm thickness hot galvanized steel

3. Feed density0.65ton/m3.Material of silo is galvanized steel (275g) ,which is anti-erosive and ensures the long service life

4. Feed weighing device can be installed if required to control the feed amount consumed by layers

5.Auger Feed Uploading Device:Hot-Dipped Galvanized

Plastic Slat/Floor

1.Material: Polypropylene,good flexibility

2. Use:Floor can be pulled out when catching the chicken

Large Living Space&Large Door

Advantage:Easier to catch the birds if in manual way;And helps birds live comfortably and grow heathily

Space between two levels of cages

650mm/800mml;

Advantage:Better air circulation to reduce the diease

Front Drinking Lines

1.Nipple Drinkers

2.Water Pipes

3.Water Pressure regulator

4.Filter

5.Medical pump

Nipple Drinkers&Water Pipes

1. Water flow: 30-40ml

2. No water splashing or leaking, the bird house is dry and clean.

3. 25mm*2mm PVC round pipe,resistance 90°bending with seven times.

Reducing Valve

1. With double back-flushing system

2. Working pressure:0.1-0.4Mpa.

3.Water flow at working mode is 20kg/min.

Automatic Manure/Waste Cleaning Machine Equipments

1. Belt type manure cleaning machine:Hot-dip galvanized 3mm side plate,chain safety door with 1mm hot-dip galvanized steel, running speed 3m/min.1.5KW

2. Manure cleaning belt:Material is PP, which has high tensile strength to ensure a long service life.Thickness is 1.2mm.Width is 1.2m.

3. Bracket for manure cleaning belt:Material is hot-dip galvanized steel, thickness is1.5mm.

Crosswise Manure/Waste Conveyor

Transverse manure conveying :

Each house is with 1 set, transverse and slope conveying is separate, the material is 5mm angle steel welded. Manure belt: rubber belt with 8mm thickness. The transverse manure conveying system adopts rubber conveying belt. There is no leak of manure during the transportation.

Ventilation Fans

1.Fan frame: Hot-dip galvanized steel with Zinc thickness 275g/m2.

2. Blade: 430BA stainless steel with 1.2mm thickness sheet.

3.50"Fans

Size:1380x1380x450mm

Airflow:44000m3/h

380V/ 50HZ /1.1KW

Cooling Pad

1.Thickness:150,200mm

2.Length:1500,1800,2000,2500mm or as customers' request

3.Frame:Galvanized Or Aluminimum

4.Water Recycling System Included

Environmental Controller

EC-1211 Environmental Controller

1.Box Size:305x228x120mm

waterproof box

2.Multi-functions

3.High quality and application

Roof Fans

1.Diameter:80cm

2.Material:Stainless Steel

3.Application:Poultry House

4.No electricity need,no noise,can work in the long way.

Heaters

Heaters can be used in electricity or fuels,as customers' request

Apply for poultry brooding broiler house

Title goes here.

1.Size:560x270mm

2.With anti-bird mesh,during minimum ventilation mode, fresh air comes into the house through air inlets

3.Can be controlled automatically or manually

Fogging Machines Equipments

1. Pressure：4.0mpa/㎡

2. Water flow：80L/min

3. Motor Power：4KW,380V

4. Water Volume：160L

Specification

Automatic Chicken Harvesting H Type Farm Equipments for Broilers			Manual Chicken Harvesting H Type Farm Equipments for Broilers
Material	Hot Dip Galvanized Steel	Material	Hot Dip Galvanized Steel
Tiers	3 or 4 Tiers	Tiers	3 or 4 Tiers
Capacity	156 birds or 208 birds	Capacity	96 birds or 128 birds
Size	1480mm1750mm440mm	Size	1300mm1250mm430mm
Area of per Chicken	498cm2	Area of per Chicken	508cm2
