Quick Details
-
Brand Name:
-
WEBSTERTOOLS
-
Core Components:
-
er collet
-
Material:
-
65Mn
-
Model:
-
ER11
-
Standard:
-
DIN6499B
-
Usage:
-
ER collet chuck/holder/block
-
Run Out Tolerance:
-
0.005/0.008/0.01/0.015
-
Bore Size:
-
1mm to 7mm
-
Imperial Size:
-
Available
-
Inner Packing:
-
Plastic case/Set box
-
Outer Packing:
-
Carton
-
Application:
-
Metal or Wood working
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Weight (KG):
-
0.2
-
Marketing Type:
-
Wholesale
-
Brand Name:
-
WEBSTERTOOLS
-
Core Components:
-
er collet
-
Material:
-
65Mn
-
Model:
-
ER11
-
Standard:
-
DIN6499B
-
Usage:
-
ER collet chuck/holder/block
-
Run Out Tolerance:
-
0.005/0.008/0.01/0.015
-
Bore Size:
-
1mm to 7mm
-
Imperial Size:
-
Available
-
Inner Packing:
-
Plastic case/Set box
-
Outer Packing:
-
Carton
-
Application:
-
Metal or Wood working

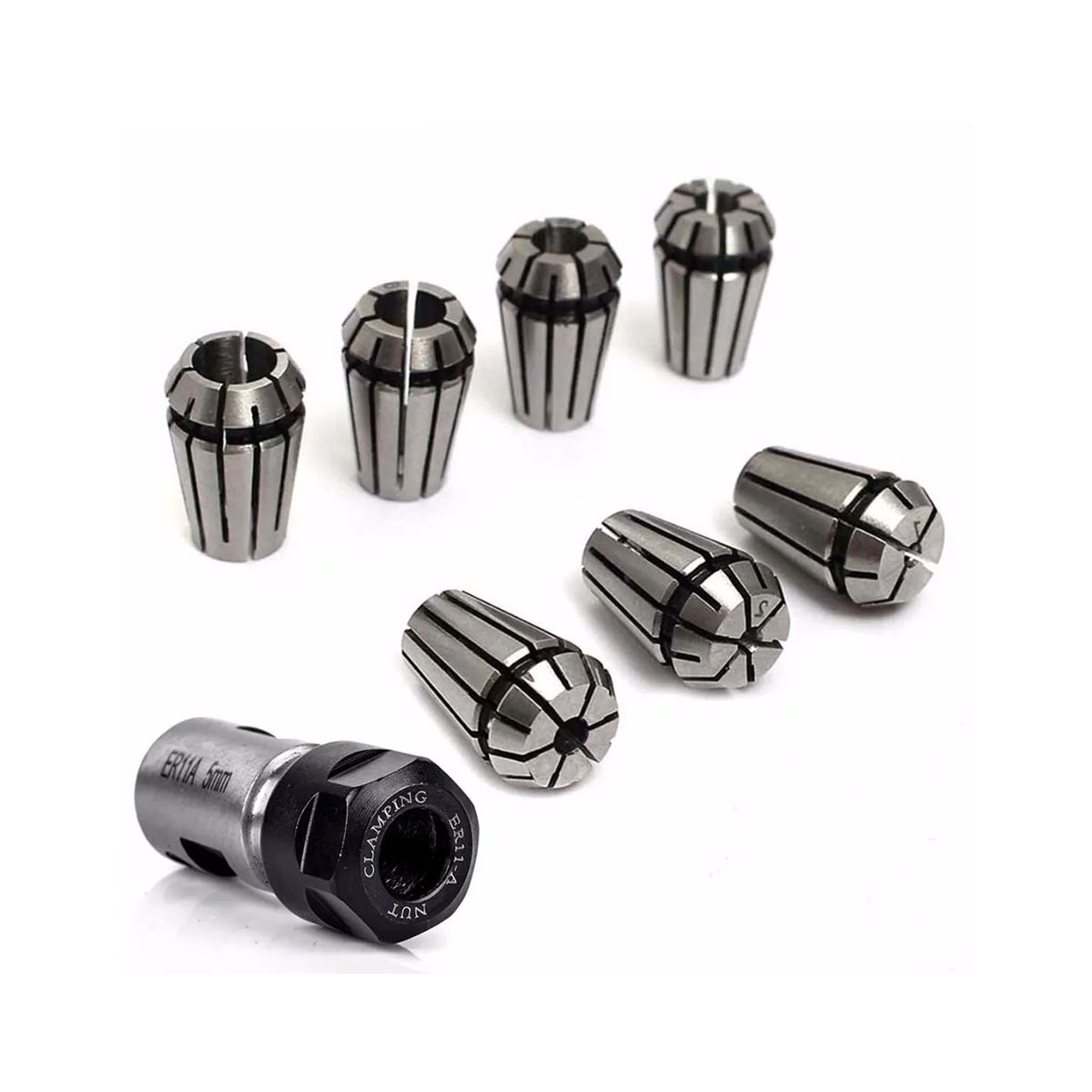

Product Description
*Made of special elastic steel.
*Powerful clamping ability with precision.
*Used for drilling, tapping, milling, boring, grinding and engraving process.
* Put the collet into the nut, turn it gently, until the eccentric part of the nut is recessed into the collet groove, push the collet evenly in the direction of the arrow, and then it can be installed into the nut.
* Install the collet and nut together in the collet holder or machine tool spindle, clean the cylindrical handle of the tool and install it into the clamping hole. Use a wrench to tighten the nut evenly until the tool is firmly clamped before use ( Note: Do not tighten the nut without installing the tool to avoid damaging the collet).
*
When changing the tool, use a wrench to loosen the nut and take out the collet and tool, remove the tool, push the collet hard in the direction of the arrow to withdraw it, and then replace it with a collet of other hole diameters as needed.
Specification
|
Size
|
d
|
D
|
D1
|
D2
|
L
|
L1
|
L2
|
L3
|
Elastic Shrinkage
|
|
ER8
|
1-5
|
8
|
8.45
|
6.5
|
13.5
|
2.98
|
1.5
|
1.2
|
0.5
|
|
ER11
|
1-7
|
11
|
11.5
|
9.5
|
18
|
3.8
|
2.5
|
2
|
0.5
|
|
ER16
|
1-2.5
|
16
|
17
|
13.8
|
27.5
|
6.26
|
4
|
2.7
|
0.5
|
|
|
2.5-10
|
16
|
17
|
13.8
|
27.5
|
6.26
|
4
|
2.7
|
1
|
|
ER20
|
1-2.5
|
20
|
21
|
17.4
|
31.5
|
6.36
|
4.8
|
2.8
|
0.5
|
|
|
2.5-13
|
20
|
21
|
17.4
|
31.5
|
6.36
|
4.8
|
2.8
|
1
|
|
ER25
|
1-2.5
|
25
|
26
|
22
|
34
|
6.66
|
5
|
3.1
|
0.5
|
|
|
2.5-16
|
25
|
26
|
22
|
34
|
6.66
|
5
|
3.1
|
1
|
|
ER32
|
2-2.5
|
32
|
33
|
29.2
|
40
|
7.16
|
5.5
|
3.6
|
0.5
|
|
|
2.5-20
|
32
|
33
|
29.2
|
40
|
7.16
|
5.5
|
3.6
|
1
|
|
ER40
|
3-26
|
40
|
41
|
36.2
|
46
|
7.66
|
7
|
4.1
|
1
|
|
ER50
|
6-10
|
50
|
52
|
46
|
60
|
12.6
|
8.5
|
5.5
|
1
|
|
|
10-34
|
50
|
52
|
46
|
60
|
12.6
|
8.5
|
5.5
|
2
|
Packing & Delivery
Inner plastic case or set case in outer paper carton.
