Quick Details
-
Voltage:
-
Customers Local Voltage
-
Power:
-
by design
-
Dimension(L*W*H):
-
Customized Size
-
Applicable Industries:
-
Coating field
-
Weight (KG):
-
250
-
Equipment Name:
-
paint spray robot
-
Color:
-
yellow or white
-
Kinds of coating:
-
Liquid Coating
-
Technology:
-
Robotic Spraying Painting
-
Type of Robot:
-
ABB/YASKAWA/FANUC/KAWASAKI
-
Pretreatment:
-
Electrostatic cleaning
-
Spraying Gun Type:
-
Automatic spraying gun
-
install location:
-
spraying room for spray painting machine
-
Application:
-
surface treatment of plastic shell,complex big workpiece,Car parts etc
Quick Details
-
Machine Type:
-
painting robot, Spray Booths, Painting Equipment, Plc Controller Programmable Logic Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINQINFENG
-
Voltage:
-
Customers Local Voltage
-
Power:
-
by design
-
Dimension(L*W*H):
-
Customized Size
-
Applicable Industries:
-
Coating field
-
Weight (KG):
-
250
-
Equipment Name:
-
paint spray robot
-
Color:
-
yellow or white
-
Kinds of coating:
-
Liquid Coating
-
Technology:
-
Robotic Spraying Painting
-
Type of Robot:
-
ABB/YASKAWA/FANUC/KAWASAKI
-
Pretreatment:
-
Electrostatic cleaning
-
Spraying Gun Type:
-
Automatic spraying gun
-
install location:
-
spraying room for spray painting machine
-
Application:
-
surface treatment of plastic shell,complex big workpiece,Car parts etc
High Spraying Quality intelligent automatic car painting robot/painting machines of painting line
Production Features:
1. The painting is precise, the normal run time is long, the paint consumption is less. It runs 24 hours and has higher reliability.
2. The painting speed is quick and even. The user can automatically adjust the painting height, direction, angle position based on parts. The painting control is flexible. Omnidirectional painting can be achieved.
3. It is anti-explosion, and environment friendly. It has higher safety, and the operation control
is easier to learn.
4. Spraying painting robot can paint 2 or 5 kinds of product simultaneously.
5. Spraying painting robot has long service life and easier maintenance.
Product Pictures:

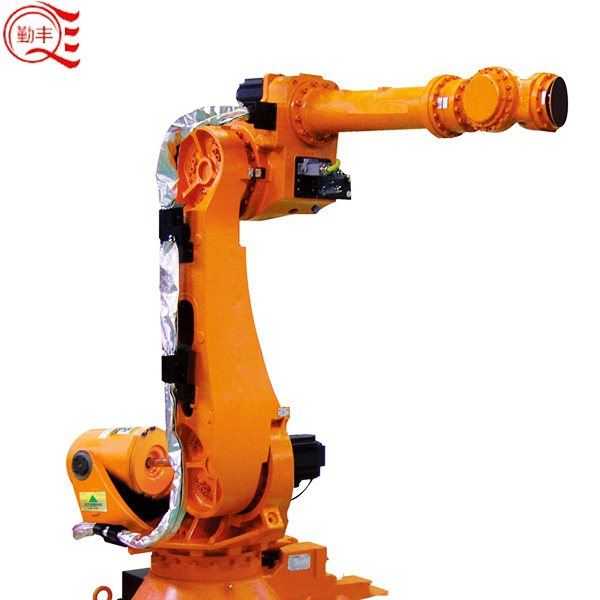

1, KF121 Spraying Robot
|
KF121 SPECIFICATION |
||
|
Type |
Articulated Robot |
|
|
Wrist Type |
RBR |
|
|
Degrees of Freedom(Axes) |
6 |
|
|
Payload(kg) |
5 |
|
|
Max.Reach(mm)*1 |
1,240 |
|
|
Positional Repeatability(mm)*2 |
± 0.2 |
|
|
Motion Range( ° ) |
Arm Rotation(JT1) |
± 160*3 |
|
Arm Out-in(JT2) |
± 90 |
|
|
Arm Up-down(JT3) |
± 150 |
|
|
Wrist Swivel(JT4) |
± 270 |
|
|
Wrist Bend (JT5) |
± 145 |
|
|
Wrist Twist(JT6) |
± 360 |
|
|
Allowable Moment (N*M) |
Wrist Swivel(JT4) |
7.8 |
|
Wrist Bend (JT5) |
7.8 |
|
|
Wrist Twist(JT6) |
2.9 |
|
|
Allowable Moment of Inertia(Kg.m2) |
Wrist Swivel(JT4) |
0.17 |
|
Wrist Bend (JT5) |
0.17 |
|
|
Wrist Twist(JT6) |
0.06 |
|
|
Mass(KG) |
140 |
|
|
Mounting |
Floor,Wall,Ceiling |
|
|
Installation Environment |
Ambient Temperature( ℃ ) |
0-40 |
|
Relative Humidity(%) |
35-85 ( No Dew,Not Frost Allowed ) |
|
|
Power Requirements(kVA) |
1.5 |
|
|
Explosion-Proof Construction |
Combination of pressurized type and intrinsically safety type (Ex ib px Ⅱ B T4 Gb / Ex ib IIB T4 Gb) |
|
|
Controller |
E27 |
|
Application:
The five axis automatic spraying reciprocating machine is wildly used in the field of plastic, electronics,hardware handicraft, TV shell,computer panels,kitchen ware,Car and Car parts,bathroom ware,Power industry etc many fields.
