Quick Details
-
Brand Name:
-
CTCB-AP
-
Model Number:
-
Standard and OEM
-
Name:
-
cnc machine milling End Mill cnc cutting tool end mill 3mm
-
HRC:
-
For HRC40~HRC50
-
Content:
-
WC+Co
-
Type:
-
Mill cutter,Cutting tools,End mill,Tool parts
-
application:
-
For Carbon steel;Alloy steel;Cast iron,Nodular cast iron
-
Helix angle:
-
Helix angle 35°. We can supply helix angle 45° and helix angle 55°
-
Coated:
-
TiAIN coating,Other coated :TiAIN coating ,AITiN coating
-
Teeth:
-
2 flutes. We can supply 2 flutes,4 flutes,6 flutes
-
Grain Size:
-
Micro grain/MG
-
With TIALN coated:
-
Good lubricity
Quick Details
-
Material:
-
Carbide
-
Coating:
-
TiAIN
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CTCB-AP
-
Model Number:
-
Standard and OEM
-
Name:
-
cnc machine milling End Mill cnc cutting tool end mill 3mm
-
HRC:
-
For HRC40~HRC50
-
Content:
-
WC+Co
-
Type:
-
Mill cutter,Cutting tools,End mill,Tool parts
-
application:
-
For Carbon steel;Alloy steel;Cast iron,Nodular cast iron
-
Helix angle:
-
Helix angle 35°. We can supply helix angle 45° and helix angle 55°
-
Coated:
-
TiAIN coating,Other coated :TiAIN coating ,AITiN coating
-
Teeth:
-
2 flutes. We can supply 2 flutes,4 flutes,6 flutes
-
Grain Size:
-
Micro grain/MG
-
With TIALN coated:
-
Good lubricity
Hot Sales Tungsten Solid CNC Carbide Flat End Mills for Steel and Stainless Steel Machining
Advantage Introduction for Hot Sales Tungsten Solid CNC Carbide Flat End Mills for Steel and Stainless Steeel Machining
1: High-performance grinding machine and fully automatic production lead to more stable quality.
2: high-quality PVD coating which ensures the keenness of the tool and also improves the good wear resistance and heat insulation of the endmills.
3: Fully automatic mass production reduces the production costs which makes our endmills with strong Competitiveness in price.
Carbide materials details of Hot Sales Tungsten Solid CNC Carbide Flat End Mills for Steel and Stainless Steeel Machining
| Carbide Grade | Technical Details of tungsten carbide rod |
| CC108 | Co:10% WC ~90% Grain Size: 0.8um |
| CC125 | Co:12% WC ~88% Grain Size: 0.5um |
Sizes of Hot Sales Tungsten Solid CNC Carbide Flat End Mills for Steel and Stainless Steeel Machining
| Specifications (mm) | Cutting | Flute | Shank | A.O.L | Flute |
| d | I | D | L | F | |
| 1.0×2.5×4D×50L×4F | 1 | 1 | 4 | 50 | 4F |
| 1.5×3.75×4D×50L×4F | 1.5 | 3.75 | 4 | 50 | 4F |
| 2.0×5.0×4D×50L×4F | 2 | 5 | 4 | 50 | 4F |
| 2.5×6.25×4D×50L×4F | 2.5 | 6.25 | 4 | 50 | 4F |
| 3.0×7.5×4D×50L×4F | 3 | 7.5 | 4 | 50 | 4F |
| 3.5×8.75×4D×50L×4F | 3.5 | 8.75 | 4 | 50 | 4F |
| 4.0×10×4D×50L×4F | 4 | 10 | 4 | 50 | 4F |
| 5.0×12.5×5D×50L×4F | 5 | 12.5 | 4 | 50 | 4F |
| 5.0×12.5×6D×50L×4F | 5 | 12.5 | 4 | 50 | 4F |
| 6.0×15×6D×50L×4F | 6 | 15 | 15 | 50 | 4F |
| 8.0×20×8D×60L×4F | 8 | 20 | 20 | 60 | 4F |
| 9.0*20*10D*75L*4F | 9 | 20 | 20 | 75 | 4F |
| 10.0×25×10D×75L×4F | 10 | 25 | 25 | 75 | 4F |
| 12.0×30×12D×75L×4F | 12 | 30 | 30 | 75 | 4F |
| 14.0×35×14D×100L×4F | 14 | 35 | 35 | 100 | 4F |
| 16.0×40×16D×100L×4F | 16 | 40 | 40 | 100 | 4F |
| 18.0×45×18D×100L×4F | 18 | 45 | 45 | 100 | 4F |
| 20.0×50×20D×100L×4F | 20 | 50 | 50 | 100 | 4F |
Machining Operation of Hot Sales Tungsten Solid CNC Carbide Flat End Mills for Steel and Stainless Steeel Machiningr:
Flattened end mills
side machining
shoulder machining
straight slot machining
deep slot machining

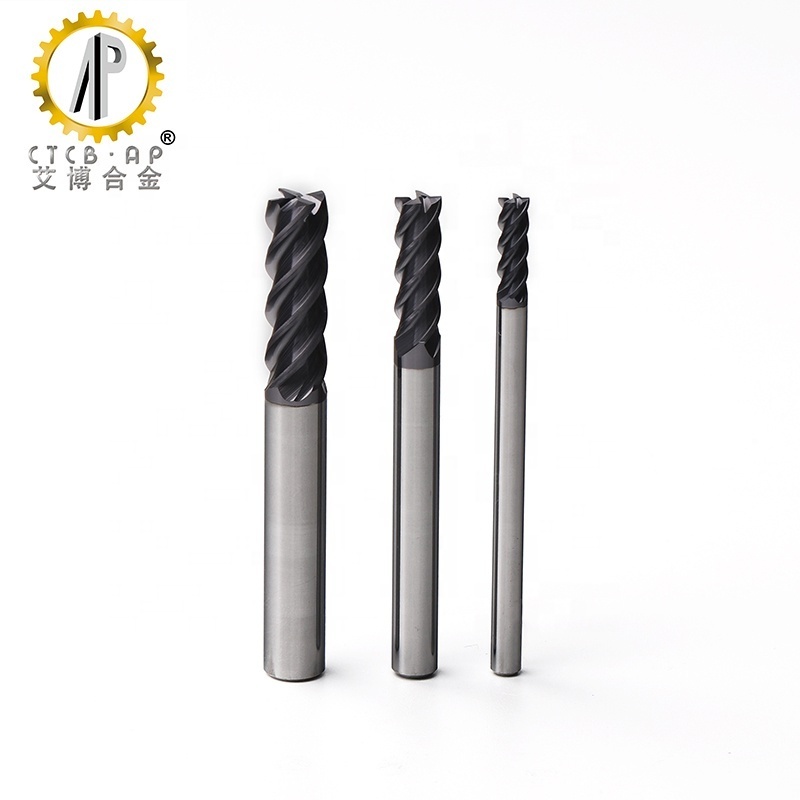

More Photo Shows of Hot Sales Tungsten Solid CNC Carbide Flat End Mills for Steel and Stainless Steeel Machining :
