Quick Details
-
Engine Brand:
-
Laidong
-
Weight:
-
1600 KG
-
Application:
-
Farm Land
-
Product name:
-
25~80HP crawler tractor rubber track tractor
-
Size:
-
2.5*1.2*1.35m
-
power:
-
25~80hp
-
Color:
-
red or customized
-
cooling system:
-
water cooling
-
Fuel consumption:
-
1.5~2.5 liters/mu
-
Power output:
-
rear output(dual output)
-
capacity:
-
Low grade arable land 3-6 mu per hour
-
After-sales Service Provided:
-
Online support
Quick Details
-
Rated Power (HP):
-
>35HP
-
Brand Name:
-
Mingyi
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Laidong
-
Weight:
-
1600 KG
-
Application:
-
Farm Land
-
Product name:
-
25~80HP crawler tractor rubber track tractor
-
Size:
-
2.5*1.2*1.35m
-
power:
-
25~80hp
-
Color:
-
red or customized
-
cooling system:
-
water cooling
-
Fuel consumption:
-
1.5~2.5 liters/mu
-
Power output:
-
rear output(dual output)
-
capacity:
-
Low grade arable land 3-6 mu per hour
-
After-sales Service Provided:
-
Online support
Factory 25HP 35HP 50HP 80 HP crawler tractors Strawberry ridge cultivator
Main function: this model is suitable for the paddy field and dry field assignments, for different implements for rotary tillage, plough, rake, sowing project, such as the optional shovel to light bulldozing operation.
Main Features
1. Use Laidong engine, energy conservation and environmental protection;
2. The single chip, dry type, single main clutch, flexible manipulation of light;
3. A three-stage automatic gearbox, realize without soil under the condition of operation, reasonable matching gear, economical, convenient and reliable control;
4. Welding the main frame and the vehicle frame, high strength, suitable for light load plough homework;
5. High driving wheel, triangle arrangement to gap is high, suitable for paddy field;
6. Type of luggage frame, balance the pallet, roller life is long, the machine good riding comfort, small vibration;
7. Rubber crawler walking system, suitable for all the surface road;
8. Class II suspension system, I break in pieces the grave, can be equipped with rotary tiller and other implements;
9. The optional plow, can undertake light load bulldozing homework; 10. Elegant appearance, quality first-class, can use the optional cab.
Name :50HP Crawler tractor
|
Model |
HH502 |
Working size ( Length. Height. Width ) |
Ordinary model: 2.5×1.2×1.35m Height of chassis from the ground 20 cm |
|
|
Weight |
1600kg |
Heightening model: 2.5×1.4×1.35
Height of chassis from the ground 32 cm
|
||
|
Host configuration |
Power |
50 hp |
Control System
|
Steering wheel controls |
Engine Brand
|
Laidong 490 |
Capacity |
Low-grade arable land 3-4 mu/hour |
|
|
cooling system |
Water cooling
|
The fastest walking 30km/hour |
||
Hydraulic control
|
3 way |
Fuel consumption |
1.5 liters/mu
|
|
|
Power output |
rear output |
Power/speed |
38KW/2400 r/min |
|
|
540 r/min |
Tractor gear number |
3 forward gears 1 reverse gear There are high and low speeds, a total of 8 gears |
||
|
The axis of rotation is off the ground 37cm Heightened section off the ground 55cm |
||||
|
Supporting agricultural machinery (common with traditional four-wheel 50-horsepower tractor agricultural machinery) |
||||

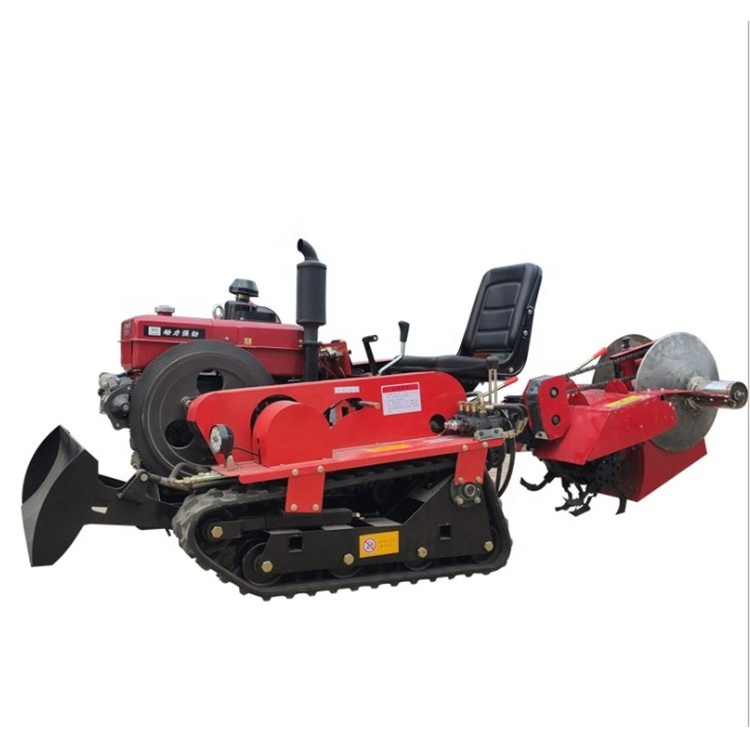

Product show:
More details show:
We can produce all implements for this tractor ,Just email us for details .
Our stock show,have 25~80hp crawler tractor:
