Quick Details
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Van
-
Gross Vehicle Weight:
-
<=5000 kg
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers, Return and Replacement, Online support, Free spare parts
-
Place of Origin:
-
Shandong, China
-
Forward Shift Number:
-
3
-
Size:
-
2200*950*1250
-
Cargo Tank Dimension:
-
1350*950*500
-

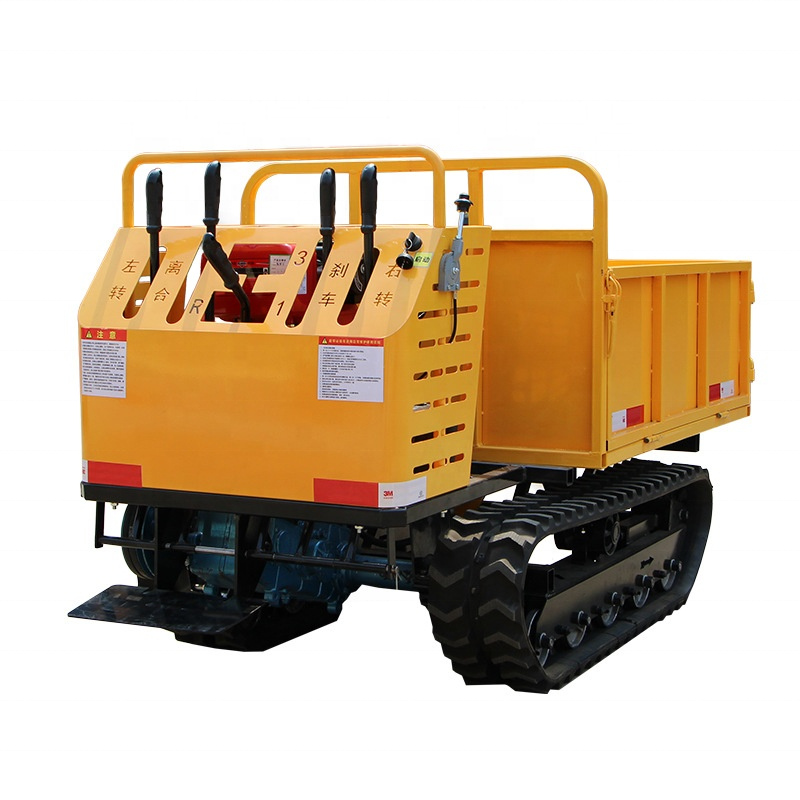

Product name:
-
crawler dumper
-
Drive type:
-
Mechanical drive
-
Color:
-
Yellow Red White Optional
-
Horse power:
-
11hp
-
Loading capacity:
-
1-5Ton
-
Type:
-
crawler
-
size of bucket:
-
2200*950*1250
-
Gearbox:
-
13
-
Curb weight:
-
650kg
-
Engine:
-
Diesel Engine
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Market Segement:
-
Agricultural and sideline products transportation
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Van
-
Gross Vehicle Weight:
-
<=5000 kg
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers, Return and Replacement, Online support, Free spare parts
-
Place of Origin:
-
Shandong, China
-
Forward Shift Number:
-
3
-
Size:
-
2200*950*1250
-
Cargo Tank Dimension:
-
1350*950*500
-
Product name:
-
crawler dumper
-
Drive type:
-
Mechanical drive
-
Color:
-
Yellow Red White Optional
-
Horse power:
-
11hp
-
Loading capacity:
-
1-5Ton
-
Type:
-
crawler
-
size of bucket:
-
2200*950*1250
-
Gearbox:
-
13
-
Curb weight:
-
650kg
-
Engine:
-
Diesel Engine
Product Information
COMPACT STRUCTURE
The rubber track and wheel train replace the traditional wheeled walking, with large bearing capacity, stronggrip and low noise. At the same time, the tracked walking device increases the unit ground area ofthe machine and the grouno without damage farmland and asphalt pavement. Have good driving and passing performance. Reduce the damage to the famland ground. double-end seal structure on the shaft guarantees that the lubricating oil seal does not leak out and prevents muddy water from entering the wheel cavity.
MANEUVERABLE AND FLEXIBLE
Relying on the supporting wheels and tracks to supportthe weight ofthe entire vehicle, the enter of gravity isstable: the tuming radius is small, especially suitable for narrow sites, complex terrain, reducing the cost of road construcon; large traction, good climbing performance, strong transport capacity, It has the functions of forward, backward, turming, walking, flexible movement, and long distance walking
STABLE AND RELIABLE
The vehicle chassis and bracket use specia materials with high strength and rigidity to ensure the stability of the whole machine; the support wheels, guide wheels, and drive wheels are made of high-strength alloy steel, which has good wear resistance and long service life. It adopts high-strength wear-resistant and anti-oxidation materials: the mechanical transmission gearbox is specialy designed, wet friction pads, single-axle steering brake, large torque, strong bearing capacity, large output power,stable and reliable steering brake
CONVENIENT AND EFFICIENT
Equiped with hydraulicliftingand sel-dumping function. self-dumping angle can be adjust, reducing labor intensity and improving trans portation efficiency; equipped with electric start. The structure is simple, the transmission is stable, the handle is centralized, the operation is convenient and labor-saving, anditis easy to realize automatic control. The chassis support wheels, guide wheels, and drag wheels adopt roller bearings, and they are regularly lubricatec withgrease, which avoids maintenance during use.
Specification
1.2T Crawler Dumper
|
Model
|
1.2T Crawler Dumper
|
|
Vehicle Size
|
2450*970
|
|
Bucket Size
|
1350*950
|
|
Chassis Width
|
850
|
|
Engine Power
|
12 HP
|
|
Dumping Method
|
hydraulic dump
|
|
Crawler Model
|
V230*72*46
|
|
Start Method
|
Electric start
|
|
Rated Load
|
1.2T
|
|
Engine Model
|
Changchai 188 air-cooled
|
|
Crawler System
|
Engineering rubber track
|
|
Vehicle Weight
|
590kg
|
|
Drive Mode
|
Diesel engine (air-cooled)
|
|
Gear
|
3F/1R
|
|
Slope Angle
|
35°
|
|
Gradeability
|
40°
|
|
Walking speed
|
0.8-12km/h
|
0.8T Crawler Dumper
|
Model
|
0.8T Crawler Dumper
|
|
Vehicle Size
|
2000*780
|
|
Bucket Size
|
1200*780
|
|
Chassis Width
|
620
|
|
Engine Power
|
10 HP
|
|
Dumping Method
|
Hydraulic Dump
|
|
Crawler Model
|
SC180*72*38
|
|
Start Method
|
Electric Start
|
|
Rated Load
|
0.8T
|
|
Engine Model
|
Changchai 186 air-cooled
|
|
Crawler System
|
Engineering rubber track
|
|
Vehicle Weight
|
460kg
|
|
Drive Mode
|
Diesel Engine (air-cooled)
|
|
Gear
|
3F/1R
|
|
Slope Angle
|
35°
|
|
Gradeability
|
40°
|
|
Walking speed
|
0.8-12km/h
|
1.5T Crawler Dumper
|
Model
|
1.5T Crawler Dumper
|
|
Vehicle Size
|
2550*1050
|
|
Bucket Size
|
1400*1050
|
|
Chassis Width
|
1040
|
|
Engine Power
|
12 HP
|
|
Dumping Method
|
hydraulic dump
|
|
Crawler Model
|
V230*72*46
|
|
Start Method
|
Electric start
|
|
Rated Load
|
1.5T
|
|
Engine Model
|
Changchai 192 air-cooled
|
|
Crawler System
|
Engineering rubber track
|
|
Vehicle Weight
|
630kg
|
|
Drive Mode
|
Diesel engine (air-cooled)
|
|
Gear
|
3F/1R
|
|
Slope Angle
|
35°
|
|
Gradeability
|
40°
|
|
Walking speed
|
0.8-12km/h
|
