Glear and bright spots,
high precision in long distance
Shell Mini size , saving mounting space
Industrial grade laser module, long service life
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
0.02 KG
-
Product name:
-
8mm 650mw 5mw dot laser module
-
Shell Material:
-
Aluminum
-
Model:
-
CW
-
Output power:
-
<5mw(2.5-3.5MW)
-
SIze:
-
8x18mm
-
Operating Voltage(DC):
-
2.8-3.5V
-
Lens:
-
PMMA lens
-
Operating Temperature:
-
-10℃~ +40℃
-
Drive Type:
-
APC
-
Service Life:
-
>8000H
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
PMMA lens, Aluminum alloy shell
-
Brand Name:
-
MZLASER
-
Weight (KG):
-
0.02 KG
-
Product name:
-
8mm 650mw 5mw dot laser module
-
Shell Material:
-
Aluminum
-
Model:
-
CW
-
Output power:
-
<5mw(2.5-3.5MW)
-
SIze:
-
8x18mm
-
Operating Voltage(DC):
-
2.8-3.5V
-
Lens:
-
PMMA lens
-
Operating Temperature:
-
-10℃~ +40℃
-
Drive Type:
-
APC
-
Service Life:
-
>8000H
Products Description

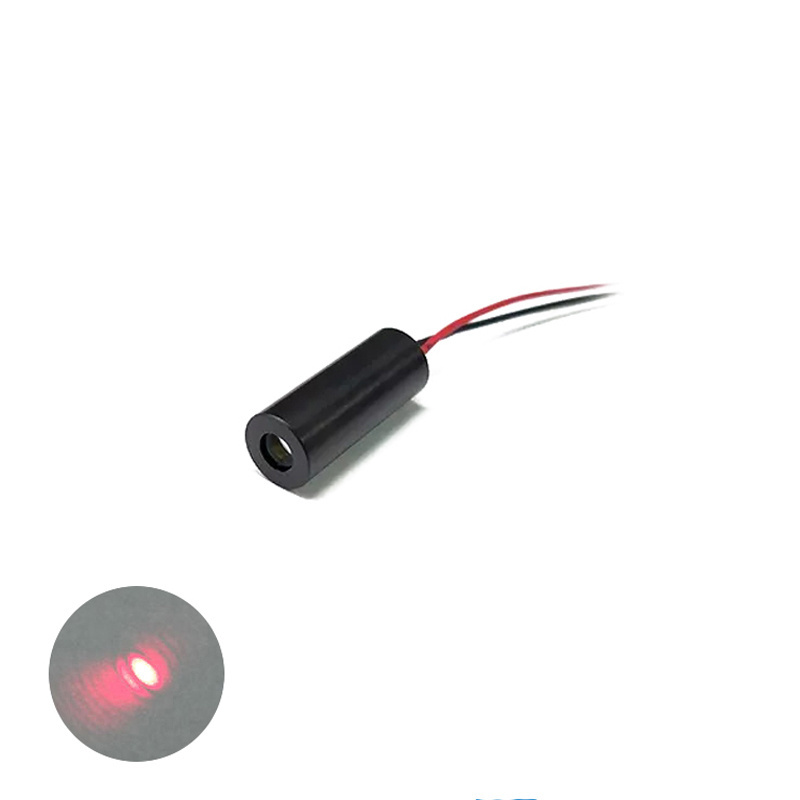

8mm 650nm 5mw Dot laser module
|
Laser Module
|
|
|
|
|
||||
|
Specifications(T=25℃)
|
|
|
|
|
||||
|
Model
|
|
MZS836505D
|
|
|
||||
|
Shape Parameter
|
|
|
|
|
||||
|
Shell Material
|
|
Aluminum
|
|
|
||||
|
Overall Dimensions
|
|
φ8×18mm
|
|
|
||||
|
Lead Length
|
|
150mm
|
|
|
||||
|
Optical Parameters
|
|
|
|
|
||||
|
Wavelength
|
|
650nm
|
|
|
||||
|
Spot Size
|
|
﹤10x12mm at 10m
|
|
|
||||
|
Divergence Angle
|
|
﹤0.8mrad
|
|
|
||||
|
Lens material
|
|
PMMA lens
|
|
|
||||
|
Output Power
|
|
﹤5mw(2.0-3.5mw)
|
|
|
||||
|
Laser Safety
|
|
Class Ⅲa
|
|
|
||||
|
Environmental parameters
|
|
|
|
|
||||
|
Operating Temperature
|
|
-10℃~ +40℃
|
|
|
||||
|
Storage Temperature
|
|
-40℃~ +80℃
|
|
|
||||
|
Power Stability
|
|
﹤8%
|
|
|
||||
|
Wavelength Drift(nm/ºC）
|
|
0.25nm
|
|
|
||||
|
Electronic parameters
|
|
|
|
|
||||
|
Circuit Model
|
|
CW
|
|
|
||||
|
Operating Voltage
|
|
2.8-3.5V
|
|
|
||||
|
Operating Current
|
|
﹤50MA
|
|
|
||||
|
Drive Type
|
|
APC
|
|
|
||||
|
Service Life
|
|
﹥8000H
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Mechanical Dimension
Spot size Define
