Quick Details
-
Brand Name:
-
THE NILE
-
Product name:
-
High pressure roller mill
-
Certificate:
-
ISO CE
-
Power:
-
37kw
-
Capacity:
-
2.1-6.5t/h
-
Color:
-
Customer's Request
-
Function:
-
grinding
-
Advantage:
-
High Efficiency Low Energy
-
Type:
-
High pressure roller mill
-
Price:
-
Competetive (can Discuss
-
Material:
-
Carbon Steel
Quick Details
-
Weight (KG):
-
1700
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
THE NILE
-
Product name:
-
High pressure roller mill
-
Certificate:
-
ISO CE
-
Power:
-
37kw
-
Capacity:
-
2.1-6.5t/h
-
Color:
-
Customer's Request
-
Function:
-
grinding
-
Advantage:
-
High Efficiency Low Energy
-
Type:
-
High pressure roller mill
-
Price:
-
Competetive (can Discuss
-
Material:
-
Carbon Steel

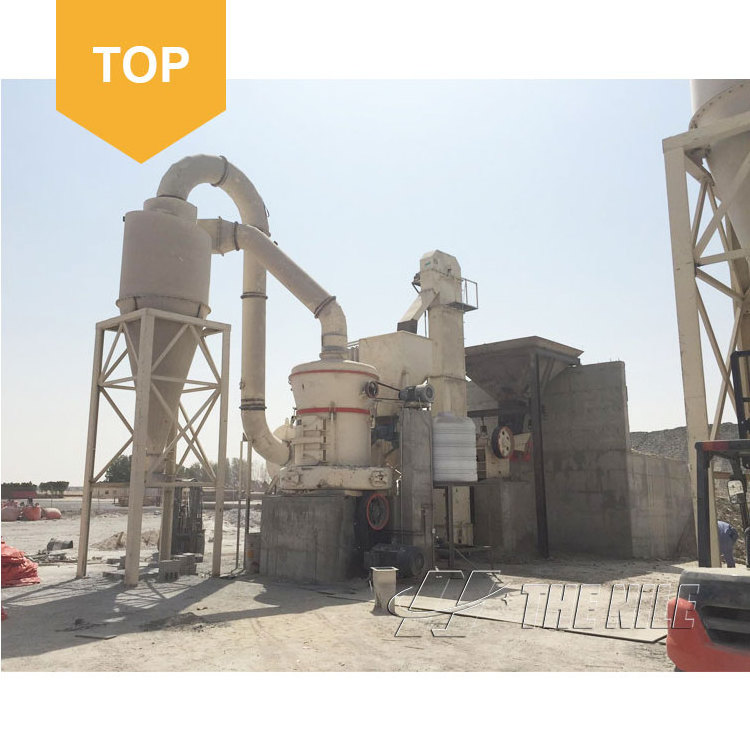

High pressure roller Mill
is suitable for producing minerals powder, which is widely used in the fields of metallurgy, building materials, chemical, and mining industry.
Product Description
Process Material
1. Mohs hardness degree is below 7 , humidity is in 6% ,non-flammable and non-explosive minerals2. Barite, Calcite, Potash Feldspar, Talcum, Marble, Limestone, Ceram , Dolomite, Carbonate, Gypsum, Slag
3. Final product size is adjustable as required in the range of 40-400 meshes
1. Mohs hardness degree is below 7 , humidity is in 6% ,non-flammable and non-explosive minerals2. Barite, Calcite, Potash Feldspar, Talcum, Marble, Limestone, Ceram , Dolomite, Carbonate, Gypsum, Slag
3. Final product size is adjustable as required in the range of 40-400 meshes
Features
1.Three-dimensional structure , land-saving
1.Three-dimensional structure , land-saving
2.The screen-passing rate can reach to 99%
3.The transmission is steady and reliable
4.Centralized control for the electric system, convenient to operate
4.Centralized control for the electric system, convenient to operate
Application
Technical Data
|
Model
|
Roller Number
(pcs) |
Roller Size
(mm) |
Inner Diameter & Height (mm)
|
Max.Feed
Size(mm) |
Final Size
(mm) |
Capacity
(t/h) |
|
3R1510
|
3
|
150*100
|
570*100
|
15
|
0.2-0.044
|
0.3-1.2
|
|
3R2115
|
3
|
210*150
|
630*150
|
15
|
0.2-0.044
|
0.4-1.6
|
|
3R2615
|
3
|
260*150
|
780*150
|
20
|
0.2-0.044
|
0.8-2.5
|
|
3R2715
|
3
|
270*150
|
830*150
|
20
|
0.2-0.044
|
0.9-2.8
|
|
3R3015
|
3
|
300*150
|
875*150
|
20
|
0.2-0.044
|
1.2-3.5
|
|
4R3016
|
4
|
300*160
|
890*160
|
20
|
0.2-0.044
|
1.2-4
|
|
4R3216
|
4
|
320*160
|
970*160
|
25
|
0.2-0.044
|
1.8-4.5
|
|
5R4121
|
5
|
410*210
|
1280*210
|
30
|
0.2-0.044
|
3-9.5
|
