Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V (Option: 220V)
-
Dimension(L*W*H):
-
3200x2140x1850MM
-
Weight (KG):
-
1400
-
Application:
-
Small business and beginners
-
Feature:
-
Easy to learn & operate
-
Spindle Power:
-
3kw water cooling spindle
-
Drive Motors:
-
leadshine Drive Motors
-
Operating System:
-
weihong control system
-
Inverter:
-
chinese Inverter
-
Working area:
-
1300x2500x200mm
-
Product name:
-
1325 cnc wood machinery for engraving mdf and chipboard
-
Table Surface:
-
T-slot Table
-
Software:
-
Artcam
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V (Option: 220V)
-
Dimension(L*W*H):
-
3200x2140x1850MM
-
Weight (KG):
-
1400
-
Application:
-
Small business and beginners
-
Feature:
-
Easy to learn & operate
-
Spindle Power:
-
3kw water cooling spindle
-
Drive Motors:
-
leadshine Drive Motors
-
Operating System:
-
weihong control system
-
Inverter:
-
chinese Inverter
-
Working area:
-
1300x2500x200mm
-
Product name:
-
1325 cnc wood machinery for engraving mdf and chipboard
-
Table Surface:
-
T-slot Table
-
Software:
-
Artcam
Features:

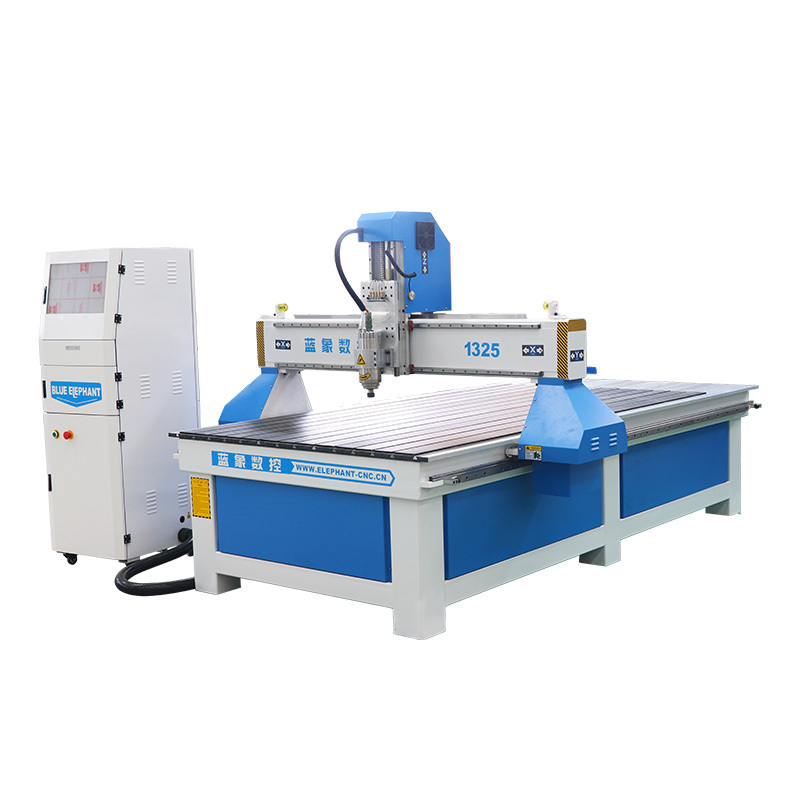

4x8 CNC Router, 1325 CNC Router for Sale at best price, this is an Entry-level CNC, affordable, durable and powerful, easy to learn & operate, it is a top choice for small business and beginners.
Technical parameters
|
Description |
Parameter |
|
Working Area |
1300x2500x200mm |
|
Table Surface |
T-slot Table |
|
Spindle |
3kw water cooling spindle |
|
X, Y Structure |
Taiwan PMI or ABBA 20#Linear guide |
|
Z Structure |
Taiwan TBI ball screw Transmission |
|
Motor and driver |
leadshine driver |
|
Spindle Speed |
0-24000RPM |
|
Inverter |
chinese Inverter |
|
Command Language |
G Code |
|
Computer Interface |
USB |
|
X,Y Resolution |
<0.01mm |
|
Running Environment Temperature |
0 - 45 Centigrade |
|
Relative Humidity |
30% - 75% |
|
Lubrication system |
Oil Lubrication System |
|
Voltage |
380V,3phase,50HZ |
PS: All the working area and specifications can be customized according to your requests.
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
