Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
iUwon
-
Model Number:
-
YX38-225
-
Power:
-
5.5 Kw
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
7500*1700*1600Mm
-
Weight:
-
6.5T
-
Warranty:
-
12 Months
-
Certification:
-
CE
-
Raw Material:
-
Cold rolled steel strip/Hot galvanized steel strip
-
Thickness:
-
1.5-2.0mm
-
Coil ID:
-
508mm
-
Roller Quantity:
-
18 Stations
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
0-15m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
iUwon
-
Model Number:
-
YX38-225
-
Power:
-
5.5 Kw
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
7500*1700*1600Mm
-
Weight:
-
6.5T
-
Warranty:
-
12 Months
-
Certification:
-
CE
-
Raw Material:
-
Cold rolled steel strip/Hot galvanized steel strip
-
Thickness:
-
1.5-2.0mm
-
Coil ID:
-
508mm
-
Roller Quantity:
-
18 Stations

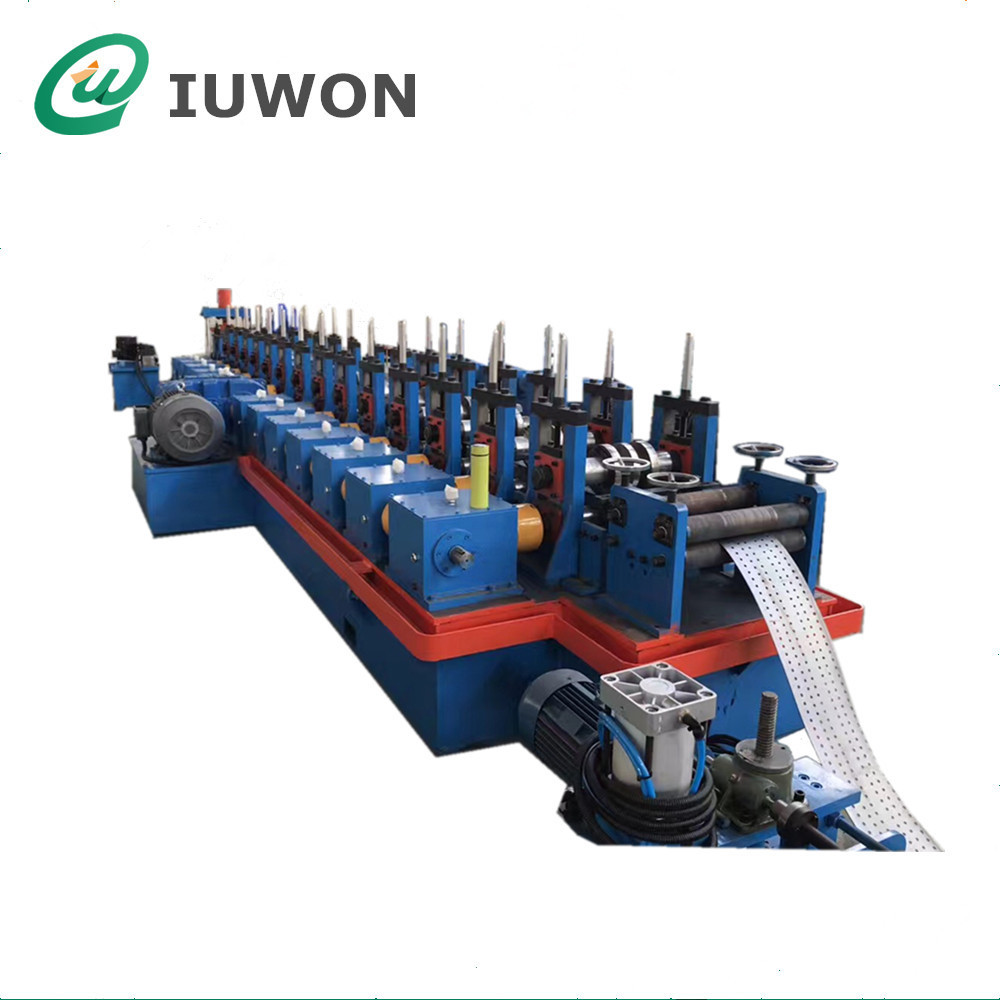

Full Automatic Scaffold Pedal Panel Roll Forming Machine
Work Flow
3T Manual Uncoiler→Leveling →Servo Feeding→Punching→Forming→Cutting→Output
Technical Parameter
| Raw Material | Type | Cold rolled steel strip/Hot galvanized steel strip |
| Thickness | 1.5-2.0mm | |
| Width | Depend on profile drawing | |
| Coil ID | φ508mm | |
| Roller Quantity | 18 Stations | |
Profile Drawing
Layout Drawing
Installation (optional by the buyer)
a. After the machine arrives at the destination, the seller will send technician to the buyer’s factory to install the machine if the buyer wants. The buyer needs provide some technicians to assist the installation work.
b. Installation period(The buyer should have been prepared for the steel sheet, foundation position the machine before seller’s technicians departure): 5 days
c. The buyer pays the installation charges to the seller’s appointed account before the technician departure: USD1,000 per set.
d. Training period: 2 days. (we can supply training on the operation spot if buyer needs)
e. The buyer pays the seller’s technician: Travel cost outside China (including round flight charges), accommodation and foods (at least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
f. With in 3 months after arrival of the goods at the port of destination, if there is no installment requirement from the Buyers, the goods should be counted as up to standard. Inspection standard is based on the technical standard signed by both parties and our company standard.
Terms of Payment
30% to be paid by TT as Down Payment,70% to be paid by TT before delivery.
Time of Shipment
90 days after down payment(Including Chinese New Year Holiday for 20 Days)
Guarantee of Quality
The Seller shall guarantee the goods with materials and workmanship in accordance with the required on the drawings, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in drawings and guarantee a good smooth operation for 12 months after date of shipment (except consumables). This guarantee excludes the parts that require the normal plant maintenance. The guarantee is strictly limited to the repairing and the replacing of the mechanical parts supplied by us found to be defective provided that failure has occurred during the ordinary use of the equipment and it is not accepted and claim due to damage to people, property or loss of production.
