Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZHONGTUO
-
Voltage:
-
380V50HZ Three-phase or you need
-
Power:
-
11-15kw
-
Dimension(L*W*H):
-
6800mm*800mm*1200mm
-
Weight:
-
6.5 kg
-
Warranty:
-
one year
-
Material of axis:
-
45#steel
-
Number:
-
3 up,4 down
-
Diameter of axis:
-
100mm
-
Frame:
-
400 H steel
-
Drive mode:
-
differential gear
-
Main axle material:
-
GR15
-
Diameter of shafts:
-
80mm
-
Number of rollers:
-
12-16 rollers
-
Adjustment method:
-
Half seams type Looper
-
speed:
-
8-15m/min
Quick Details
-
Marketing Type:
-
Hot Product 2020
-
Work Pressure:
-
350-550MPA
-
Production Capacity:
-
8-15M/MIN
-
Place of Origin:
-
China
-
Brand Name:
-
ZHONGTUO
-
Voltage:
-
380V50HZ Three-phase or you need
-
Power:
-
11-15kw
-
Dimension(L*W*H):
-
6800mm*800mm*1200mm
-
Weight:
-
6.5 kg
-
Warranty:
-
one year
-
Material of axis:
-
45#steel
-
Number:
-
3 up,4 down
-
Diameter of axis:
-
100mm
-
Frame:
-
400 H steel
-
Drive mode:
-
differential gear
-
Main axle material:
-
GR15
-
Diameter of shafts:
-
80mm
-
Number of rollers:
-
12-16 rollers
-
Adjustment method:
-
Half seams type Looper
-
speed:
-
8-15m/min

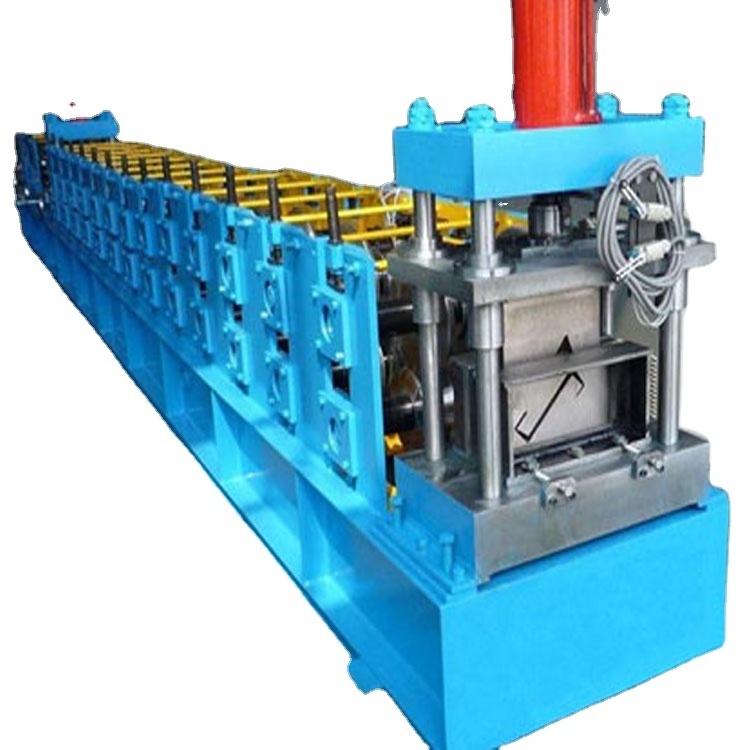

C Z purlin interchangeable roll forming machine
This C Z purlin roll forming machine is for making the C Z metal purlin for making the house or villa frame.
here the finished products application for your reference.
|
Model No. |
parameter |
|
coil thickness |
2.0-3.0 mm |
|
Co il material |
Q215 Q235 Q345 or other |
|
The bearing capacity of manual decoiler |
5 tons |
|
shaft material |
4 5 #steel |
|
Out diameter |
8 0mm |
|
numbers of forming steps |
12-16 stations |
|
transmission |
chain transmission |
|
F rame |
400 H steel |
|
Forming speed |
8 -15 m/min |
|
main motor power |
11-15 kw |
|
voltage |
380V50HZ Three-phase or you need |
|
dimension |
6800mm*800mm*1200mm |
|
cutting |
Hydraulic cutting |
|
C utting power |
5.5-7.5kw |
|
blade material |
Cr12 steel with quenched treated 60-62°c |
|
control system |
PLC |
|
length tolerance |
± 1.5 mm |
|
spare parts |
easy da maged parts:conk 2pcs, fuse-link 4pcs rubber mat: 1 pcs bolt spanner: 1 pcs |
|
The whole line including: Hydraulic decoiler, roll forming machine, cutting part PLC control system, run-out table. |
|
Details showing
