Quick Details
-
Product Type:
-
rubber cable protector
-
Size:
-
1000*300*50mm
-
Channel Width:
-
35mm
-
Channel Height:
-
30mm
-
Weight:
-
8.0KG/pc
-
Ramp Material:
-
Rubber
-
Flap Material:
-
PVC
-
Hinge Pin Material:
-
Reinforced Steel Bar
-
Max Load:
-
5000kgs per tire.
-
Color:
-
Yellow flap, black ramp.
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
9F
-
Model Number:
-
JFCP-R03A
-
Product Type:
-
rubber cable protector
-
Size:
-
1000*300*50mm
-
Channel Width:
-
35mm
-
Channel Height:
-
30mm
-
Weight:
-
8.0KG/pc
-
Ramp Material:
-
Rubber
-
Flap Material:
-
PVC
-
Hinge Pin Material:
-
Reinforced Steel Bar
-
Max Load:
-
5000kgs per tire.
-
Color:
-
Yellow flap, black ramp.
3-channel heavy duty cord protector cable cover rubber cable protector
Heavy duty cord protector cable cover rubber cable protector
1. Factory direct sale, most competitive price.
2. Many stocks assure fast delivery time.
2. Many years experience, knowledgeable team assure professional service.
3. Strict quality control system.

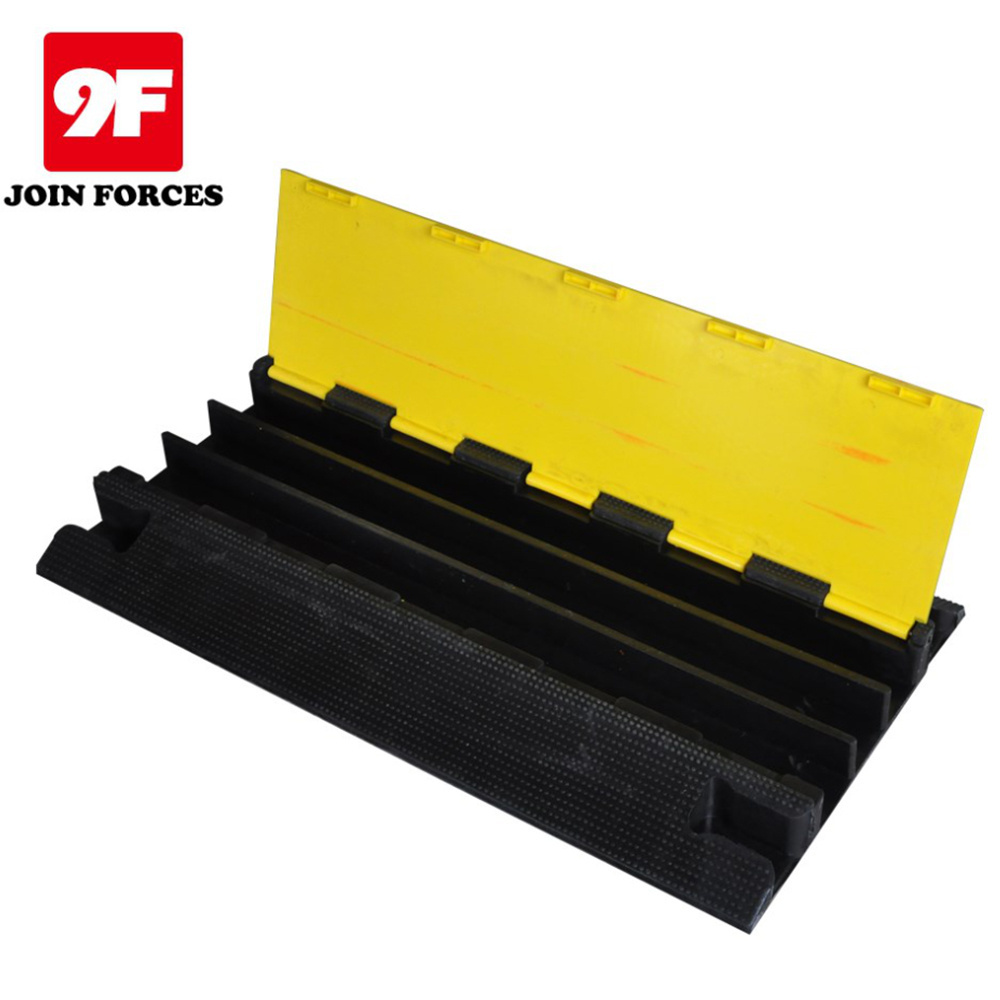

3-channel heavy duty cord protector, cable cover, rubber cable protector
These heavy duty rubber cable protectors have multiple channels for the protection of a large number of wires. Hinged lid allows for top loading of cables for convenience. Made of recycled rubber it is suitable for use outdoors and indoors in most weather conditions. The black body color with a yellow lid is highly visible. These units will protect your cables from vehicles of up to 18,000 pounds per axle. Due to the heavy nature of this cable protector, it tends to stay where you put it. Operating temperature range is -40 to +130 °F.
| SPECIFICATIONS | ||
|
Model | JFCP-R03A |
| Product Type | Rubber Cable Protector | |
| Size | 1000*300*50mm | |
| Channel Width | 35mm | |
| Channel Height | 30mm | |
| Weight | 8.0kg/pc | |
| Ramp Material | Rubber | |
| Flap Material | PVC | |
| Hinge Pin Material | Reinforced Steel Bar | |
| Max Load | 5000kgs per tire | |
| Color | Yellow flap, Black ramp | |
| Operating Temperature | -40~+60 C | |
Rubber cable protector features:
• Protects multiple cables from pedestrian, car and truck traffic
• Heavy duty construction designed for use in commercial, industrial or residential settings
• Made of heavy duty, recycled rubber
• Top hinged lid for easy access to install cables
• For indoor or outdoor use
• High visibility black body with yellow lid
• Connectors allow units to be ganged together for modular expansion
| Picture | Description | Model | Porduct Size | Channel Size(H*W) | Weight |
|
5-Channel | JFCP-R05 | 900*500*50mm | 30*40mm |
13.0kg
|
|
5-Channel | JFCP-R05N | 910*500*50MM | 35*35MM |
13.0kg |
| 4-Channel | JFCP-R04 | 900*500*60mm | 40*45mm | 14.0kg | |
| 3-Channel | JFCP-R03A | 1000*300*50mm | 30*35mm | 8.0kg | |
| 3-Channel | JFCP-R03B | 900*500*70mm | 55*65mm | 14.5.0kg | |
| 3-Channel | JFCP-R03N | 910*550*80mm | 65*60mm | 18.0kg | |
| 2-Channel | JFCP-R02A | 1000*250*50mm | 30*32mm | 6.5kg | |
| 2-Channel | JFCP-R02B | 1000*450*70mm | 50*55mm | 13.0kg | |
| 2-Channel | JFCP-R02C | 900*580*90mm | 70*95mm | 20.0kg | |
| 2-Channel | JFCP-R02N | 900*600*100mm | 90*90mm | 25.0kg | |
| 1-Channel | JFCP-R01A | 1000*220*30mm | 20*70mm | 4.5kg | |
| 1-Channel | JFCP-R01B | 1000*260*70mm | 50*70mm | 8.5kg | |
| 1-Channel | JFCP-R01C | 1000*580*120mm | 110*125mm | 22.0kg | |
| 1-Channel | JFCP-R01N | 1000*500*100mm | 80*80mm | 21.0kg |
