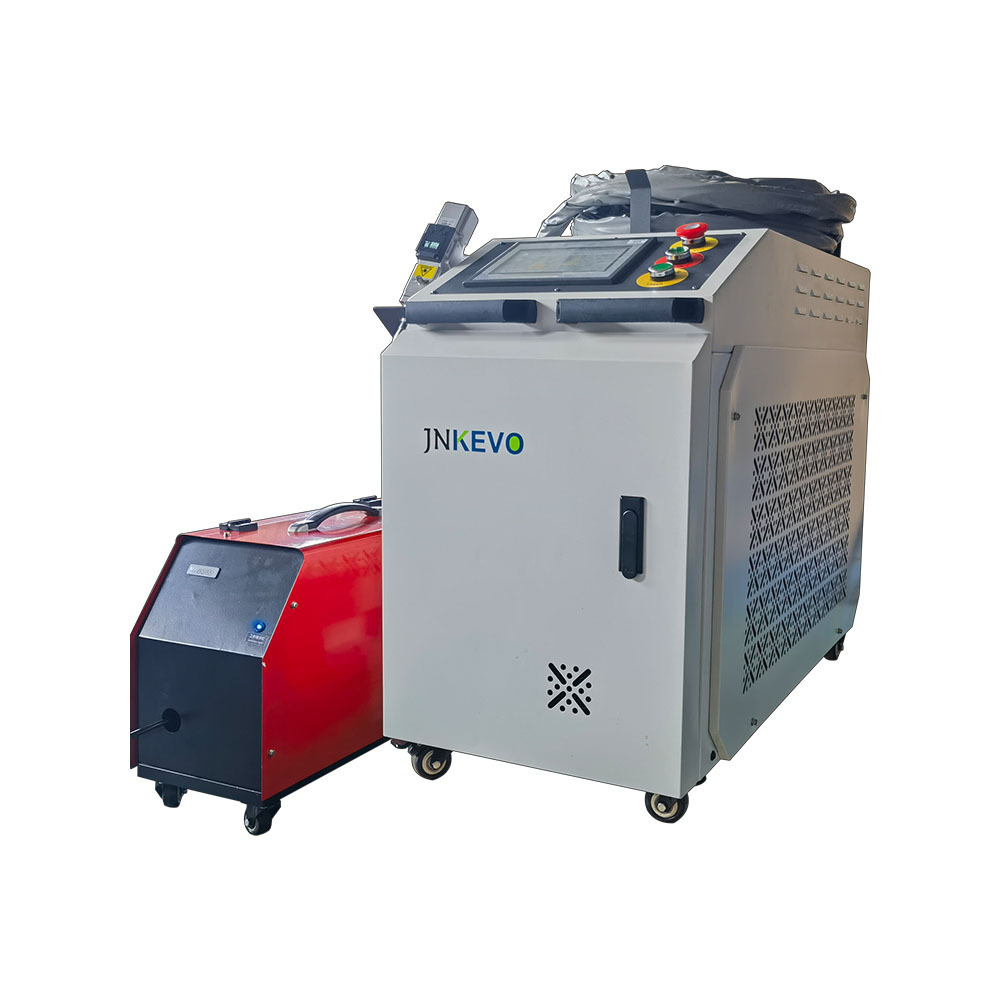

JNKEVO laser cut stainless steel welding products small handheld laser cutter welding machine price for metal with raycus ipg

JNKEVO laser cut stainless steel welding products small handheld laser cutter welding machine price for metal with raycus ipg

FOB Reference Price: Get Latest Price

≥1 Sets

US $2900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: JNKEVO

Single Pulse Energy:: 80J/100J/120J/150J(Customized)

Pulse Width:: 0.1-20ms

Wavelength:: 1080nm

Focal Spot Diameter:: 0.6-3mm

Dimensions:: 1000x500x800mm

Weight (KG):: 160 KG

Core Components:: Laser Generator

Product Name:: welding products small handheld laser cutter welding machine

Laser power:: 1000W 1500W 2000W 3000W optional

Laser source:: IPG Raycus Max JPT Reci optional

Laser head:: Au3tech/SUP Gefasst/Relfar/Qilin optional

Welding thickness:: 0.5-8mm

Cooling system:: Water Chiller Hanli or S&A

Power supply:: 110V/220V/380V 50Hz/60Hz customized

Function:: Metal Welding Service

Welding mode:: Manual Handheld

Application material:: Metal Stainless Steel Aluminum

Quick Details

Max. Output Power:: 3000W

Usage:: Metal Material Welding

Laser Source Brand:: RAYCUS

Place of Origin:: Shandong, China

Brand Name:: JNKEVO

Single Pulse Energy:: 80J/100J/120J/150J(Customized)

Pulse Width:: 0.1-20ms

Wavelength:: 1080nm

Focal Spot Diameter:: 0.6-3mm

Dimensions:: 1000x500x800mm

Weight (KG):: 160 KG

Core Components:: Laser Generator

Product Name:: welding products small handheld laser cutter welding machine

Laser power:: 1000W 1500W 2000W 3000W optional

Laser source:: IPG Raycus Max JPT Reci optional

Laser head:: Au3tech/SUP Gefasst/Relfar/Qilin optional

Welding thickness:: 0.5-8mm

Cooling system:: Water Chiller Hanli or S&A

Power supply:: 110V/220V/380V 50Hz/60Hz customized

Function:: Metal Welding Service

Welding mode:: Manual Handheld

Application material:: Metal Stainless Steel Aluminum

Product Features

3 In 1

Handheld

Laser Cutting Welding Cleaning Machine

| | |

Manufacturer Supply

Adequate Inventory

Timely Delivery

Product Details

Handheld Laser

Welding | Cutting | Cleaning Machine

Small and beautiful

Easy to move

--------

Stable performance, Push-pull handle

Universal casters, Easy to operate

Handheld Handle Equipped Remote Operation

Cleaning, welding and cutting head, easy to operate.

Remote Operation On The Handle

Parameters can be modified directly on the handle to improve work efficiency.

Control System

Various parameters and operating modes can be easily adjusted.

Brand Laser Generator

IPG, JPT, MAX, Raycus, Reci laser generator can be customized.

Hanli Water Chiller

Strong refrigeration Hanli water chiller.

Automatic Wire Feeder

Automatic wire feeder, can equip various diameter wire .

Laser Welding Head

Handheld laser welding for metal sheet and plate

Laser Cutting Head

Handheld laser cutting metal sheet

Laser Cleaning Head

Laser rust removal, clean rust , paint etc

Intelligent Control Panel

Simple operation, lean easily
--------

Operation panel simplified settings

All information will show on the touch screen

when machine running, thus operate the

machine more easily by operator

Application

Handheld Laser Cleaning

Fiber laser rust remover is not only a laser rust removal tool, it also used for laser paint removal, laser degreasing, laser removal of oxide layer, laser cleaning screw, laser derusting, laser weld-cleaning.

Applied in shipbuilding industry, auto parts, rubber mold, high-end machine tools, tire mold, tracks, environmental protection industry and other industries.

Handheld Laser Cutting

In the process of welding or cleaning, for materials that need to be cut temporarily, you can quickly change the cutting mode and hand-held cutting, which is more convenient

Handheld Laser Welding

Hand-held laser welding is new type of welding, mainly for thin-walled materials, precision parts, direct spot welding, sealing welding, stacking etc

Application Industry: large aluminum alloy, cabinet, chassis, aluminum alloy door and window frame, stainless steel wash basin etc.

Parameters

Item	3 In 1 Portable Laser Cleaner Welder Cutter Parameters
Applied Materials	All metal and some nonmetal
Laser Type	Fiber laser
Laser Power	1000W, 1500W, 2000W, 3000W
Laser Generator	IPG, JPT, MAX, Raycus, Reci
Laser Head	Handheld Cleaning head, welding head, cutting head
Cleaning Width	40mm - 450mm ( depends on models )
Welding Width	0 - 8mm
Welding Penetration	1.5 - 4mm
Wire Feeder	Automatic wire feeder
Welding Wire	0.8mm, 1.0mm, 1.2mm, 1.6mm
Welding Capacity	Stainless steel: 4mm - 6mm Carbon steel: 4mm - 6mm Aluminum: 2mm - 4mm
Voltage	220V / 380V 50Hz
Wavelength	1075±5mm
Fiber Cable Length	10 meters ( 15m optional , customizable )
Cooling System	Hanli or S&A water chiller
Water Coolant	Pure water or distilled water
Pulse Laser Cleaning	In addition to rust removal, can clean most of the material surface, no damage to the material, can do paint cleaning, mold cleaning, etc., more suitable for precision cleaning etc.
The machine can be customized according to customer's requirements, please follow and contact us for details.

Options

Multiple Appearance Design

The versatile design is suitable for a variety of market preferences and a variety of working environments

Multiple Systems

Au3tech, Chaoqiang, Qilin and other operating systems for customers to choose.

Each system is equipped with a different handle and is customized according to customer requirements.

Band Laser Generator

Raycus, MAX, IPG, Reci and other brands of 1 kW to 3 kW qualified laser generator.

Water Chiller

S&A , Hanli brand water chiller has better cooling effect and more comfortable operation experience.

There is also a built-in water-cooled integrated machine for selection.

The machine can be customized according to customer's requirements, please follow and contact us for details.

Fiber Laser Cutting Machines

——

Metal sheet and tube cutting

Continuous Laser Clean & Weld Machines

——

Rust cleaning and some nonmetal cleaning

Pulsed Laser Cleaning Machines

——

Remove the resin, oil, stain, dirt, rust, coating, plating and paint etc

Co2 Laser Cutting & Engraving Machines

——

Nonmetal sheet cutting and engraving, as plywood,leather,MDF,acrylic etc

Laser Marking Machines

——

All metal and some nonmetal marking, ring, jewelry, jeans,name plate,logo marking etc

CNC Plasma Cutters

——

Plasma and flame cutting for steel plate and tube, thick carbon plate etc

Note

All the machines can be customized , please follow and contact us for more information !

FAQ

Warranty

3 years , and we offer a 24-hour online service.

Lead Time

Usually within 2 - 30 days after deposit, it depends on the product model.

Payment Term

1. Alibaba Trade Assurance ( recommended )

2. TT bank transfer, 30% deposit , 70% balance before shipment.
3. LC at sight, Please contact us to determine the details of the terms.

Mode of Payment

Visa, Mastercard, PAYPAL, APPLE_PAY, GOOGLE_PAY TT bank transfer etc

Supported Currencies

USD, EUR, AUD, GBP, CAD, HKD, JPY, SGD, CNY. Please contact us for other currencies.

Accurate Price

Our products can be customized according to customer's requirements ( working size, power needed etc ), and the package is also different depends on the quantity.

So it would be best to contact with us for your detail requirements , quantity, shipping address etc, so that we can quote accurately according to your requirements.

Whether The Product Meet Your Requirements

We can take a VIDEO according to your requirements , so you can see our product and test result.

MOQ

The MOQ for each product is 1 unit.

Customization

We can customize products based on customer's requirements.

Delivery To Door

The machine can be delivered to door in some countries. Please provide your detailed address, we will confirm and give you reply ASAP.

Please feel free to SEND INQUIRY NOW !
