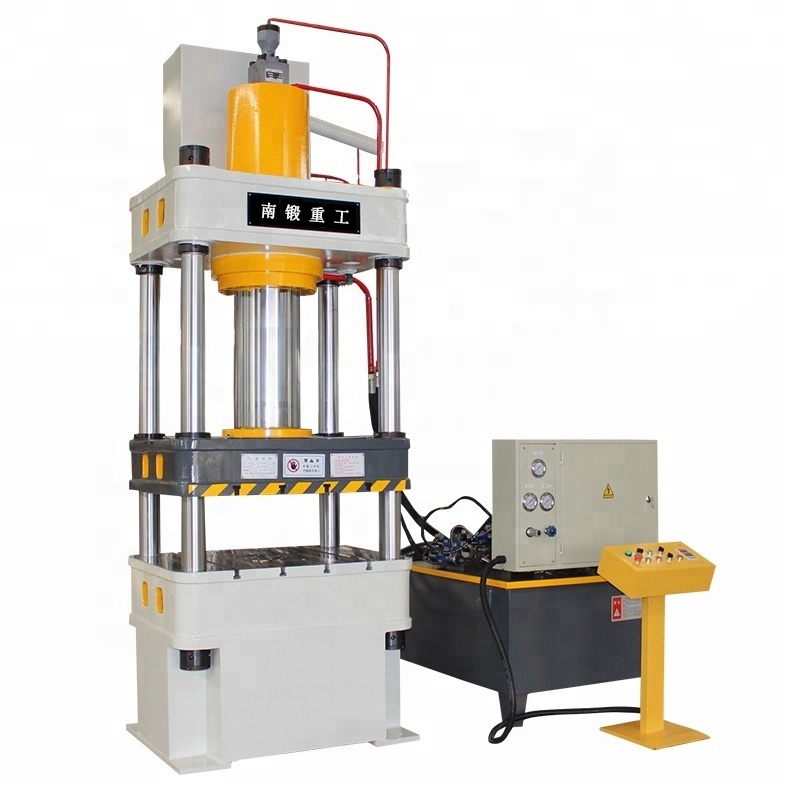

Metal Stamping Hydraulic Press Machinery 200 Ton Hydraulic Press Machine

Metal Stamping Hydraulic Press Machinery 200 ton

1, With foundry structure for better vibration resistance.

2, Adopt horizontally placed crankshaft , external gear is open and easy for maintenance.

3, The good rigidity of Casting box structure slider

4, Built-in block collapsed overload protection device, the structure is simple, if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage

5, Four elongated triangular rail, easy for adjustment.

6, Adopts hands and foot switch operation buttons design, it’s easy to activate continuous, single and adjustment practices.

7, Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.

25 ton/40 ton/63 ton/80 ton/100 ton/200 ton cnc punching machine can be provided.

Features

Hydraulic Punching Presses is one of the new generation of plate process machine. The press is for cutting, punching, blanking, bending and light stretching work .

1. J23 Series Presses is one of the new generation of plate process and developed by Nanjing YSDCNC Machinery Co., Ltd. ,The press is for cutting, punching, blanking, bending and light stretching work.
2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.
4. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

1.  Cnc punching machine series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.

2.  C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.

3.  The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.

4.  Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.

5.  Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.

6.  Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

7.  Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards.

8.  Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
