Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CANMAX
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1700*1100*1600mm
-
Weight:
-
880 KG
-
Method to press:
-
Hydraulic Press
-
Raw material:
-
Soybean,sesame,sunflower seeds,peanut,oil seeds,
-
Material:
-
316 Stainless Steel
-
Package:
-
Wooden Case
-
Product name:
-
Oli Press Machine
-
Application:
-
Edible Oil Production Line
-
Function:
-
Cold Press
-
Advantage:
-
Energy Saving
-
Certification:
-
CE ISO
Quick Details
-
Applicable Industries:
-
Oil factory
-
Usage:
-
multifunctional
-
Production Capacity:
-
100%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CANMAX
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1700*1100*1600mm
-
Weight:
-
880 KG
-
Method to press:
-
Hydraulic Press
-
Raw material:
-
Soybean,sesame,sunflower seeds,peanut,oil seeds,
-
Material:
-
316 Stainless Steel
-
Package:
-
Wooden Case
-
Product name:
-
Oli Press Machine
-
Application:
-
Edible Oil Production Line
-
Function:
-
Cold Press
-
Advantage:
-
Energy Saving
-
Certification:
-
CE ISO

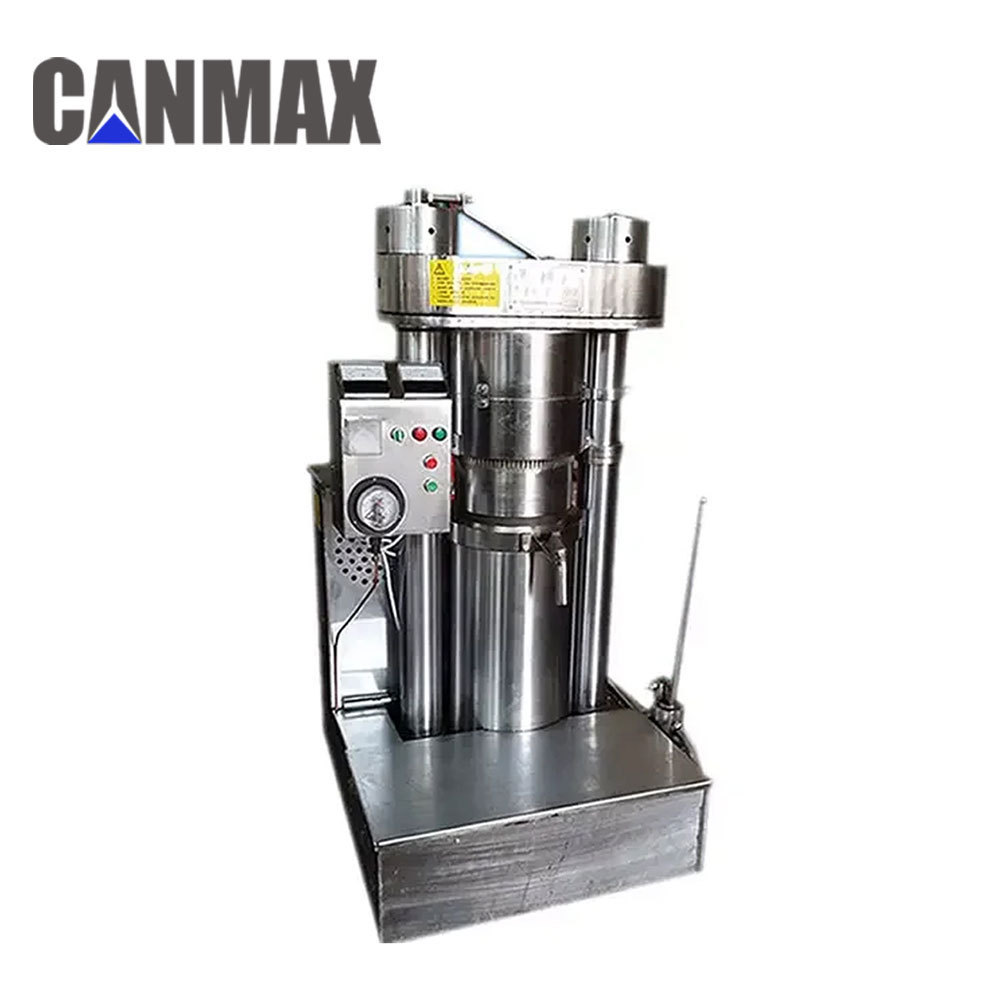

Oil press machine is to separate the oil from oil corps by the pressing power which comes from the big pressure created in press chamber by the hydraulic cylinder, the oil can be discharged from gap of press bars and press rings.
Features of oil press machine:
* Stainless steel machine base and national certified steel frame;
* Special oil pump structure make the pressing fast and with longer life-span;
* High Manganese alloy steel bars ;
* Vegetable oil seeds, soybeans, peanuts, cotton seeds, sesame seeds, palm kernel, coconut, etc
* Compact structure, stable function, simple operation and maintenance
* Special oil pump structure make the pressing fast and with longer life-span;
* High Manganese alloy steel bars ;
* Vegetable oil seeds, soybeans, peanuts, cotton seeds, sesame seeds, palm kernel, coconut, etc
* Compact structure, stable function, simple operation and maintenance
|
Model
|
Dimension (M)
|
Weight (KG)
|
Pressure (KN)
|
MPA
|
Heater Power (W)
|
Temp. (℃)
|
Volume (KG)
|
Capacity (KG/DAY)
|
Motor Power (KW)
|
|
YZ-150
|
0.7*0.8*0.78
|
240
KG
|
650KN
|
55-60
|
600W
|
50-70
|
2
|
300
|
0.75KW
|
|
YZ-180
|
0.8*0.9*1.05
|
550
KG
|
1600KN
|
55-60
|
720W
|
50-70
|
4
|
480
|
1.5KW
|
|
YZ-230
|
0.9*1*1.4
|
950
KG
|
2200KN
|
55-60
|
850W
|
50-70
|
8
|
960
|
1.5KW
|
|
YZ260
|
1.05*1.1*1.55
|
1200KG
|
2600KN
|
55-60
|
950W
|
50-70
|
12
|
1440
|
1.5KW
|
|
YZ-320
|
1.12*1.2*1.65
|
1700KG
|
3000KN
|
55-60
|
1100W
|
50-70
|
17.5
|
1680
|
2.2KW
|
|
YZ-360
|
1.2*1.2*1.68
|
2000KG
|
3600KN
|
55-60
|
1250W
|
50-70
|
22.5
|
2160
|
2.2KW
|
|
YZ-415
|
1.25*1.25*1.7
|
2200KG
|
4300KN
|
55-60
|
1500W
|
50-70
|
30
|
2880
|
2.2KW
|
|
YZ-460
|
1.5*1.5*2.15
|
3000KG
|
4800KN
|
55-60
|
2000W
|
50-70
|
45
|
4320
|
3.0KW
|
|
Oil Specs
|
|
|
|
|
|
|||||
|
Items
|
Oil Yield
Efficiency % |
Residual Oil Ratio
|
Condition
|
|
|
|||||
|
|
|
|
Impurity
|
Moisture
|
Acid Value
|
|||||
|
Sesame
|
>94%
|
<6%
|
<0.2
|
<0.2
|
<0.4
|
|||||
|
Peanut
|
>94%
|
<6%
|
<0.2
|
<0.2
|
<0.4
|
|||||
|
Rapeseed
|
>95%
|
<5%
|
<0.2
|
<0.2
|
<0.4
|
|||||
|
Soybean
|
>95%
|
<5%
|
<0.2
|
<0.2
|
<0.4
|
|||||
|
Cotton Seed
|
>95%
|
<5%
|
<0.2
|
<0.2
|
<0.4
|
|||||
productivity
Its productivity is so strong that it can produce 95 percent of the oil crops on the market. Whether it is peanuts, soybeans, rapeseed or other common oil crops, our oil presses are efficient and produce high-quality vegetable oil. His oil press adopts advanced technology and process, has excellent extraction capacity and high yield, and provides customers with reliable production solutions.
Easy operation
Our oil presses are equipped with a one-click start function, which allows the machine to start working with the press of a button. It is easy to start the oil pressing process without complicated setup and adjustment. You can easily adjust the press's parameters such as pressure, temperature and speed according to the characteristics of the oilseeds and your preferences to get the best results.
Customized service
Our oil presses can be customized to meet your requirements. Whether it is capacity, power, material or appearance style, we can
individually adjust and design according to your needs to ensure that the oil press fully meets your requirements. We can add
specific features and options to the oil press according to your production needs.
individually adjust and design according to your needs to ensure that the oil press fully meets your requirements. We can add
specific features and options to the oil press according to your production needs.
Professional program
We have professional programs for the production of olive oil, peanut oil, palm oil, sunflower oil, avocado oil, coconut oil.
