- Product Details
- {{item.text}}
Quick Details
-
Switch Time:
-
<1/30000s
-
Warranty:
-
1years
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
xunzhuo
-
Model Number:
-
xz-202
-
Power Supply:
-
Solar Cell& replacable Li- Batteries
-
Product Name:
-
Solar Auto Darkening Welding Helmet
-
Power Control:
-
Auto Matically
-
UV/IR Protection:
-
DIN16
-
Feature:
-
Long Life Time
-
Dark Shade:
-
DIN 9~13
-
Sensitivity Control:
-
High Stepless Adjustment
-
Light shade:
-
DIN4
-
Certification:
-
CE /ANSI Z87.1
-
Operate Temperature:
-
10 - 65 (14 -149 )
-
Application:
-
TIG MAG MIG
Quick Details
-
Dimension (L x W x H):
-
114*133*9mm
-
Cartridge Size:
-
114*133*9mm
-
Sensitivity:
-
stepless variable
-
Switch Time:
-
<1/30000s
-
Warranty:
-
1years
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
xunzhuo
-
Model Number:
-
xz-202
-
Power Supply:
-
Solar Cell& replacable Li- Batteries
-
Product Name:
-
Solar Auto Darkening Welding Helmet
-
Power Control:
-
Auto Matically
-
UV/IR Protection:
-
DIN16
-
Feature:
-
Long Life Time
-
Dark Shade:
-
DIN 9~13
-
Sensitivity Control:
-
High Stepless Adjustment
-
Light shade:
-
DIN4
-
Certification:
-
CE /ANSI Z87.1
-
Operate Temperature:
-
10 - 65 (14 -149 )
-
Application:
-
TIG MAG MIG

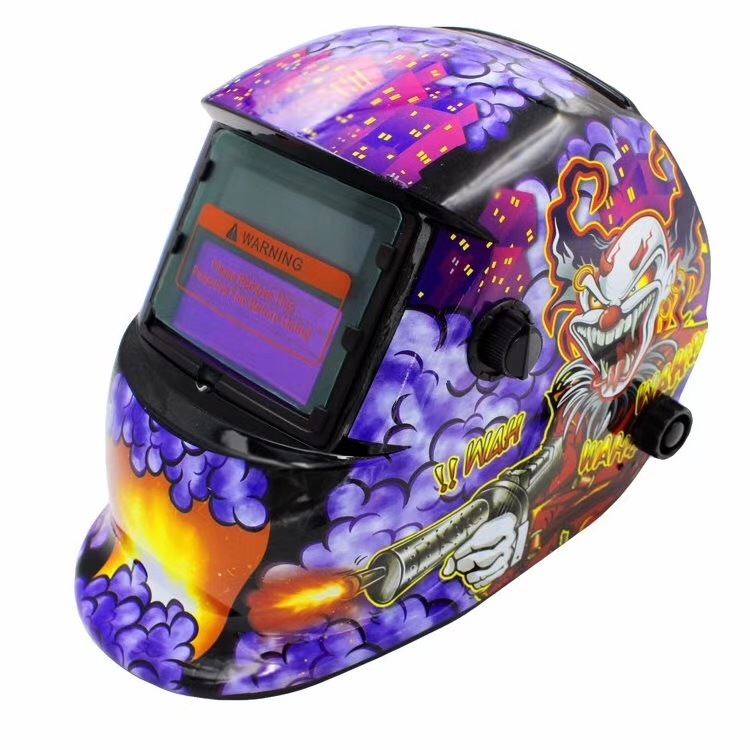

Name:Cheap safety Welding Mask, Auto Darkening Solar Powered Arc MIG Electronic Industrial Protection Best Welding Helmet
Description:
Auto-Darkening welding helmet are designed to protect the eyes and face from sparks, spatter, and harmful radiation under normal welding conditions. Auto-darkening Filter automatically changes from a clear state to a dark state when an arc is struck, and it returns to the clear state when welding stops. This LCD Automatic Welding Helmet with high quality is made from rugged and durable materials that ensure longevity and durability day in and day out. With the massive viewing area, it can allow you to see your weld from all perspectives, In addition, the helmet is used as a protective shield by not darkening while grinding.
Detail Specifications:
| Power supply | Solar cells,1 lithium button cells(CR2032) |
| Cartidge size | 110*90mm |
| Active viewing area | 93*43mm |
| Light state shade level | DIN4 |
| Dark state shade level | DIN9-13(Outerless control/stepless control) |
| Switching time |
Light to dark:1/10000s at room temperature
Dark to light time:0.1-0.8s(incuding lighting control function) |
| Sensor system | 2 sensors |
| Operating temp | -10ºC to 65ºC/14ºF to 149ºF |
| Material | pp |
| Weight | 475g |
| Total Weight | 745g |
| Size | 315*245*245mm |
Features:
- ULTIMATE EYE PROTECTION : Auto-darkening filter switches from light to dark in 1/25000 sec, in event of electric failure, the welder remains protecting against UV and IR radiation according to shade 16.1/2/1/2 rating meets ANSIZ87.1-2010 and EN3794/9-13 standards. A smart choice for safety.
- MANUAL ADJUSTMENT MEETS DIFFERENT DEMANDS : Equipped with sensitivity and delay settings for adaptability for different environments and task durations; Enjoy enhanced visibility and color recognition.Light level of filter is DIN4 and the time from dark to bright state within 0.1s to 1.0s .
- CLEAN COMFORTABLE VIEW : Equipped with standard 3.62’’ x 1.65’’ clear visor viewing area; Diffusion of light, variation of luminous transmittance and angular dependence allowing the welder to see clearly at different angles; Light weight (1 LB) suitable for long time working; Balanced with an adjustable and fatigue-free comfortable headgear.
- INTELLIGENT, PRACTICAL AND COST-EFFECTIVE : The Auto Darkening Filter (ADF DX-500S) enables welders to adapt to various working environments by controlling the shade of the lens; Sensitivity adjustments from ambient lighting sources; Battery powered with solar panel technology for longer life (up to 5000 hrs).
- GOOD FOR VARIOUS WORKING ENVIRONMENTS : Recommended to automotive, construction, and food & beverage manufacturing, metal production and fabrication, military maintenance, repair and operation (MRO), mining, oil and gas, transportation, etc.
More detail information:
Product show:
Our package and delivery:
12pcs/Carton
20pcs/Carton
Our factory:
Certificate:
Contact us:
