Quick Details
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
4800*2460*2500MM
-
Weight:
-
5500KG
-
Warranty:
-
one year
-
Certification:
-
CE UV ISO
-
Skid mounted compressor:
-
skid mounted
-
screw compressor:
-
screw
-
Electric motor compressor:
-
electric motor
-
mining compressor:
-
mining
-
quarry site compressor:
-
quarry site
-
blast hole compressor:
-
blast hole
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZEGA
-
Model Number:
-
260SDY-21/188SDY-17/406SDY-25
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
4800*2460*2500MM
-
Weight:
-
5500KG
-
Warranty:
-
one year
-
Certification:
-
CE UV ISO
-
Skid mounted compressor:
-
skid mounted
-
screw compressor:
-
screw
-
Electric motor compressor:
-
electric motor
-
mining compressor:
-
mining
-
quarry site compressor:
-
quarry site
-
blast hole compressor:
-
blast hole
SPE (original SDY) Electric Screw Air Compressors (Low, Medium, High pressure Series)
Product Features
01. Heavy duty SKF bearings, advanced single stage, or dual stage made for ZEGA oil injected air end.
02. Energy saving full series, class 2 energy efficiency, Extra Large air displacement,more cost saving.
03. Computerized automatic control and protection system.
04. Error free capacity control, unique ZEGA only electrical system with twice the operation range.
05. High quality heavy duty filtration system with safety filters.
Electric Portable Two Wheel Series

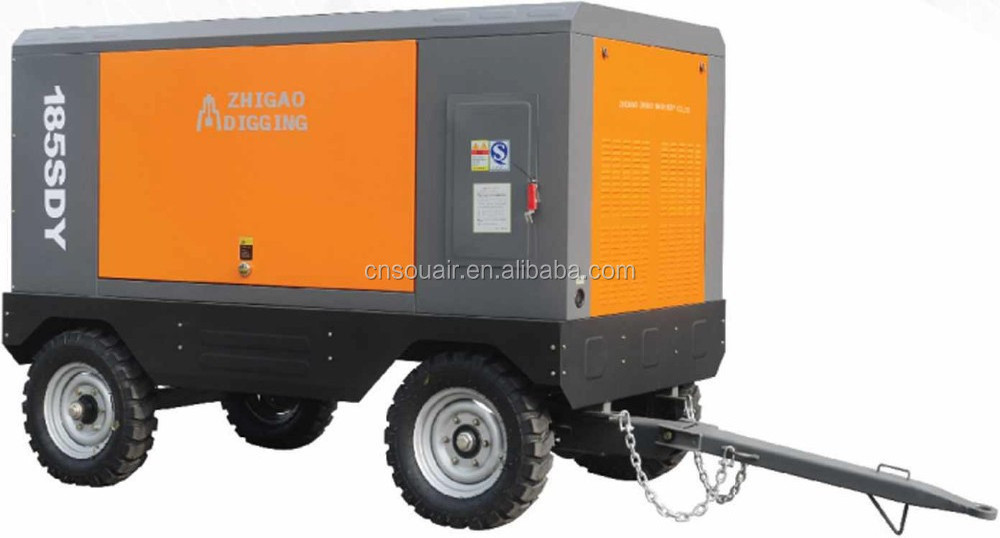

Electric Portable Four Wheel Series
Technical Specification
|
Model |
Nominal Pressure (Mpa) |
F.A.D(Free Air Delivery) (m3/min) |
Oil Content Sppm |
Motor Power kW ( HP ) |
Weight( n et excl.fuel) (kg) |
Dimensions(overall), LxWxH (mm) |
|
55SDY-8 |
0.8 |
10 |
< 5 |
55(75) |
1500 |
2810 x 1515 x 1970 |
|
75SDY-8 |
0.8 |
12 |
< 5 |
75(100) |
1956 |
2810x1515x1970 |
|
75SDY-10 |
1.0 |
10 |
< 5 |
75(100) |
1832 |
3080 x 1890 x 1818 |
|
75SDY-14.5 |
1.45 |
10 |
< 5 |
75(100) |
1952 |
3080 x 1890 x 1818 |
|
90SDY-8 |
0.8 |
16 |
< 5 |
90(120) |
2273 |
2810 x 1515 x 1970 |
|
90SDY-14.5 |
1.45 |
12.8 |
< 5 |
90(120) |
2112 |
3080 x 1890 x 1810 |
|
110SDY-8 |
0.8 |
20 |
< 5 |
110(150) |
3170 |
3190 x 1640x2110 |
|
132SDY-8 |
0.8 |
24 |
< 5 |
132(180) |
3175 |
3190 x 1640x2110 |
|
132SDY-13 |
1.3 |
17 |
< 5 |
132(220) |
3175 |
3190 x 1640x2110 |
|
160SDY-13 |
1.3 |
20 |
< 5 |
160(220) |
3398 |
3190 x 1640x2110 |
|
185SDY-13 |
1.3 |
21 |
< 5 |
185(250) |
3398 |
3190 x 1640x2110 |
|
185SDY-17 |
1.7 |
18 |
< 5 |
185(250) |
3398 |
3190 x 1640x2110 |
|
200SDY-21 |
2.1 |
23 |
< 5 |
200(270) |
4178 |
3300x1910x2330 |
|
250SDY-21 |
2.1 |
27 |
< 5 |
250(340) |
4000 |
3500 x 2000 x 2400 |
|
280SDY-21 |
2.1 |
30 |
< 5 |
280(380) |
4200 |
3500 x 2000 x 2400 |
