Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Industrial
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SS Group Steel formwork
-
Model Number:
-
MF-261 Steel formwork
-
Material:
-
Q235 Steel
-
Length:
-
600-1800mm
-
Width:
-
100mm-600mm
-
Thickness:
-
3mm
-
Height:
-
55mm
-
Color:
-
Red/ Blue
-
Accessories:
-
Screw/NUT/ U CLIP
-
Certificate:
-
SGS/ISO
-
Reusable times:
-
more than 300times
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Onsite Training
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Hotel
-
Design Style:
-
Industrial
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SS Group Steel formwork
-
Model Number:
-
MF-261 Steel formwork
-
Material:
-
Q235 Steel
-
Length:
-
600-1800mm
-
Width:
-
100mm-600mm
-
Thickness:
-
3mm
-
Height:
-
55mm
-
Color:
-
Red/ Blue
-
Accessories:
-
Screw/NUT/ U CLIP
-
Certificate:
-
SGS/ISO
-
Reusable times:
-
more than 300times

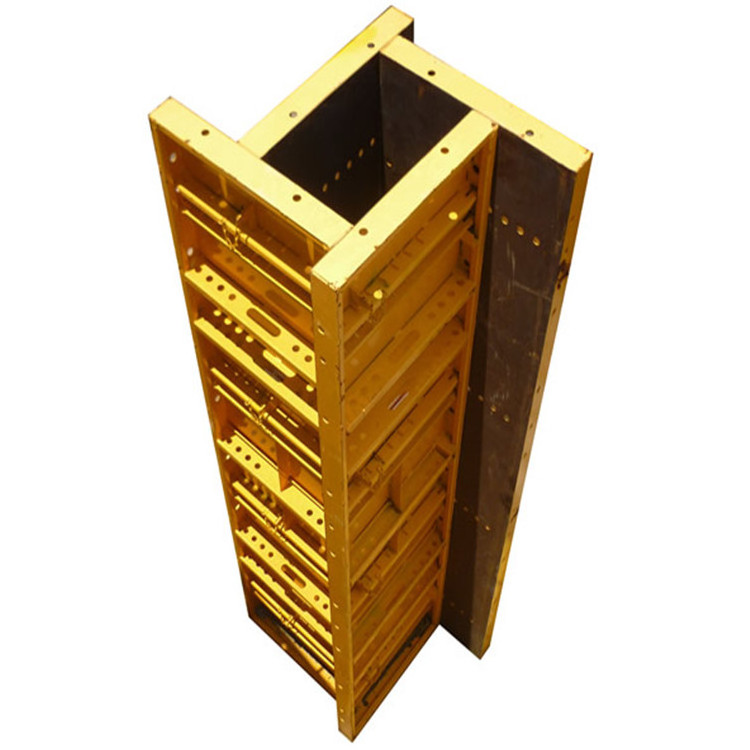

Tianjin Shisheng Group Best Price Wholesale Steel Square Concrete Column Formwork
Details of Concrete Metal Formwork/Steel Formwork
1.Concrete metal formwork is made of Q235 steel plate which is heavy/light duty formwork system for concrete wall, beam, slab and column.
2.There are some ribs in the middle of metal formwork which can strengthen the formwork more steady.
3.Coined edge can help to form a perfect concrete finish without bubbles.
4.Metal formwork is spray painted to against rustiness which can be reusable for many times.
5.Metal formwork is the all-round panel for many construction areas.
Application
Ideal for all big and small construction sites’ requirements
Metal Formwork F eatures:
- Strong build : to support heavy weight and high quality finish
- compatible : compatible to suit any flat surface architectural and structural features
- Reusable: can be re used up to 300 times
- Recyclable : can be 100% recyclable
| Flat steel concrete formwork | ||||||
| Code | Length(mm) | Width(mm) | Height(mm) | Thickness(mm) | Surface treat | Weight(kg) |
| FF1800-600 | 1800 | 600 | 50 | 3 | painted | 40.98 |
| FF1800-450 | 1800 | 450 | 50 | 3 | painted | 31.26 |
| FF1800-300 | 1800 | 300 | 50 | 3 | painted | 21.55 |
| FF1800-200 | 1800 | 200 | 50 | 3 | painted | 14.37 |
| FF1500-600 | 1500 | 600 | 50 | 3 | painted | 34.27 |
| FF1500-450 | 1500 | 450 | 50 | 3 | painted | 26.14 |
| FF1500-300 | 1500 | 300 | 50 | 3 | painted | 18.02 |
| FF1500-200 | 1500 | 200 | 50 | 3 | painted | 12.01 |
| FF1200-600 | 1200 | 600 | 50 | 3 | painted | 27.55 |
| FF1200-450 | 1200 | 450 | 50 | 3 | painted | 21.02 |
| FF1200-300 | 1200 | 300 | 50 | 3 | painted | 14.48 |
| FF1200-200 | 1200 | 200 | 50 | 3 | painted | 9.66 |
| Corner Angle concrete Formwork | |||||
| Code | Length(mm) | Flange height(mm) | Thickness(mm) | Surface treat | Weight(kg) |
| FC1800 | 1800 | 50*50 | 3 | painted | 4.45 |
| FC1500 | 1500 | 50*50 | 3 | painted | 3.71 |
| FC1200 | 1200 | 50*50 | 3 | painted | 2.9 7 |
| External Corner concrete Formwork | |||||
| Code | Length(mm) | Flange height(mm) | Thickness(mm) | Surface Treatment | Weight(kg) |
| FEX1800 | 1800 | 100*100 | 3 | painted | 16.35 |
| FEX1500 | 1500 | 100*100 | 3 | painted | 13.76 |
| FEX1200 | 1200 | 100*100 | 3 | painted | 11.17 |
| Internal Corner concrete Formwork | |||||
| Code | Length(mm) | Flange Height(mm) | Thickness(mm) | Surface Treatment(mm) | Weight(kg) |
| FIN1800 | 1800 | 100*100 | 3 | painted | 15.21 |
| FIN1500 | 1500 | 100*100 | 3 | painted | 12.76 |
| FIN1200 | 1200 | 100*100 | 3 | painted | 10.31 |
