Quick Details
-
Lift Speed:
-
6.8/2.3m/min
-
Weight (KG):
-
194 kg
-
Chain:
-
China G80chain
-
CE:
-
GR2107010466CM
-
Used in:
-
coating,wind power industry,roads,bridge construction,factury
-
Power:
-
3.0/1.0kW
-
Supply power:
-
200-460V, 3P
-
Rotation speed:
-
2890/980r/min
-
Control Method:
-
pendant cable control
-
Lifting height:
-
6m
-
Net Weight:
-
206kg
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Vanbon/OEM
-
Lift Speed:
-
6.8/2.3m/min
-
Weight (KG):
-
194 kg
-
Chain:
-
China G80chain
-
CE:
-
GR2107010466CM
-
Used in:
-
coating,wind power industry,roads,bridge construction,factury
-
Power:
-
3.0/1.0kW
-
Supply power:
-
200-460V, 3P
-
Rotation speed:
-
2890/980r/min
-
Control Method:
-
pendant cable control
-
Lifting height:
-
6m
-
Net Weight:
-
206kg
Product Description

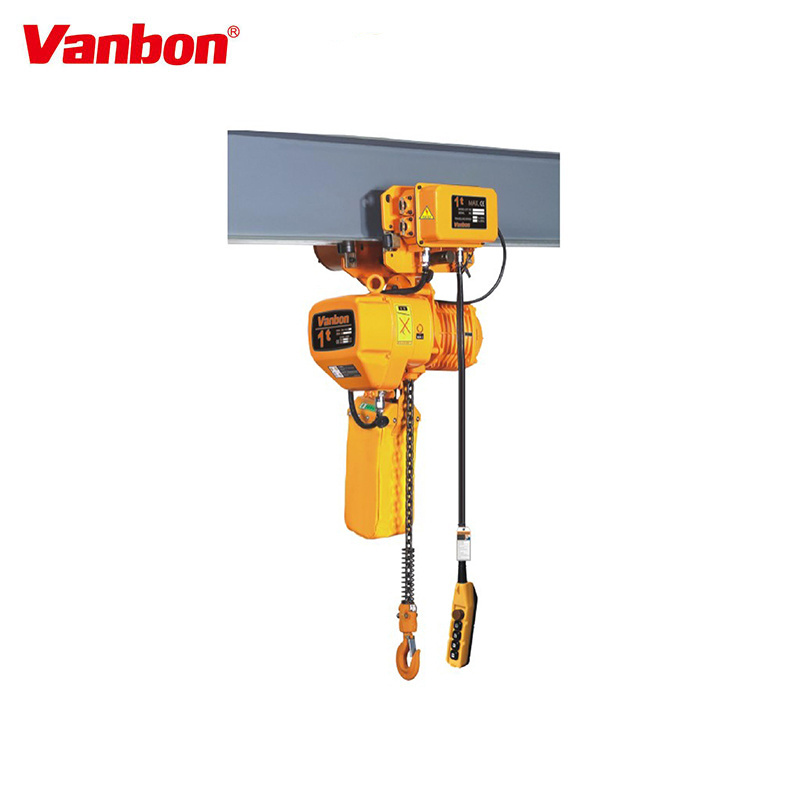

2 ton electric chain hoist, electric hoist crane 2 tons,2 ton chain hoist
Technical parameters
| Type | WBH-00501DE | WBH-01001DE | WBH-01501DE | WBH-02001DE | WBH-02501DE | WBH-03001DE | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | |
| Standard Lifting Height(m) | 3 | ||||||
| Lifting Speed(m) | 6.8/2.3 | 6.6/2.2 | 8.8/4.4 | 6.6/2.2 | 5.4/1.8 | 5.4/1.8 | |
| Lifting Motor | Power(kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Rotation Speed(r/min) | 2890/980 | ||||||
| Phases | 3 | ||||||
| Voltage(v) | 200-440 | ||||||
| Frequency(Hz) | 50/60 | ||||||
| Operating Motor | Power(kw) | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 |
| Rotation Speed(r/min) | 1440 | ||||||
| Operating Speed(m/min) | 11/21 | ||||||
| Phases | 3 | ||||||
| Voltage(V) | 200-440 | ||||||
| Frequency(Hz) | 50/60 | ||||||
Size Specification
| Type | WBH-00501D | WBH-01001D | WBH-01501D | WBH-02001D | WBH-02501D | WBH-03001D |
| H | 630 | 650 | 770 | 830 | 830 | 830 |
| A | 545 | 582 | 670 | 670 | 670 | 670 |
| B | 260 | 280 | 313 | 313 | 313 | 313 |
| D | 280 | 300 | 430 | 430 | 430 | 430 |
| E | 160 | 176 | 265 | 265 | 265 | 265 |
| K | Ø35 | Ø40 | Ø47 | Ø47 | Ø58 | Ø58 |
| L | 28 | 31 | 40 | 40 | 48 | 48 |
| I | Ø31 | Ø31 | Ø36 | Ø36 | Ø43 | Ø43 |
| N | 17 | 22 | 30 | 36 | 36 | 36 |
| W | 206 | 206 | 237 | 265 | 265 | 265 |
| U | 111 | 111 | 127 | 140 | 140 | 140 |
