Quick Details
-
Display&Touch:
-
21.5"
-
Resolution:
-
1920*1080
-
Touch Screen:
-
True-flat PCAP touch with multi-touch support
-
Application:
-
Indoor
-
Installation way:
-
wall-mounted/ desktop/ floor standing
-
Warranty:
-
2 Years
-
Operating System:
-
Windows 7/8/10/ Android
-
Camera:
-
2MP camera
-
Printer:
-
3" thermal printer w/auto cutter
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Product Name:
-
Self-Service Lcd Kiosk
-
Display&Touch:
-
21.5"
-
Resolution:
-
1920*1080
-
Touch Screen:
-
True-flat PCAP touch with multi-touch support
-
Application:
-
Indoor
-
Installation way:
-
wall-mounted/ desktop/ floor standing
-
Warranty:
-
2 Years
-
Operating System:
-
Windows 7/8/10/ Android
-
Camera:
-
2MP camera
-
Printer:
-
3" thermal printer w/auto cutter
Why Choose Elanda

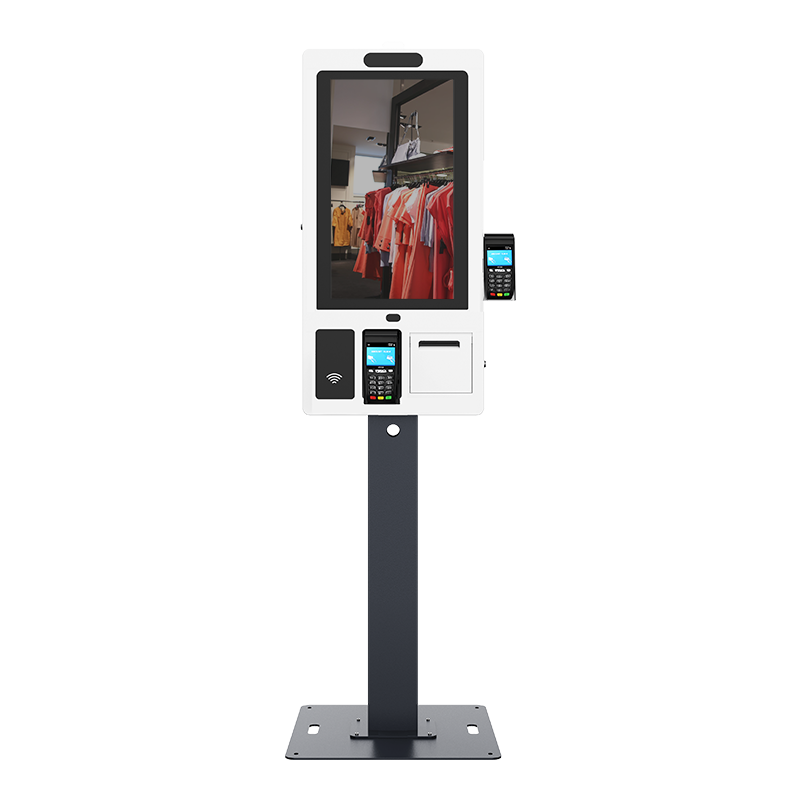

Product Description
Support both Windows and Android operation system
Support desktop/wall-mount/floor standing
Sturdy pedestal, desktop and wall mount optional
21.5" FHD industrial-grade LCD with PCAP touch panel;
5MP Camera
Splashproof and dust-prevent design, excellent cooling system
Payment Device Cradle
Invisible, neat and safe cable management
Support two kiosk Status Indicator WIiFi Antenna
Able to support two kiosks
NFC/RFID Reader EMV bracket
Optional status indicator , scanner , MSR, FRID/NFC reader
Thermal Printer
Proximity Sensor
Modular design, with printer, proximity sensor ;
|
Model Number
|
S22+
|
|
|
|
|||
|
CPU Support
|
Intel Core I3 Seris ,FAN
|
Intel Core I5 Seris,FAN
|
RK3568(2.0GHz)
|
|
|||
|
System Memory
|
1 x DDR3L/DDR4, SO-DIMM, 4GB (Max. 16GB)
|
|
DDR4,4G(Onboard)
|
|
|||
|
Storage Device
|
1x mSATA / M.2 128G (64G/256G optional )
|
|
eMMC 32G
|
|
|||
|
Power
|
1 x 12V-5A/60W+ 1 x 24V-2A/48W
|
|
|
|
|||
|
OS Support
|
Win10
|
|
Android 11.0
|
|
|||
|
Screen Size
|
21.5" TFT LCD Panel
|
|
|
|
|||
|
Brightness
|
250 cd/m²
|
|
|
|
|||
|
Resolution
|
1920*1080
|
|
|
|
|||
|
Touch Screen
|
True-Flat Projected Capacitive Touch
|
|
|
|
|||
|
DC-IN
|
1 x DC In
|
|
|
|
|||
|
CR
|
N/A
|
|
1 xRJ11
|
|
|||
|
VGA
|
1 xVGA
|
|
N/A
|
|
|||
|
HDMI
|
1 xHDMI
|
|
N/A
|
|
|||
|
USB
|
2 x USB 3.0 +6 x USB 2.0 Ports
|
|
|
|
|||
|
LAN
|
1 x LAN (10/100/1000Mb)
|
|
|
|
|||
|
Audio
|
1 x MIC-IN & 1 x LINE-OUT
|
|
N/A
|
|
|||
|
Serial port
|
1 x DB9(RS-232)
|
|
1 x RJ12(RS-232)
|
|
|||
|
Printer
|
80mm thermal printer,auto cutter, 170mm/sec (max.)
|
|
|
|
|||
|
Camera
|
5MP Single camera
|
|
|
|
|||
|
Proximity Sensor
|
60-80cm Proximity Sensor
|
|
|
|
|||
|
Speaker
|
2 x 2w Speaker
|
|
|
|
|||
|
WIFI
|
mPCI-E WiFi/BT module
|
|
WiFi/BT(onboard)
|
|
|||
|
Scanner
|
MP718(USB,1D,2D,Reading precision:=4mil,Dimension:90.5mm*35.4*80.2mm)
|
|
|
|
|||
|
MSR
|
MSR + iButton (Combo) o r MSR +RFID (Combo) ,USB(VCOM optional) ,
1,2,3 Track, ISO7810,7811-1/2/3/4/5,IBM,AAMVA,JIS-2 Standard
|
|
|
|
|||
|
NFC/RFID Reader
|
Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica),
NFC protocols - tag read/write (ISO/IEC-18092)
|
|
|
|
|||
|
Status light
|
Printer status light
(Red light indicates error or out of thermal paper ,Blue light indicates working status )
|
|
|
|
|||
|
System FAN
|
4 x Fans(Manufacturer default)
|
|
|
|
|||
Our Company
Shenzhen Elanda Tech Co., Ltd. is located in BaoAn district, Shenzhen, 4.6 Km away from Shenzhen airport. Company area: 6000 square meters, factory area: 5000 square meters.
Shenzhen Elanda
R&D Team,
QA Testing
and
Production Lines
Elanda could always guarantee perfect products and timely delivery to our customers, welcome OEM and ODM projects
Shenzhen Elanda Aging room
Elanda focuses on research & development, production, QC for industrial level POS system, kiosk and thermal printer.
Shenzhen Elanda ESD testing room
For each New model/ production, we do ESD test, Vibration test, Drop test
Contact us now :
Click here
Certification
Packaging
Elanda Exhibitions
Elanda exhibitions from 2015-2023
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional POS machine manufacturer located in Shenzhen. And we provide OEM&ODM services too.
Q2: What is the lead-time for my order?
A: 3-5 days for sample order and 15-20 days for bulk order.
Q3: What is your warranty policy?
A: 1-3 years warranty for most of the products (based on the model), three years of free maintenance.
Q4: What payment methods your company accept?
A: Alibaba Trade Assurance Payment, T/T, L/C, Paypal, Western Union etc.
Q5: How about your product packaging?
A: Packed in pearl cotton with carton box or wooden case.
Q6: Can I order a sample to check the quality?
A: Yes of course! You can order a sample to check the quality.
