Quick Details
-
Outlet temperature:
-
-5 degree Celsius
-
Compressor type:
-
Scroll type
-
Condenser:
-
Finned copper tube
-
Glycol:
-
20%
-
Dimension:
-
depend on different capacity
-
Usage:
-
Brewing System Glycol Cooling
Quick Details
-
Place of Origin:
-
China
-
Cooling Capability:
-
depend on different capacity
-
Refrigerant type:
-
R22/R407c/R404a
-
Outlet temperature:
-
-5 degree Celsius
-
Compressor type:
-
Scroll type
-
Condenser:
-
Finned copper tube
-
Glycol:
-
20%
-
Dimension:
-
depend on different capacity
-
Usage:
-
Brewing System Glycol Cooling

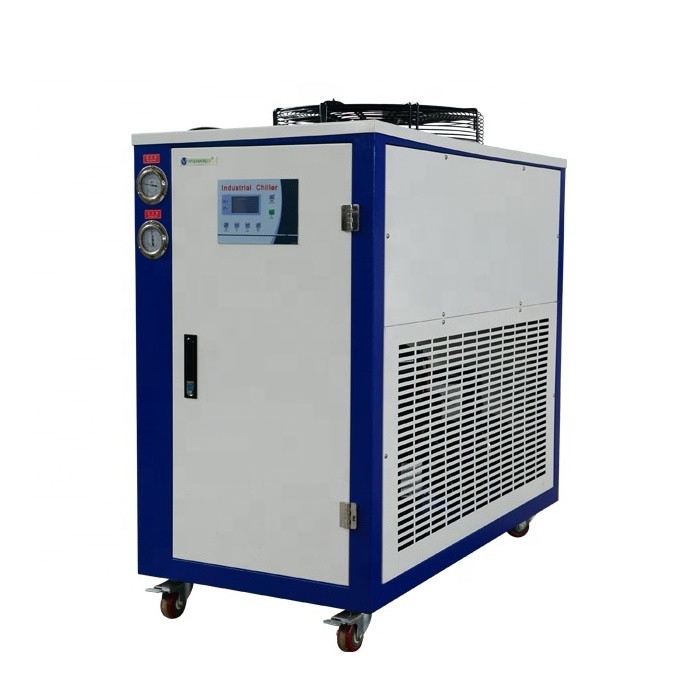

Specification for Air Cooled 25hp Water Chiller R410a
Cooling capacity : 13kw~83.6kw
Horse power : 5hp~30hp
Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz
(1). Design waterproof ,suitable using outside and in house.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
Features:
1.Air-cooled mode can save the cooling water pump and piping,which is installed conveniently,even installation in the open air and reduces lump-sum investment expenses.
2.Being controlled centrally by the micro computer,adjusted in fully automatic mode and controlling the temperature precisely ,making the machine under the state of best operation all the time.
3.Equipped with US Copeland fully closed scroll compressor,Emerson cooling parts,Mitsubishi air switches and Schneider parts of electric appliances,with reliable quality.
4.High efficient micro channel condenser,with high efficiency of heat exchange.
5.The blower with outer rotor axis can reduce operating noise while radiating the heat efficiently,and reduce the impact to its surrounding.
1). Brand and durable Scroll type compressor: Copeland, Danfoss, and Panasonic.
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
7). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection
,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection.
