Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Galin
-
Voltage:
-
110V-240V
-
Power:
-
50-60Hz
-
Dimension(L*W*H):
-
46*85*110cm
-
Weight (KG):
-
42
-
Product name:
-
Galin Electrostatic Powder Coating Machine (PHIRST)
-
Application:
-
Powder Coating Spray Application
-
Color:
-
Green & black
-
manual & auto:
-
Available
-
Available powder:
-
Metal / PTFE / Epoxy Powder
-
Spraying Guns:
-
GalinM-01 & GalinA-01
-
Style:
-
Fluidizing model / Feedbox model can be customized
-
OEM:
-
Available
-
Package:
-
Carton & PEP
-
Delivery time:
-
3-5days
Quick Details
-
Machine Type:
-
fluidizing model, Spray Booths, Painting Equipment, Coating Equipment
-
Marketing Type:
-
New product 2021
-
Warranty of core components:
-
18months
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Galin
-
Voltage:
-
110V-240V
-
Power:
-
50-60Hz
-
Dimension(L*W*H):
-
46*85*110cm
-
Weight (KG):
-
42
-
Product name:
-
Galin Electrostatic Powder Coating Machine (PHIRST)
-
Application:
-
Powder Coating Spray Application
-
Color:
-
Green & black
-
manual & auto:
-
Available
-
Available powder:
-
Metal / PTFE / Epoxy Powder
-
Spraying Guns:
-
GalinM-01 & GalinA-01
-
Style:
-
Fluidizing model / Feedbox model can be customized
-
OEM:
-
Available
-
Package:
-
Carton & PEP
-
Delivery time:
-
3-5days

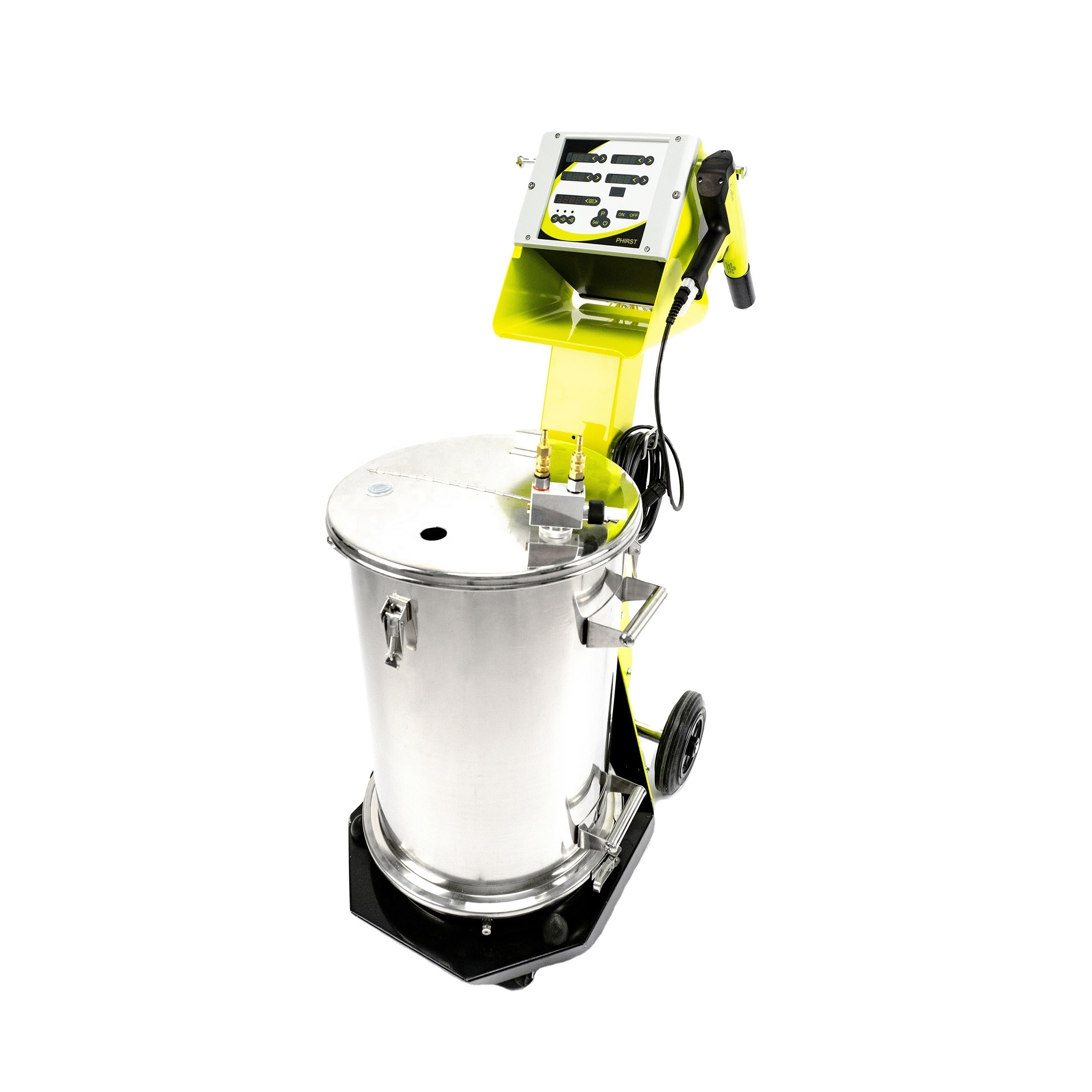

Galin Electrostatic Powder Coating Machine
[ GALIN · PHIRST ]
with Metal / PTFE / Epoxy Powder
for High Quality Coating on Metal Surface
This is a
humanized
machine
Choose special color formula to relieve eye fatigue
The gun handle adopts ergonomic hand grip design
All parameters are displayed in digital form, and every detail can be studied
The display is consistent with the actual high voltage, achieve what you see is what you get
[
CONTROL UNIT
]
· There are
23
kinds of programs, meet more spraying requirement
· Built in
power board
, voltage output is more durable and stable, and powder charging is more uniform
· Including the
proportional valve
with precise valve needle, stronger gas control ability and better atomization effect
· With parts box, convenient for user
[
POWDER COATING GUN
]
· The hand grip is designed with groove and angle fitting, which conforms to ergonomic design
· The gun shell is made of special formula and added PTFE material, which has excellent insulation and resistance characteristics, is not easy to crack, and has better service life and safety performance
· The isolation column capacitor and resin inside the cascade will give better play to the electrical performance
[
POWDER HOPPER & TROLLEY
]
· Powder hopper adopts 304 stainless steel detachable way, easy to clean, long service life
· The fluidizing plate is made of PTFE material with low friction coefficient and resistance to organic solvents
· The chassis of the trolley is added with powder hopper anti-skid design
· Use silent wheel and universal wheel, easy to move, no stuck
|
ELECTRICAL
DATA
GALIN ELECTROSTATIC POWDER COATING MACHINE (PHIRST) |
|
| Nominal input voltage | 110V 240VAC |
| Frequency | 50 - 60Hz |
| Connected load (without vibrator) | 140 VA |
| Nominal output voltage (to the gun) | eff.10 V |
| Nominal output current (to the gun) | max. 1.2 A |
| Connection and output for vibrator (on Aux output) | 110/230 VAC max. 100 W |
| Connection for rinsing function (valve) | 24 VDC max. 3 W |
| Temperature range | 0°C - +40°(+32°F - +104°F) |
| Max. surface temperature | 120 °C (+248 °F) |
| Approvals | II 3 D IP54 120 °C |
|
PNEUMATICAL DATA
GALIN ELECTROSTATIC POWDER COATING MACHINE (PHIRST) |
|
| MAX.input pressure | 10bar / 145psi |
| MIN.input pressure | 6bar / 87psi |
| Max.water vapor content of the compressed air | 1.3g/Nm³ |
| Max.oil vapor content of the compressed air | 0.1mg/Nm³ |
| Max.compressed air consumption | 8Nm³/h |
|
AVAILABLE POWDER
GALIN ELECTROSTATIC POWDER COATING MACHINE (PHIRST) |
|
| Epoxy Powder: | √ |
| Teflon Powder: | √ |
| Metal Powder: | √ |
| Enamel Powder: | × |
Within 3 sets, we recommend the air shipping / express delivery, such as, FEDEX, UPS, DHL, ARAMEX, DPEX, etc
Usually 7-12days , it can arrive your door
More than 3 sets, we recommend the sea shipping, it has higher cost performance. If shipping by sea, we will provide waterproof packaging, also can provide the wooden case packing according to the request.
1. Technoligy consult Service
2. One year warranty Service
3. After market Service
4. OEM Service
5. Online use and assembly Teaching
Sample order is available ,welcome to test our product!!!
CLEANING AND MAINTENANCE
1. Daily Maintenance
(1)Clean the injector
(2) Clean the powder gun
(3) Clean the powder hose and suction unit
2. Weekly Maintenance
(1) Clean suction unit,injector,Powder Clean module and powder gun
(2) Check the control unit grounding connections to the coating booth bolts,
the suspension devices of the work pieces,or the conveyor.
TROUBLESHOOTING GUIDE
If the powder gun does not spray powder although the control unit is switched on,then the injector can be dirty or clogged.
|
Error/Cause |
Tro u bleshooting |
|
Injector nozzle, non-return valve unit, powder hose or powder gun are clogged |
Clean the corresponding parts and if necessary,replace them |
|
Co n veying vacuum too low |
Increase the powder quantity and/ or total air volume on the control unit |
|
Insert sleeve worn , not or incorrect inserted |
Replace or insert it ,observe the indexing cam |
|
Insert sleeve is worm after a short operating duration |
Clean the nozzle ,if damaged,replaced it |
|
The gun does not spray powder although the control unit is switched on and the gun trigger is pressed |
1.Connect the machine to the c ompressed air 2.Clean /Replace 3.Clean the corresponding 4.Contact Galin representative |
