Quick Details
-
Max. Loading Capacity:
-
10000
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
IDA
-
Voltage:
-
220-480V
-
Dimension(L*W*H):
-
customizable
-
Power (kW):
-
15 kW
-
Marketing Type:
-
Hot Product
-
Control:
-
Button cabinet / PLC
-
Speed control:
-
VFD
-
Inverter:
-
Optional
-
Bearing:
-
NSK
-
Heating method:
-
Electrical heating
-
Ex-proof:
-
Optional
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
10000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 1450 r.p.m
-
Max. Loading Capacity:
-
10000
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
IDA
-
Voltage:
-
220-480V
-
Dimension(L*W*H):
-
customizable
-
Power (kW):
-
15 kW
-
Marketing Type:
-
Hot Product
-
Control:
-
Button cabinet / PLC
-
Speed control:
-
VFD
-
Inverter:
-
Optional
-
Bearing:
-
NSK
-
Heating method:
-
Electrical heating
-
Ex-proof:
-
Optional
Multifunction mixing and dispersing kettle integrateds the low speed strong stirring and high speed dispersing onto one body. It has very good adaptability to middle and high viscosity and thixotropic material. To stir and dispersing at the same time can obtain the ideal result. The machine can be used to stri,dissolve,disperse and color matching. It is ideal for patch Latex paints production. It features easy operation and strong adaptability as an ideal stirring and dispersing multipurpose equipment.

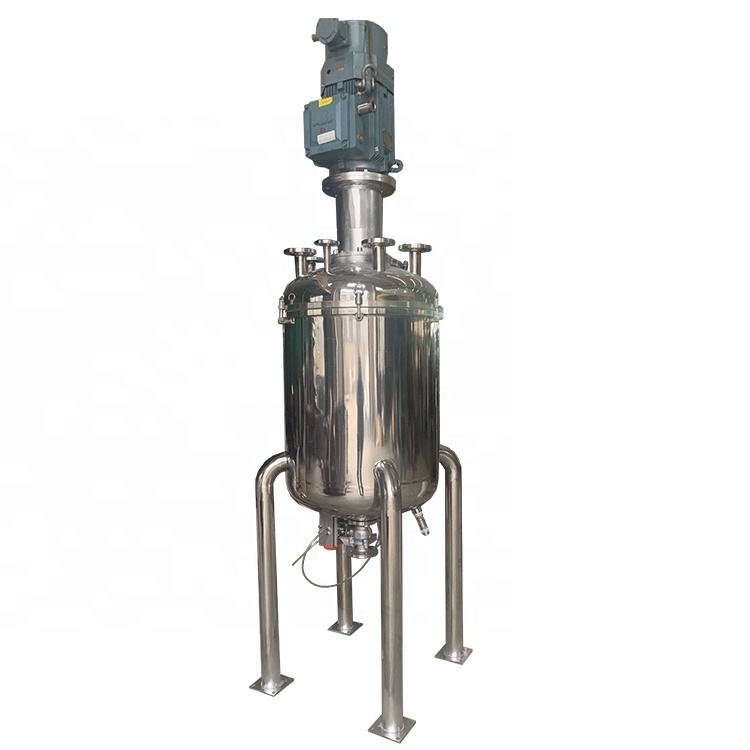

Multifunctional reactors are classified into stainless steel and carbon steel according to their materials. The jacket and inner cylinder are made of atmospheric pressure, with reasonable structure, durability, high temperature resistance, corrosion resistance, and easy use. At present, it has been widely used in petroleum, chemical, rubber, food, scientific research and other industries to complete the process of differentiation, polymerization, condensation and other processes, as well as the reaction equipment of many other processes such as organic dyes and intermediates.
| Model |
Tank size
(mm)
|
Frame power
(kw)
|
Frame speed
(rpm)
|
Disperser power (kw) |
Disperser Speed
(rpm)
|
Screw power
(kw) |
Screw power
(kw) |
Emulsifier power (kw) |
Emulsfiier speed
(rpm)
|
| SJBF-500 | φ950*800 | 3-5.5 | 0-75 | 11-18.5 | 0-1450 | 4-7.5 | 0-200 | 7.5-11 | 0-1500 |
| SJBF-1000 | φ1200*1000 | 5.5-11 | 0-58 | 18.5-30 | 0-1450 | 7.5-15 | 0-180 | 15-22 | 0-1500 |
| SJBF-1500 | φ1350*1100 | 7.5-15 | 0-58 | 22-37 | 0-1450 | 7.5-15 | 0-180 | 22-30 | 0-1500 |
| SJBF-2000 | φ1450*1300 | 15-18.5 | 0-45 | 30-45 | 0-1450 | 11-18.5 | 0-160 | 30-37 | 0-1500 |
| SJBF-3000 | φ1600*1600 | 18.5-22 | 0-35 | 45-55 | 0-1450 | 15-22 | 0-140 | 37-45 | 0-1500 |
| SJBF-5000 | φ1900*1900 | 18.5-22 | 0-25 | 55-90 | 0-950 | 22-30 | 0-120 | 37-45 | 0-1500 |
| SJBF-6000 | φ1900*1900 | 22-30 | 0-24 | 75-110 | 0-950 | 30-37 | 0-120 | ||
| SJBF-8000 | φ1900*1900 | 22-30 | 0-22 | 90-132 | 0-950 | 37-45 | 0-100 | ||
| SJBF-10000 | φ2400*2400 | 30-37 | 0-17 | 110-160 | 0-950 | 37-45 | 0-80 |
Coating: Water-based coating,Solvent-based coating,Decorative coating,Latex paint;
Ink: Gravure printing ink,flexographic ink,offset printing ink,silk screen ink ,UV light solid ink,digital inkjet ink etc;
Pigment: Dye,color painted pigment,pen liquid,watercolor;
Electronic Materials: Battery diaphragm alumina,lithium iron phosphate,ceramic slurry,flame retardant;
Food Industry: chocolate syrup,paste etc.
Pesticide: pesticide suspension ,EC,EW,ME
Daily Chemical Industry: cosmetics,luquid soap,shower gel,liquid detergent etc;
Nano Materials: metal oxide,magnetic materials,paper industry,optoelectronic industry.
1.As per customer's specified requirements
2. Plastics film protection with standard sea packing
Shipping
1. Small parts: By express, TNT/ DHL/ UPS/ Fedex etc.
2. Full machine: By sea or By air
3.Choose the best suitable way as your need.
Pre-Sale Service: IDA engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.
On-Sale Service: IDA factory will manufacture the good quality machine.
After-sale Service: IDA engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the disperser and sand mill, train your workers to operate and help with the debugging.
