Quick Details
-
Width of bed (mm):
-
300 mm
-
Spindle Motor Power(kW):
-
4/5.5
-
Travel (X Axis)(mm):
-
190 mm
-
Travel (Z Axis)(mm):
-
750 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1850*1400*1700
-
Brand Name:
-
Lu Young
-
Model Number:
-
Ck6136
-
Voltage:
-
3 Phase 380V
-
Weight (KG):
-
1750
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Automatic Grade:
-
Automatic
-
CNC or Not:
-
CNC
-
Machine Type:
-
H36 High quality used small linear cnc lathe for sale
-
Max.swing over bed:
-
360mm
-
Max.swing over cross slide:
-
110mm
-
Spindle bore:
-
48mm
-
Spindle speed:
-
150-2500rpm
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
CE ISO
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
1000
-
Max. Spindle Speed (r.p.m):
-
2500 r.p.m
-
Width of bed (mm):
-
300 mm
-
Spindle Motor Power(kW):
-
4/5.5
-
Travel (X Axis)(mm):
-
190 mm
-
Travel (Z Axis)(mm):
-
750 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1850*1400*1700
-
Brand Name:
-
Lu Young
-
Model Number:
-
Ck6136
-
Voltage:
-
3 Phase 380V
-
Weight (KG):
-
1750
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Automatic Grade:
-
Automatic
-
CNC or Not:
-
CNC
-
Machine Type:
-
H36 High quality used small linear cnc lathe for sale
-
Max.swing over bed:
-
360mm
-
Max.swing over cross slide:
-
110mm
-
Spindle bore:
-
48mm
-
Spindle speed:
-
150-2500rpm
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
CE ISO

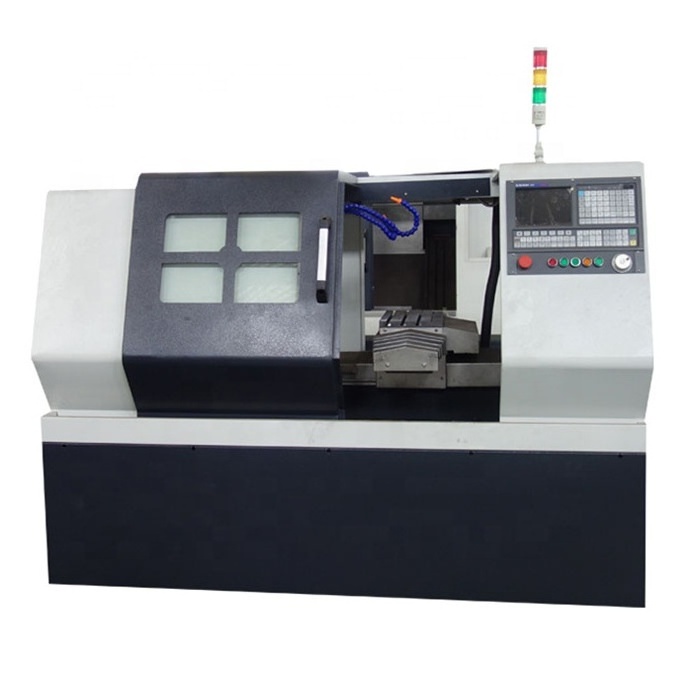

H36 High quality used small linear cnc lathe for sale
H36 High quality used small linear cnc lathe for sale Linear guide with high positioning accuracy, wear characteristics, it can be applied to high-speed operation of the machine. The friction coefficient is reduced to 1/50 of the sliding guide, and the dynamic friction is equal to the static friction to prevent the bed from slipping.
Specification of H36 High quality used small linear cnc lathe for sale
| H36 High quality used small linear cnc lathe for sale | |
| max. swing over bed | Φ360mm |
| max. swing over slide | Φ110mm |
| Chuck/collet | 6” hydraulic chuck |
| X axis max travel range | 340mm |
| Z axis max travel range | 250mm |
| Guide way | High speed linear guide way |
| Spindle speed | 4000rpm |
| Spindle nose | A2-5 |
| Spindle hole | Φ48mm |
| Bar through the spindle | Φ38mm |
| Fast feeding speed | X:20 Z:20 m/min |
| Main motor power | 3.7KW(servo) |
| Tool size | 20*20 mm |
| Tool quantity | 4 station electric tool holder |
| X/Z min set unit | 0.001 mm |
| X/Z positionaI accuracy | 0.01 mm |
| X/Z Repositioning Accuracy | 0.005mm |
| Weight | 1.5T |
| Configuration: | |
|
1.GSK928 CNC Controller
2.hydraulic collet 3.Taiwan HIWIN High speed Linear 4.Guide way 5.Gang type tool holder 6.Auto lubrication system 7.Lighting system 8.Cooling System 9.Auto feeder with change side feature |
|
Hot selling flat bed high precision CNC lathe machine for metal
|
CK0640 mini CNC lathe machine CK6432 small CNC lathe machine |
|
CK6130 small CNC lathe machine CK6132 small CNC lathe machine |
|
|
|
CK6150heavy duty CNC lathe machine CK6180 heavy duty CNC lathe machine |
1.
Strong strength
,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2
.Quality product
,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.
Direct factory price
,provide competitive factory price and save your costs.
4.
7×24 hours after-sale service
,Any questions, please contact us directly at any time
5.
Strong packing
,will protect the goods from any possible damage during transit.
6.
TRADE ASSURANCE
,protect your orders from payment to delivery.
The feature of H36 High quality used small linear cnc lathe for sale :
1.
Processing complex and high precision workpiece
. Bed head box optimization design, suitable for discs, shaft parts of the turning process, you can line, arc, metric thread, long thread processing, can be applied to the complex shape of the complex and high precision disk type, shaft parts Processing.
2.
High hardness, good rigidity,
high audio quenching, machine guide rails and saddle rails are using special materials, hard rail, high frequency quenching, super hard wear and tear, durable, good processing accuracy
3.
Automatic lubrication,
the lubrication point of the use of forced automatic lubrication device for quantitative quantitative lubrication of the screw and guide rail, when there is an abnormal state or lack of fuel, the automatic warning signal.
4.
High precision, low noise.
Spindle high precision double ball bearing support, low noise, high precision, good stability
5.
Tailstock self-protection function
, tailstock with fast cam clamping device, high efficiency. Tailstock sleeve to prevent the drill bit rotation device, to avoid the malfunction caused by the drill bit rotation and damage the tailstock sleeve hole taper, the effective protection of the tailstock parts.
6.
Easy to operate
, especially for complex parts or high-precision high-volume parts of the processing, but also the first choice of numerical control teaching
