Quick Details
-
Application of feed mixer:
-
Crushing and Mixing Powder Feed
-
Color:
-
As request
-
Name:
-
Feed Grinder And Mixer
-
Capacity of feed mixer:
-
1-2t/h
-
Certification:
-
CE ISO SGS
Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight:
-
500 kg
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Video technical support, Online support, Engineers available to service machinery overseas
-
Application of feed mixer:
-
Crushing and Mixing Powder Feed
-
Color:
-
As request
-
Name:
-
Feed Grinder And Mixer
-
Capacity of feed mixer:
-
1-2t/h
-
Certification:
-
CE ISO SGS

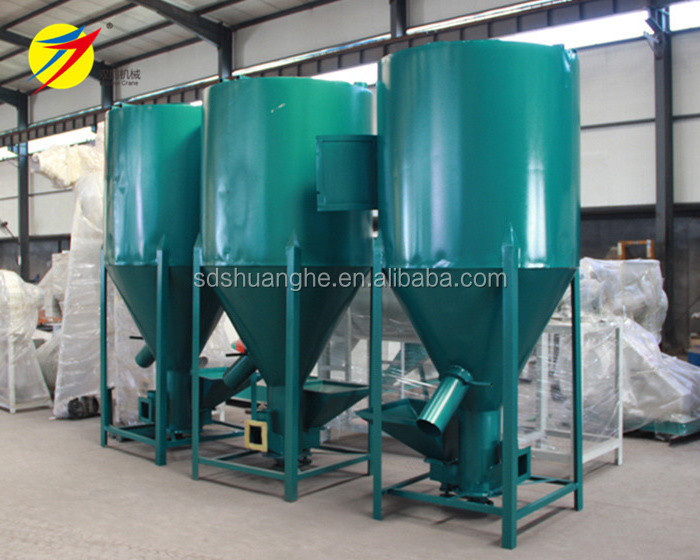

1ton/h vertical hammer mill grain mixer feed grinder and mixer
Video On YouTube : https://youtu.be/PBM_ozCn6IM
Poultry Self-priming feed grinder mixer is widely used to process the mixed feed for poultry and livestock such as chicken,pig,goat,fish,and rabbit.it can finish the job of feeding ,crushing,dust extrusion and mixing automatically,which is suitable for feed factories of all size.and the machine is of efficient structure,advanced characteristic,low power consumption and reliable performance,thus they are the ideal assistant for factories and poultry and livestock owners.
Main model of small poultry feed grinder and mixer
|
Equipment Model |
SH-500 |
SH-1000 |
|
|
Equi p ment Size/Weight |
Grinder 1*0.8*1.6m,Mixer 1*1*2.4m Package weight about 500kg |
Grinder 1*0.8*1.8m,Mixer 1.25*1.25*2.9m Package weight about 500kg |
|
|
Motor Power(kw) |
Self-priming grinder 7.5kw, Vertical mixer 2.2kw. |
Self-priming grinder 11kw, Vertical mixer 3kw. |
|
|
Production Capacity(t/h) |
1-2t/h |
2-3t/h |
|
|
Wearing parts |
Each time only use 16pc hammer and 1pc screen, use life about 1-2month |
||
|
Screen size |
Screen size can be 1.5mm for pig feed production, 2,4,6,8,10,12mm for chicken feed production; The high size screen will have high yield |
||
|
Application |
Crush grain powder feed for animal feed,such as corn,soybean,etc.Suitable for chicken and pig feed |
||
The advantages of small poultry feed grinder and mixer
simple and compact structure, one-time investment, economic and practical, convenient maintenance, low energy consumption, high productivity, good mixing uniformity,it no need special production sites. Can produce premix, mixing, concentrates, full powder feed, etc.It is a kind of ideal powder feed processing equipment for small poultry farmers.
The working principle of small poultry feed grinder and mixer
Hammer mill and mixer are concentrated in one, so it occupies a small place and easy to install.The grain feed such as corn can be put on the floor or dig a pit or drum,the hammer mill can by d ouble tube suction nozzle to absorb the feed material by wind power from suction blower,After the completion of the automatic grinding,corn powder automatically into vertical mixer;
Vertical Mixer Working Principle: At the same time,if user have other powder feed material such as wheat bran want to mix together with corn feed,because it no need to crush again,so we just put powder material into mixer ’ s powder feed inlet hopper,then several feed material can mix together in the mixer,it will need to mix 5 minutes according to actual situation,by manual discharge valve,automatic discharge the finished premix feed product.
The working principle of vertical mixer,by the rapid rotation of the screw pole,the material is lifted to the top of the barrel from the bottom,and then scatters on the bottom,by this way, the material is mixed efficiently in the barrel.
Small poultry feed grinder and mixer used in the Pellet Feed Production Line
The Single machine will be packaged in wooden case.
The whole feed production line will be loaded in the full container.
