It is better than sealing by inner heating machine . no need pre-heating .
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99%
-
Packaging Type:
-
Tube
-
Voltage:
-
220V 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hengxing
-
Dimension(L*W*H):
-
1630*1300*1580mm
-
Weight:
-
400 KG
-
Frequency:
-
20Khz
-
Capacity:
-
20-28 pcs / min
-
Max height:
-
10-200 mm
-
Filling range 1:
-
3-30ml
-
Filling range 2:
-
6-60ml
-
Filling range 3:
-
10-120ml
-
Filling range 4:
-
25-250ml
-
Filling range 5:
-
50-500ml
-
Air pressure:
-
0.6-0.8 Mpa
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Plastic, Metal
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
99%
-
Packaging Type:
-
Tube
-
Voltage:
-
220V 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hengxing
-
Dimension(L*W*H):
-
1630*1300*1580mm
-
Weight:
-
400 KG
-
Frequency:
-
20Khz
-
Capacity:
-
20-28 pcs / min
-
Max height:
-
10-200 mm
-
Filling range 1:
-
3-30ml
-
Filling range 2:
-
6-60ml
-
Filling range 3:
-
10-120ml
-
Filling range 4:
-
25-250ml
-
Filling range 5:
-
50-500ml
-
Air pressure:
-
0.6-0.8 Mpa
Products Description

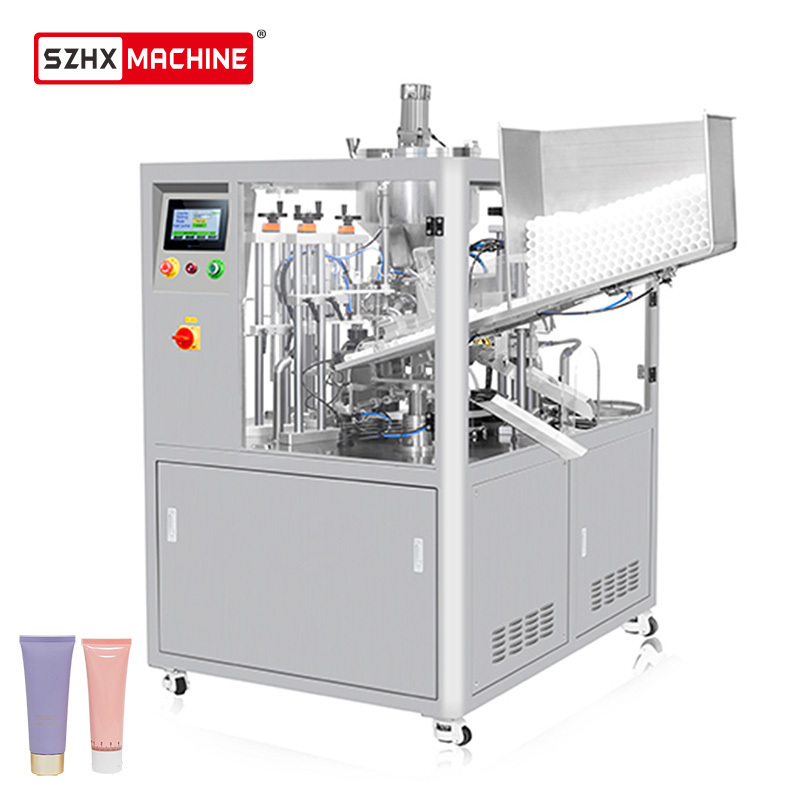

HX-009 FULLY AUTOMATIC ULTRASONIC TUBE FILLING AND SEALING MACHINE
Application of the Cosmetic Cream Tube Filling Sealing Machine:
Mainly Packaging the liquid or paste in small sachet at high speed, such as shampoo, lotion, hand washing, liquid soap,liquid
flavors, juice, oil, jam, honey for the tubes filing and sealing machine etc.
Mainly Packaging the liquid or paste in small sachet at high speed, such as shampoo, lotion, hand washing, liquid soap,liquid
flavors, juice, oil, jam, honey for the tubes filing and sealing machine etc.
WHAT IS ULTRASONIC SEALING ?
With ultrasonic sealing the inside seal area of the tube is heated by high frequency friction produced by an ultrasonic horn , the tube then clamped against the anvil and cooled to form tube seal.
ABL (Aluminum plastic tube )
Plastic tube
5 layers tube
|
Model
|
HX-009
|
|
Frequency
|
20kHz
|
|
Power
|
2600W
|
|
Power Supply
|
AC110V or AC220V single phase
|
|
Filling Range
|
A: 6-60ml B: 10-120ml C: 25-250ml D: 50-500ml
|
|
Filling Accuracy
|
±1%
|
|
Capacity
|
18-28tubes/min
|
|
Tube Dia.
|
13-50mm
|
|
Tube Height
|
50-250mm
|
|
Air Pressure
|
0.6MPa
|
|
Air Consumption
|
0.35m³/min
|
|
Dimension
|
1630*1300*1580mm
|
|
N.W.
|
530kgs
|
DATE CODING
Details Images
SPECIAL SHAPE CUTTING
FEATURE
* Machine could automatically finish tube feeding, registration mark identifying, filling , sealing with date coding,end trimming, tube out feeding, fully automatic, save labor cost and lower production cost.
* Cam indexing system could position precisely for ten working stations.
* Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
* Independent R&D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
* PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
* Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
* No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
