Quick Details
-
Dimension(L*W*H):
-
200*200*180cm
-
Machine type:
-
Thermoforming machine
-
Machine Name:
-
Vacuum forming machine
-
Material type:
-
PP,PS,PET,PVC,ABS,ACRYLIC,PE
-
Material Thickness:
-
0.2-2.0mm
-
Material:
-
Roll/sheet
-
Usage:
-
Platic Blister Plastic Tray Forming
-
Color::
-
Customized
-
Application:
-
blister forming machine
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUA XIANG
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
200*200*180cm
-
Machine type:
-
Thermoforming machine
-
Machine Name:
-
Vacuum forming machine
-
Material type:
-
PP,PS,PET,PVC,ABS,ACRYLIC,PE
-
Material Thickness:
-
0.2-2.0mm
-
Material:
-
Roll/sheet
-
Usage:
-
Platic Blister Plastic Tray Forming
-
Color::
-
Customized
-
Application:
-
blister forming machine
-
Certification:
-
CE
Forming Process
Material feed→Heating→Forming→Sheet Clamping→Robot hand rise→Pull out→Sheet fall and stacking
Cutting Process
Take the sheet from Vacuum forming machine→cutting

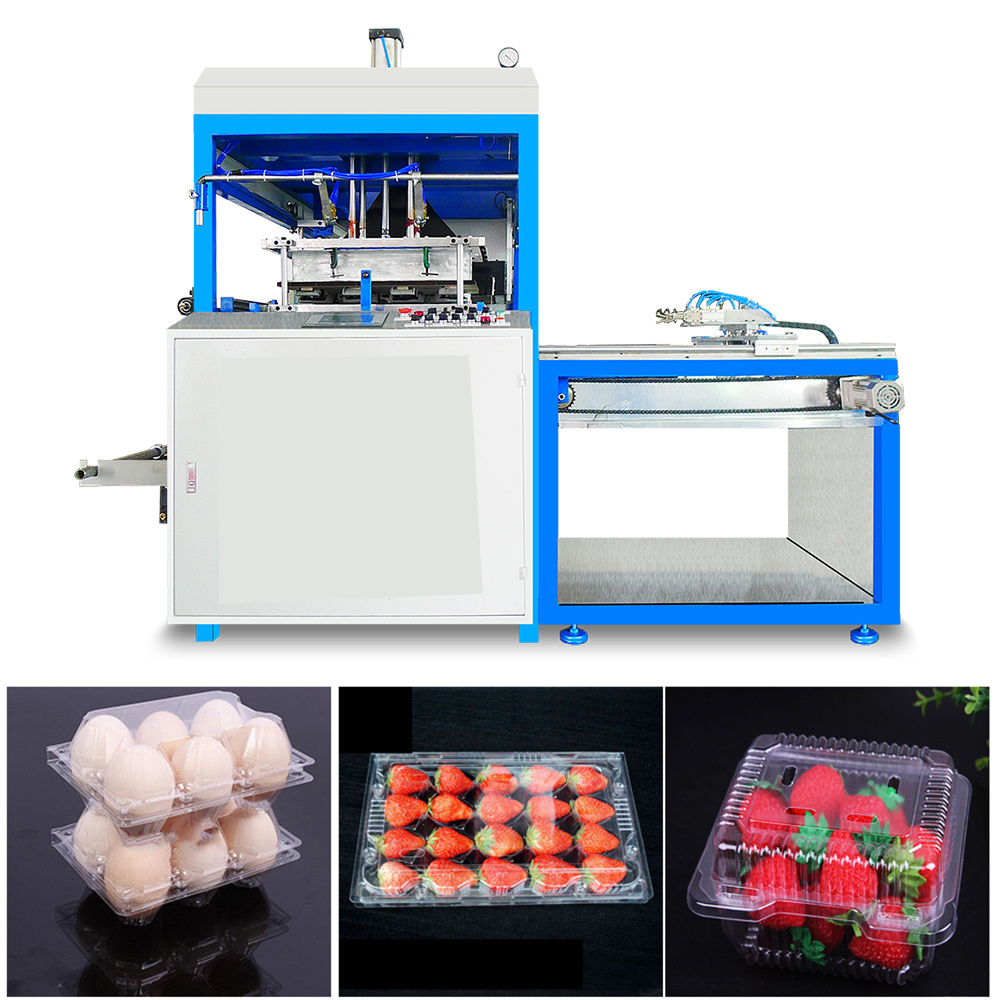

HX-600 Series Vacuum Forming Machine - compact type 2
INFO
HX-600 series isuser friendly machine with the power and capability to form demanding shapes and materials, Price-performance ratio for automatic production class machines. Efficient heat management, ease of use, compact and accessible price are instrumental to the internationally successful by many companies.
Application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.
Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;
Bigger forming size,adjust mold table,more powerfully vacuum pump
Hot sales machine,Suitable various packing blister, etc production.
Economic model for power cost saving.
Main Features
1. Rapid, energy efficient ceramic heaters with variable standby, 25/30 independently controllable zones provides accurate heat control for consistent, high definition results;
2. pneumatic table and clamping provides effortless operation, whilst the vacuum tank system fitted as standard facilitates ultra-fast response for demanding applications and fast cycle times;
3. High output fans provide rapid cooling to speed up cycle times;
4. In the digital temperature controller, temperature setting is convenient, high precision of temperature control;
5. Automatic forming the roll sheet, also able to use board sheet to loading pieces by pieces;
6. Twice vacuum
Machine function: Extra function for HX-600A/B:
1.Ceramic Heaters with Variable Standby
2.Pneumatic Heater Drive
3.Pneumatically Powered Clamping Frame
4.Big Cooling Fans
5.Reel Feeder
6.Automatic finished unloader
7.30/25 Independently Controllable Heating Zone
8.Vacuum Receiver Tank
9.Vacuum Flow Regulator
10.Vacuum and Pressure Gauges
11.Safety Lighting
12. Spray Gun (Spray Mist)
13. Upward air blown gas
1.PLC Control
2.Programme Memory
3.Digital Temperature Control
4. Robot Hand rise/fall
5.Electronic mold table with Width adjust(Optional)
6.Mold table with Cooling(Optional)
Forming Part:
1.HX-600A is equipped with a max. forming area of 720 x 560 mm.
2.HX-600B and 600C setting forming size:610*560mm
3.HX-600A forming width can be adjust from 410mm to 560mm;
4.HX-600B and 600C forming width invariable;
5.HX-600A and 600B use digital temperature control,HX-600C micro temperature control
Electricity box
Brand:
CHNT,OMRON
Original:
Chinese,Japanese
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
High quality accessories
Robot hand and sheet clamp
Good use for the taller products, make sure the blister tray not locked by frame;
sheet clamp x3, sheet catch stable
PLC Control
Includes two kinds of control mode such as PLC mode and press-button control;
Industrial cooling fan
Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable;
Digital temperature or micro controller
In the digital temperature controller; temperature setting is convenient, high precision of temperature control;
25/30 Independently Controllable Heating Zone;
Ceramic heating oven
25/30 pcs Ceramic Heaters;
Power:16kw or 19Kw (every 0.65kw);
Heater size:12cm*12cm;
Save 10% power compare with competitors;
Vacuum pump
Brand
: Rietschie Thomas or Chinese Brand
(Optional);
Original:
Germany or Chinese
(Optional)
100³,63m³,40m³,20m³;
Packing
1.Wooden box or wooden frame, box:35USB/CBM, wooden frame:15USD/CBM
2. Woodwork will be fumigated in many country
3.If container is too tighten, we will use pe- film for packing or pack it according to customers special request.
4.Machines will be Split to facilitate placement
HUAXIANG is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the professional enterprise that specializ in the production of Vacuum Forming/Thermoforming Machine. Our machine are used a lot in plastic forming,plastic packaging field;
In order to help you choose the most suitable machine, please try to reply my questions below, thanks for your cooperation
.
Q1: What about your material?
Q2: The size of your sample; length, width and thickness?
