Neonate ACLS Manikin Human Body Model CPR Training Manikin

Neonate ACLS Manikin Human Body Model CPR Training Manikin

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ICLEAR

Product name:: CPR Manikin

Material:: Advanced PVC

Use for:: Schools, Colleges, Hospitals Teaching, Medical Surgery Simulator

Quick Details

Type:: Manikin

Model Number:: CHJ-ACLS1600

Place of Origin:: Guangdong, China

Brand Name:: ICLEAR

Product name:: CPR Manikin

Material:: Advanced PVC

Use for:: Schools, Colleges, Hospitals Teaching, Medical Surgery Simulator

Product Description

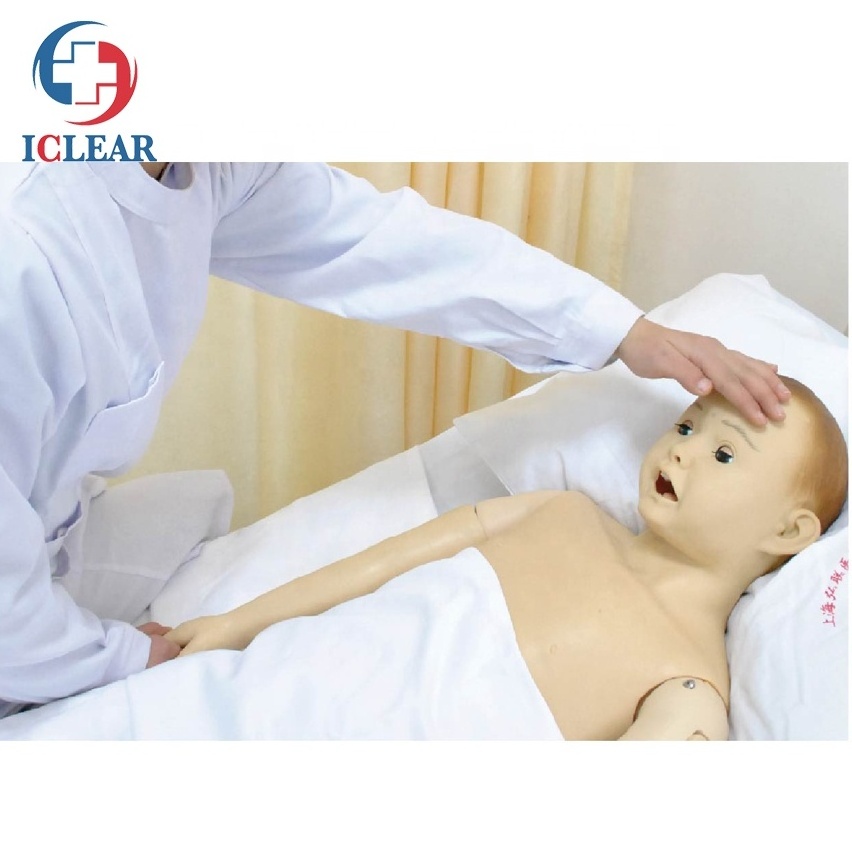

Neonate ACLS Manikin Human Body Model CPR Training Manikin

CHJ-ACLS1600

CHJ-ACLS1600 is designed according to experts experience and advice in the first-aid field and in accordance with five-year-old child anatomical characteristic. Complying with AHA (American Heart Association) 2005 emergency guideline for CPR and ECC, CHACLS1600 provides abundant real first-aid scenes for emergency physicians to train first aid operation process via friendly man-machine interface. The product is made of imported material with soft, elastic and not easily deformed skin, which is a good helper for pediatric teaching. It is the world leading man-machine interaction child ACLS training simulation system, can simulate real emergency scenes and all the related signs of emergency patient, such as: pupil states, artery pulse, heart rhythm, heart and lung auscultation sound, etc.

Features:
* This sign indicates that the functions can be run only when the manikin is used with the optional accessories

Head and Neck:

1. Pupil observation, one side is normal, the other side is dilated; the Flash animation displays light reaction and diameter changes of pupils;

2. Simulate airway foreign obstruction: foreign body obstruction in pharynx, main airway obstruction;

3. Carotid artery is available for five-year old child;

4. Respiration mode:Normalbreath, oligopnea, tachypnea, superficial respiration, excessive respiration, Kussmaul’s respiration, Cheyne-stokes respiration, meningitic breathing, sighing breath, irregular gasping, breathing holding;

5. Voice: including crying, laughing, moaning, coughing, gasping and all kinds of complaints, etc;

6. Airway management: realistic mouth, nose, tongue, gum, throat, esophagus, epiglottis, trachea (the diameter of the simulative airway: 9mm); can practice tracheal intubation via mouth, sputum suction; simulate airway foreign body obstruction conditions(pharyngeal and main airway obstruction); can practice tracheal incision; only right lung ventilation due to excessive intubation position.

Chest and Abdomen:

1. Manikin organs include: bilateral lungs, stomach, bladder, rectum, bilateral lungs ventilation, liquid can be infused and drained out from bladder and rectum;

2. Simulate spontaneous breathing, chest rise; can perform bilateral, left side , right side chest rise;

3. Bilateral puncture decompression and puncture effusion can be performed;

4. Femoral artery pulse

5. Auscultatory sound: including heart sound, respiratory sound, bowel sound; and the normal heart sound and respiratory sound can be adjusted according to the heart rate and respiratory frequency;

6. Gastric intubation: can perform gastric lavage, gastrointestinal decompression operation; intubation position can be detected via abdominal auscultation; suction of gastric liquid indicates successful intubation;

7. Vital signs monitor: ECG, heart rate, respiratory frequency, BP, body temperature, saturation of blood oxygen, end-tidal partial pressure of CO2, etc; the flash can simulate spasm condition;

8. Simulate skin color: normal, central cyanosis, peripheral cyanosis, mixed cyanosis, pale;

9. Urethral catheterization: can change male/female perineum to practice male/female catheterization;

10. CPR: Support multiple ventilation ways: mouth to mouth, mouth to nose, BVM to mouth; electronic monitoring of airway open, inflation times, frequency, volume and compression times, frequency, position and depth; automatic judgment of artificial respiration and chest compression ratio; English voice prompts during the entire process;

11. AED, defibrillation and pacing: multimedia animation displays AED and defibrillation process;

* Real defibrllation and pacing:Achieve real defibrillation and pacing by using with real defibrllating pacer(prepared by user-self);

* ECG montoring: Be used with real ECG monitor (prepared by user-self) to realize ECG monltoring,Simulative ECG montoring should be used with CH/J115 multi-parameter simulation of ECG to achieve the function of monitoring ECG

* Simulate defibrillation and pacing: should be used with CH/J880; can choose defibrillation energy, the max energy is 360J;
* Sinulate AED:be used with CHAED99F to sinulate AED operation;English voice prompts during the entire process; providing electrode button; automatic heart rhythm detection and analyze if the defibrillation is needed;

Limbs:

1. Manual BP measuring arm can simulate BP measurement with Korotkff sound;

2. Venous puncture/transfusion: arm vein, femoral vein, dorsal vein of foot

3. Skin care

4. Intramuscular injection: bilateral deltoid , bilateral vastus lateralis;

5. Bone marrow puncture: tibia with obvious body surface symbol, effusion of simulative bone marrow indicates proper puncture operation;

Software:

1. Provide various kinds of drug and multiple administration ways: i.v. drops, i.v., hypo., intramuscular injection, anal plug, injection pump, transfusion pump, etc; general dose and usage of each drug is preset; some drugs exist pharmacodynamic physiological reaction;

2.Provide all kinds of auxiliary examination: biochemical report, CT, ultrasound,ECG,etc;
3.Training and examination,ECG identfication training, CPR training and examination are avallable in the system;
4.Simulative cases training and assessment Provide various clinical cases script
5.Perform PETCO2:conirm tracheal intubation position and monitor the effectiveness of resuscitation operation

Standard Component:
