Quick Details
-
Dimension(L*W*H):
-
780*680*800 mm
-
Weight:
-
350kg
-
Product name:
-
Screw Air Compressor
-
Capacity:
-
0.84 to 1.3 m3/min
-
Pressure:
-
7 to 13 bar
-
Application:
-
General Industry
-
Air end:
-
GHH/Rotorcomp/Hanbell
-
Motor:
-
Siemens/ABB/Suma IP54
-
Cooling method:
-
Air Cooling
-
Bearing:
-
Sweden SKF
-
Noise:
-
65dB
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Indonesia, India, Russia, Malaysia, Australia, Sri Lanka, South Africa
-
Certification:
-
CE/ISO9001/TUV/SGS
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dehaha
-
Voltage:
-
Customer requirements
-
Dimension(L*W*H):
-
780*680*800 mm
-
Weight:
-
350kg
-
Product name:
-
Screw Air Compressor
-
Capacity:
-
0.84 to 1.3 m3/min
-
Pressure:
-
7 to 13 bar
-
Application:
-
General Industry
-
Air end:
-
GHH/Rotorcomp/Hanbell
-
Motor:
-
Siemens/ABB/Suma IP54
-
Cooling method:
-
Air Cooling
-
Bearing:
-
Sweden SKF
-
Noise:
-
65dB
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Indonesia, India, Russia, Malaysia, Australia, Sri Lanka, South Africa
-
Certification:
-
CE/ISO9001/TUV/SGS
| DHH | Air flow Capacity(m3/min) | Power | Noise | Outlet Diameter | Dimension | Weight | |||
| MODEL | 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | KW | dB(A) | INCH | W×D×H mm | Kg |
| DB-7.5A | 0.91 | 0.84 | 0.75 | 0.63 | 5.5 | 65 | G3/4" | 780×680×800 | 300 |

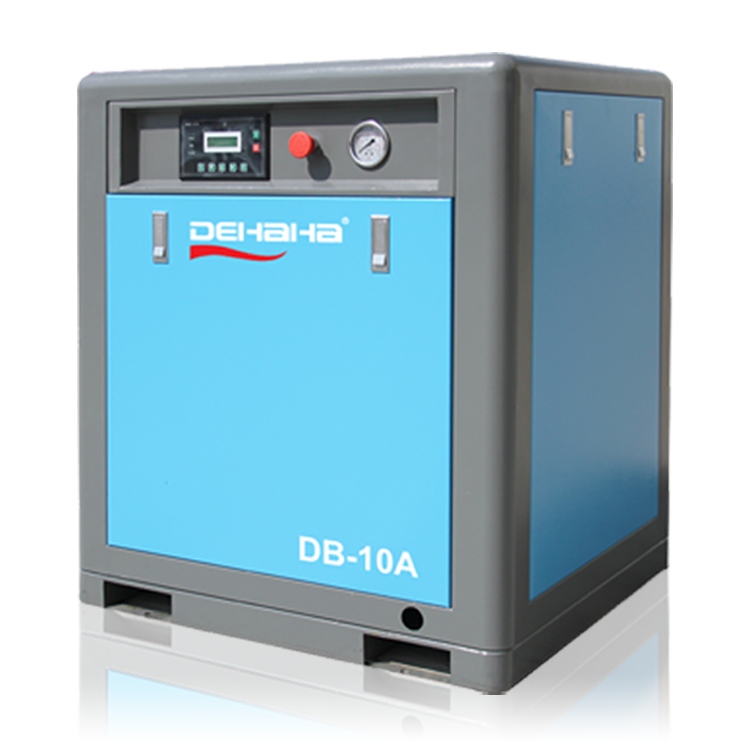

| DB-10A | 1.3 | 1.2 | 1 | 0.84 | 7.5 | 65 | G3/4" | 780×680×800 | 320 |
| DB-15A | 1.7 | 1.6 | 1.4 | 1.2 | 11 | 65 | G3/4" | 1100×800×980 | 400 |
| DB-20A | 2.4 | 2.3 | 2 | 1.6 | 15 | 68 | G3/4" | 1100×8000×980 | 430 |
| DB-25A | 3 | 2.9 | 2.7 | 2.3 | 18.5 | 68 | G1" | 1250×870×1180 | 590 |
| DB-30A | 3.7 | 3.6 | 3.2 | 2.8 | 22 | 68 | G1" | 1250×870×1180 | 650 |
| DB-40A | 5.2 | 5 | 4.5 | 3.8 | 30 | 69 | G1" | 1250×870×1180 | 750 |
| DB-50A | 6.5 | 6.2 | 5.6 | 4.9 | 37 | 69 | G1 1/2" | 1540×950×1290 | 880 |
| DB-60A | 8 | 7.3 | 7 | 5.9 | 45 | 70 | G1 1/2" | 1540×950×1290 | 1000 |
| DB-75A/W | 10.1 | 9.5 | 8.7 | 7.8 | 55 | 70 | G2" | 1600×1150×1420 | 1500 |
Belt driven screw air compressor:
1. Reliable quality, competitive price
2. GHH/Rotorcomp/Hanbell Air end, 24 years manufacture experience
3. Perfect service network
4. Easy to install, operate, maintent.
5. Low noise, Low engergy consumption, Low runing, Low maintenance cost.
6. Aptitude and intelligent Control, PLC control, LCD displayer.
Dehaha Compressor was founded in 1996 with over 150 skilled employees and more than 25 R&D engineersteams ’ . We focus on the research & develop,manufacture and energy-saving solutions of screw air compressor to create value for customers and society.In 2018 our total sales volume approached 15 million US dollars.By over 23 years enhanced experiences of designing,producing and marketing,today our valued customers are over 130 countries.
Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents.
Dehaha’s primary businesses focus in following key areas:
Oil-injected rotary screw compressors
Portable screw air compressors
Oil free air compressors
High pressure air compressors
Air treatment equipment
At Dehaha,we earn our customers' trust and satisfaction by manufacturing the superior quality compressed air products for all industries. All of our products are designed for reliable performance, easy maintenance,and maximum energy efficiency.We have sales representatives who can speak English,Spanish,French,and Russian which makes it easier for our clients from all over the world to interact and negotiate with us.
Dehaha continuously innovates product development and management to meet customers' demand.The powerful enterprise culture and continuous innovation make Dehaha improved rapidly to reach the business principle"Energy Saving First, Mutual Value Shared". Dehaha mission is to be a world-renowned high-end brand,with sustainable development,constantly improving its own value and sharing it with our customers and staff.Committed to offer our customers a silent and energy-saving manufactured products.
