Quick Details
-
Rated Duty Cycle:
-
50-100%
-
Max. Welding Thickness:
-
8MM
-
Dimensions:
-
510*250*400mm
-
Usage:
-
Ultrasonic Metal welding
-
Voltage:
-
110v/220v
-
Weight (KG):
-
50 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Frequency:
-
20KHZ
-
Welding Time:
-
0.01-9.99 Sec
-
Max Welding Area:
-
80 SQMM
-
Generator Type:
-
Digital automatic frequency tracking
-
Function:
-
Output amplitude can be adjusted from 5% to 100%
-
Pneumatic Pressure:
-
0.3-0.6Mpa
-
Power(W):
-
4000W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
minder-hightech
-
Rated Capacity:
-
4KVA
-
Rated Duty Cycle:
-
50-100%
-
Max. Welding Thickness:
-
8MM
-
Dimensions:
-
510*250*400mm
-
Usage:
-
Ultrasonic Metal welding
-
Voltage:
-
110v/220v
-
Weight (KG):
-
50 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Frequency:
-
20KHZ
-
Welding Time:
-
0.01-9.99 Sec
-
Max Welding Area:
-
80 SQMM
-
Generator Type:
-
Digital automatic frequency tracking
-
Function:
-
Output amplitude can be adjusted from 5% to 100%
-
Pneumatic Pressure:
-
0.3-0.6Mpa
-
Power(W):
-
4000W
Product details

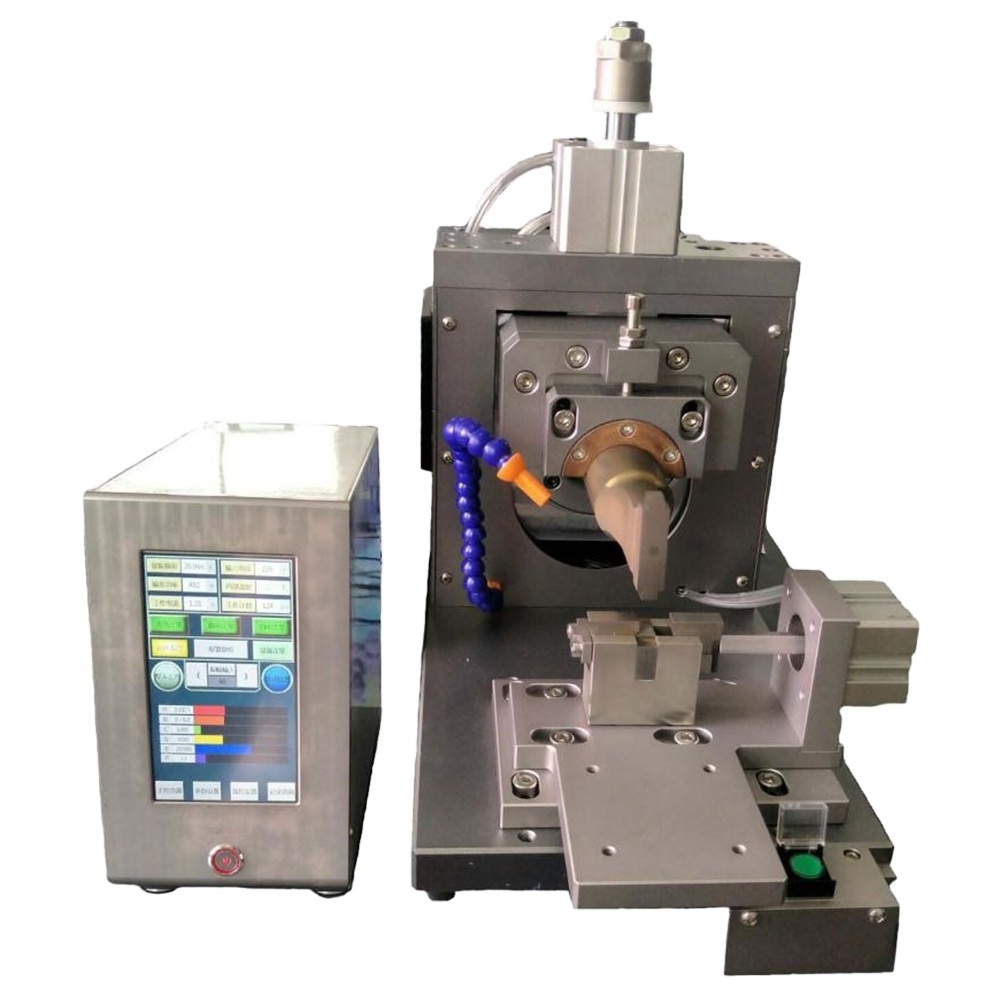

Ultrasonic wire end solidification machine
Ultrasonic wire end solidification machine special for wire end solidification.
Advantage
After welding, the metal material conducts electricity, has good thermal conductivity, and extremely low resistivity, which is
suitable for welding of conductive materials.
suitable for welding of conductive materials.
Application
Battery pack connection, aluminum sheet, copper busbar connection;
Automobile wiring, wiring terminal, multiple wiring welding;
Welding of wiring and electronic components, connectors, terminals;
Welding of different metals such as Al Cu, Al Ni, Cu Ni, Ti Al, etc
Copper pipe seals of refrigerators;
Welding of Ni mesh, Al mesh, Ni foil, Cu Al foil, and solar board.
Specification
|
Model
|
MD-SWBW2030
|
MD-SWBW2040
|
MD-SWBW2070
|
MD-SWBW2080
|
MD-SWBW4010
|
||||
|
Ultrasonic frequency
|
20KHz
|
|
|
|
|
||||
|
Operating Voltage
|
AC220V/50Hz
|
|
|
|
|
||||
|
Ultrasonic power
|
3000W
|
4000W
|
7000W
|
8000W
|
1000W
|
||||
|
Air pressue
|
0.4MPa~0.6MPa
|
|
|
|
|
||||
|
Air pressue
|
4.3 inch/7 inch touch screen
|
|
|
|
|
||||
|
Operating Voltage
|
time/energy/altitude
|
|
|
|
|
||||
|
Control mode
|
30mm
|
|
|
|
|
||||
|
Maximum welding stroke
|
500*180*400mm
|
|
|
|
|
||||
|
Rack size
|
450*135*140mm
|
|
|
|
|
||||
|
Electric box size
|
60kg
|
85kg
|
90kg
|
100kg
|
30kg
|
||||
Factory
Packing
If you want to konw more,please contact our sales engineer:
