- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25YEARS
-
Brand Name:
-
OEM
-
Model Number:
-
540W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Product name:
-

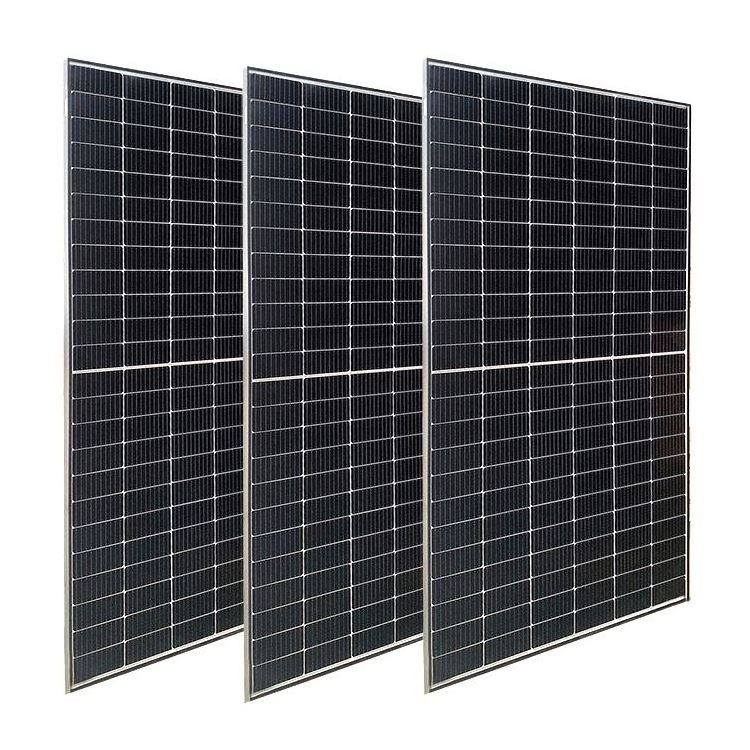

540W Monocrystalline Solar Panel
-
efficiency:
-
20.9%
-
Watt:
-
540W
-
size:
-
2279*1134*35mm
-
Weight:
-
24kg
-
front cover glass:
-
single glass 3.2Mm tempered glass
-
Junction Box:
-
IP68, 3pcs Diode
-
Output wire:
-
4m㎡. Wire length 300mm
-
Packing details:
-
31pcs per pallets 20palllets/ 620pcs per 40HQ container
-
Certificate:
-
CE,ROHS,TUV/CE/IEC/ISO/INMETRO
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, IBC, Monocrystalline Solar Panel
-
Panel Efficiency:
-
20.9%
-
Warranty:
-
25YEARS
-
Brand Name:
-
OEM
-
Model Number:
-
540W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Product name:
-
540W Monocrystalline Solar Panel
-
efficiency:
-
20.9%
-
Watt:
-
540W
-
size:
-
2279*1134*35mm
-
Weight:
-
24kg
-
front cover glass:
-
single glass 3.2Mm tempered glass
-
Junction Box:
-
IP68, 3pcs Diode
-
Output wire:
-
4m㎡. Wire length 300mm
-
Packing details:
-
31pcs per pallets 20palllets/ 620pcs per 40HQ container
-
Certificate:
-
CE,ROHS,TUV/CE/IEC/ISO/INMETRO
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
|
Model Number
|
540W
|
||||
|
Size
|
2279*1134*35mm
|
||||
|
Panel Efficiency
|
20.9%
|
||||
|
Warranty
|
30years
|
||||
|
Cell size
|
182mmx182mm
|
||||
|
Solar Cell
|
P type Mono-crystalline
|
||||
|
Cell Number
|
144 (6*24)
|
||||
|
Weight
|
23.5 kg
|
||||
|
Front Glass
|
3.2mm, Anti-Reflection Coating
|
||||
|
Frame
|
Anodized Aluminium Alloy
|
||||
|
Junction Box
|
IP68 Rated
|
||||
|
Cable
|
4mm,(+300)mm
|
||||
|
Back Glass
|
2.0mm, Heat Strengthened Glass
|
|
Electrical Data(STC)
|
||||||||||||
|
Module Type
|
530W
|
535W
|
540W
|
545W
|
550W
|
555W
|
||||||
|
Maximum Power (Pmax)
|
530Wp
|
535Wp
|
540Wp
|
545Wp
|
550Wp
|
555wp
|
||||||
|
Maximum Power Voltage (Vmp)
|
41.31V
|
41.47V
|
41.64V
|
41.80V
|
41.96V
|
42.11v
|
||||||
|
Maximum Power Current (Imp)
|
12.83A
|
12.9A
|
12.97A
|
13.04A
|
13.11A
|
13.18A
|
||||||
|
Open-circuit Voltage (Voc)
|
49.3V
|
49.45V
|
49.60V
|
49.75V
|
49.90V
|
50.02V
|
||||||
|
Short-circuit Current (Isc)
|
13.72A
|
13.79A
|
13.86A
|
13.93A
|
14A
|
14.07A
|
||||||
|
Module Efficiency STC (%)
|
20.5%
|
20.7%
|
20.9%
|
21.1%
|
21.3%
|
21.5%
|
||||||
|
Operating Temperature(℃)
|
-40℃~+85℃
|
|||||||||||
|
Maximum system voltage
|
1500VDC (IEC/UL)
|
|||||||||||
|
Maximum series fuse rating
|
25A
|
|||||||||||
|
Power tolerance
|
0~+3%
|
|||||||||||
|
Temperature coefficients of Pmax
|
-0.35%/℃
|
|||||||||||
|
Temperature coefficients of Voc
|
-0.28%/℃
|
|||||||||||
|
Temperature coefficients of Isc
|
0.048%/℃
|
|||||||||||
|
Nominal operating cell temperature (NOCT)
|
45±2℃
|
|||||||||||
Details Images
Details Images
Shipping and Payment
Shipping and Payment
* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
