Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
8 +2 Port PoE Switch
-
Power:
-
AC 110-220V
-
Condition:
-
Box
-
Device Type:
-
Switch 8 Ports
-
Manufacturer:
-
12 Years
-
Warranty:
-
2 Years
-
PoE Ports:
-
8 Ports
-
Brand:
-
LOOSAFE
-
Connector Type:
-
8x 10/100Mbps RJ45 Ports
-
Weight:
-
1.57KG
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
12Gbps
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
8 +2 Port PoE Switch
-
Power:
-
AC 110-220V
-
Condition:
-
Box
-
Device Type:
-
Switch 8 Ports
-
Manufacturer:
-
12 Years
-
Warranty:
-
2 Years
-
PoE Ports:
-
8 Ports
-
Brand:
-
LOOSAFE
-
Connector Type:
-
8x 10/100Mbps RJ45 Ports
-
Weight:
-
1.57KG

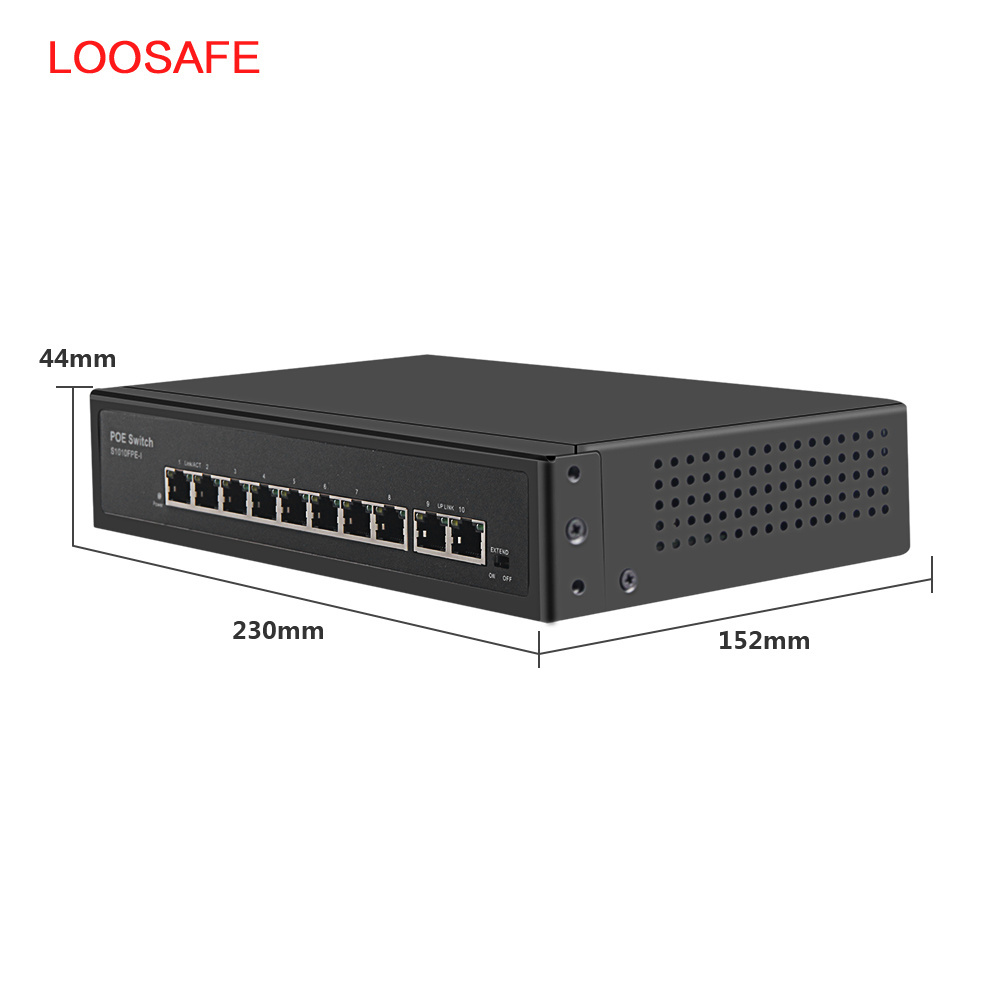

LOOSAFE 120W 8 Port PoE Switch 10/100Mbps POE Switch 48V power Ethernet For IP Camera Network Switch 8 port
Main features:
*8*10/100mbps POE port;1*10/100mbps UP Link port
* 100m Distance
* Support IEEE802.3AF/AT
* Whole Power:120W(52V 2.3A)
* All port supported by MDI/MDIX auto flip and self negotiation
* Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
* Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
* E ach port max. power supply reached 30W.
|
Product |
8+2 Port POE Switch (External) |
|
Model |
S1010FPE-1 |
|
POE Port |
1 to 8 support POE network power supply |
|
VLAN isolation |
support |
|
Power Pin |
Both 1/2+,3/6- and 4/5+7/8- |
|
Whole Power |
110v-240v |
|
Total power |
120w |
|
POE Type |
E nd-span |
|
Power Distance |
≤250m |
|
Network Standard |
IEEE 802.3, IEEE802.3u,802.3x,802.3af/at |
|
Network Medium |
10/100BASE-TX:5 class and above non shielded twisted pair |
|
Data Distance |
≤150m |
|
Switch Capability |
1.6Gbps |
|
Forwarding Mode |
Store and forward |
|
Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx:14800pps/port |
|
MAC Address |
MAC address table 1K |
|
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
LED Indicator |
E ach port occupied 1 LINK/ACT.100Mbps, POE Status Indicator, Whole power indicator |
|
Working Environment |
W orking temperature:-10°-- 55°C |
|
Weight |
1.2kg |
|
Size |
200mm*118mm*44mm(L*W*H) |
