- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
AHONY or OEM
-
Model Number:
-
eMobi F8x12.5w
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
280*300*30mm
-
Product name:
-

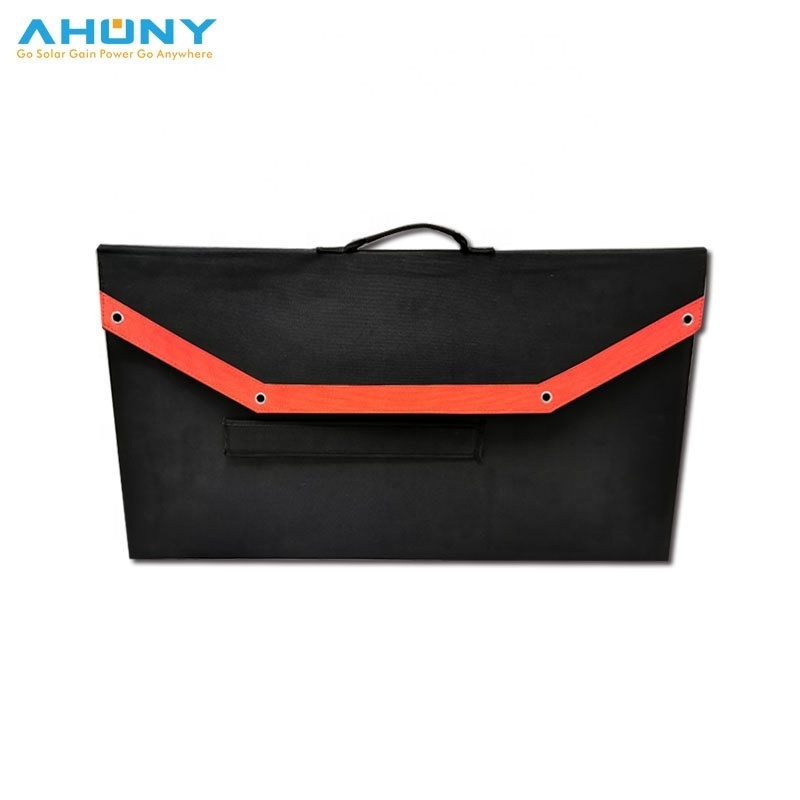

8fold 12.5w foldable solar charger all in on portable suitcase
-
Solar cell:
-
A grade Sunpower back contact
-
Application:
-
camping rv outdoor travel hiking climbing
-
Cell Type:
-
125mm (5 Inch)
-
cloth:
-
600d
-
surface:
-
ETFE
-
backsheet:
-
PET
-
usage:
-
portable solar generator
-
feature:
-
ultralight small size big power solar suitcase
-
Certificate:
-
CE ROHS ISO9001
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
IBC
-
Panel Efficiency:
-
19%
-
Warranty:
-
1 year
-
Brand Name:
-
AHONY or OEM
-
Model Number:
-
eMobi F8x12.5w
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
280*300*30mm
-
Product name:
-
8fold 12.5w foldable solar charger all in on portable suitcase
-
Solar cell:
-
A grade Sunpower back contact
-
Application:
-
camping rv outdoor travel hiking climbing
-
Cell Type:
-
125mm (5 Inch)
-
cloth:
-
600d
-
surface:
-
ETFE
-
backsheet:
-
PET
-
usage:
-
portable solar generator
-
feature:
-
ultralight small size big power solar suitcase
-
Certificate:
-
CE ROHS ISO9001
Thank you for viewing our 8fold 12.5w foldable solar charger all in on portable suitcase for go zero portable solar generator yeti camping.Here please check the solar panel suitcase advantages:
· Adjustable, Corrosion-Resistant aluminum stand,waterproof textile for longevity. Small folded size. Ideal output: 500 Watt hours per day (depends on sunlight availability)
· Compatible with gel, sealed, Lithium, and flooded batteries. Charge controller with LCD display for displaying operating Information and data
· 20A built-in 5-stage Solar charge controller provides overcharge protection, reducing Fire risk
· Negative-ground charge controller for compatibility with your RV, boat, trailer, etc.
· The low-voltage system avoids electric shock hazards
| Model No. | eMobi F4x12.5w | eMobi F8x12.5w | eMobi F4x25w |
| Product Name | 8fold 12.5w foldable solar charger all in on portable suitcase for go zero portable solar generator yeti camping | ||
| Maximum Power[Wp] | 50 | 100 | 100 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell | SunPower Maxeon Gen III Back Contact Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Efficiency | 22.60% | 22.60% | 22.60% |
| Folded Size[mm] | 280*300*30 | 280*300*30 | 550*300*30 |
| Open Size[mm] | 1385*280*5 | 1385*560*5 | 1385*550*5 |
| Max Power Voltage Vmp[V] | 18.56 | 18.56 | 18.56 |
| Max Power Current Imp[A] | 2.69 | 5.39 | 5.39 |
| Open Circuit Voltage Voc[V] | 21.90 | 21.90 | 21.90 |
| Short Circuit Current Isc[A] | 2.91 | 5.82 | 5.82 |
| Net.Weight[kg] | 3.1 | 3.1 | 3.5 |
| NOCT[℃] | 45±2 | 45±2 | 45±2 |
| Operating Temperature[℃] | -40/+85 | -40/+85 | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.3 | -0.3 | -0.3 |
| Temperature Coefficient Voc[[%/℃] | -1.74mV | -1.74mV | -1.74mV |
| Temperature Coefficient Isc[[%/℃] | 0.05 | 0.05 | 0.05 |
| Maximum System Voltage[V] | 100 V | 100 V | 100 V |
| Certification | CE ROHS | CE ROHS | CE ROHS |
| Suface/backsheet | ETFE+PET | ETFE+PET | ETFE+PET |
| Charge controller | PWM 5A 12/24V,1 USB | PWM 10A 12/24V,1 USB | PWM 10A 12/24V,1 USB |
| Cables | 5m 14AWG cable | 5m 14AWG cable | 5m 14AWG cable |
| Connector | battery clips | battery clips | battery clips |
| Supporting Leg | Yes | Yes | Yes |
| Eyelets | Yes | Yes | Yes |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C | STC | STC |
| Package | 1pcs per carton box | 1pcs per carton box | 1pcs per carton box |
Detailed information of our foldable solar charger suitcase
professional sales representative
Fast reply
Customize design
Warranty and after sale service
Repeat gathering feedback and recommend new solar panel product information insure customer get new producing and latest information.
Welcome to enquiry for this 100 Watt 12 Volt Monocrystalline Off Grid Portable Foldable 2pcs 50W Solar Panel Suitcase built in Kickstand with Waterproof 20A.
