Quick Details
-
EINECS No.:
-
210-898-8
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIAGU
-
Model Number:
-
HY485
-
Type:
-
2 component epoxy adhesive
-
Product name:
-
two component epoxy adhesive
-
Color:
-
Grey black
-
Application:
-
structural adhesive
-
Material:
-
epoxy resin
-
Feature:
-
rtv fast curing
-
Packing:
-
two component
-
Volume:
-
400ml/group
-
Keywords:
-
2-component epoxy adhesive
-
Package:
-
20 Kg
-
Shelf life:
-
6 Months
Quick Details
-
CAS No.:
-
38891-59-7
-
Other Names:
-
epoxy adhesive
-
MF:
-
C15H16O2 C2H7ON C3H5OCl
-
EINECS No.:
-
210-898-8
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIAGU
-
Model Number:
-
HY485
-
Type:
-
2 component epoxy adhesive
-
Product name:
-
two component epoxy adhesive
-
Color:
-
Grey black
-
Application:
-
structural adhesive
-
Material:
-
epoxy resin
-
Feature:
-
rtv fast curing
-
Packing:
-
two component
-
Volume:
-
400ml/group
-
Keywords:
-
2-component epoxy adhesive
-
Package:
-
20 Kg
-
Shelf life:
-
6 Months
Product Description
sealant for electronic parts
sealant for battery pack
Thermally conductive structural adhesive
is a two-component,
fast curing
polyurethane or
epoxy resin adhesive material at room temperature, with excellent aging resistance, moisture resistance, electrical insulation, elastic shock resistance and high breakdown voltage.
Remark:
Fast curing for 10 minutes at room temperature 23 ℃,t
he mixed glue should be used up within 5 minutes.
Product Features
1. 1:1 ratio, easy to use
2. Solvent-free, non-corrosive, environmentally friendly and low-carbon
3. Fast curing in 10 minutes, non-smoke gel, flexible
4. It has insulation, moisture-proof, anti-vibration and flame-retardant properties.
Applications
Product Features
1. 1:1 ratio, easy to use
2. Solvent-free, non-corrosive, environmentally friendly and low-carbon
3. Fast curing in 10 minutes, non-smoke gel, flexible
4. It has insulation, moisture-proof, anti-vibration and flame-retardant properties.
Applications
1.Used for battery packs, transformers, coils, magnetic cores, etc.Bonding of sub-components.
2.Metal, ceramic, plastic, rubber, glass, fiber Bonding and fixing of products, handicrafts, gems, etc.
3.All kinds of repair, bonding, potting, etc.
|
Performance indicators
|
|
HY485
|
|
|
|
Appearance and color
|
Gray-black
|
|
|
|
Viscosity (Pa•s, 23℃)
|
35~65
|
|
|
|
Density (g/cm3, 23℃)
|
1.5±0.2
|
|
|
Volume ratio (A:B)
|
|
1:1
|
|
|
Operation time (min, 23℃)
|
|
5
|
|
|
Initial fixation time (min, 23℃)
|
|
10~15
|
|
|
|
Shore hardness (S.D)
|
≥90
|
|
|
|
Shear strength (MPa)
|
≥10
|
|
|
|
Elongation (%)
|
10~30
|
|
|
|
Flame retardant grade (UL94)
|
V0
|
|
|
|
Thermal conductivity（W/m•k）
|
1.0~1.3
|
|
|
|
Dielectric strength (kv/mm)
|
≥18
|
|
|
|
Volume resistance (Ω•cm)
|
≥1.0×10^14
|
|
|
|
Operating temperature range (℃)
|
-50~120
|
|
Quality inspection
Obtained a number of patent certificates
Latest IOS 9001-2020; UV: CE and other international safety certification

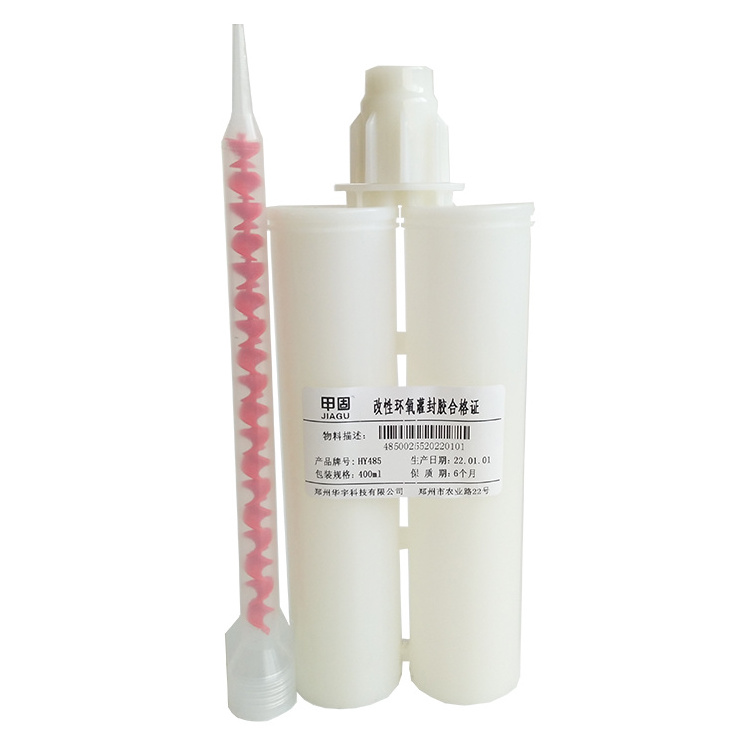

Packaging specification
400ml/group 20kg/set
