Quick Details
-
Trolley traveling speed(mm/min.):
-
2500 Electric/Manual
-
OEM:
-
Yes
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Suitable tank diameter:
-
1000-7000mm
-
Colunmm revolving speed(rpm):
-
Eletric0.1/Manual
-
Trolley traveling speed(mm/min.):
-
2500 Electric/Manual
-
OEM:
-
Yes

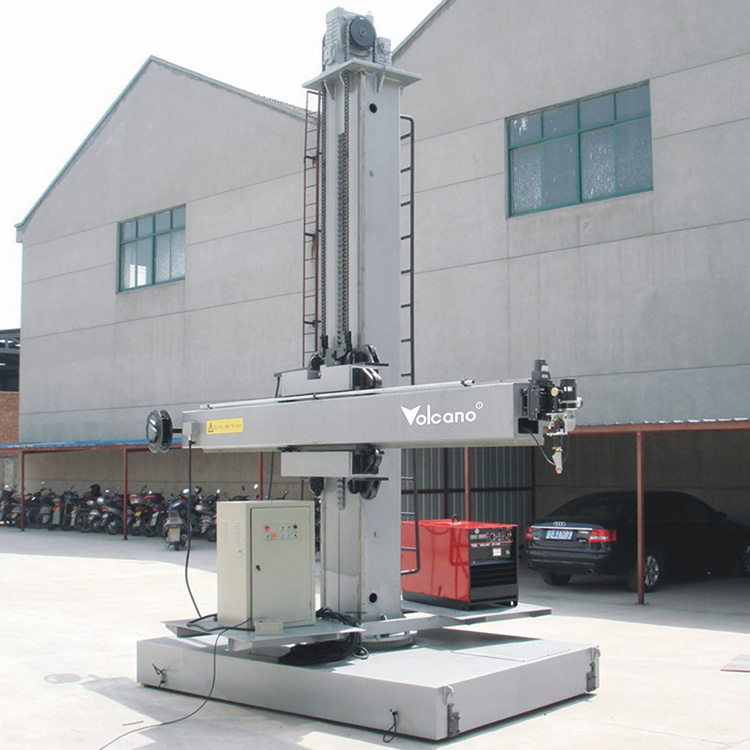

Medium type welding manipulator
|
Model |
HJ3030 |
HJ4040 |
HJ5050 |
||
|
Lifting stroke(mm) |
3000 |
4000 |
5000 |
||
|
Retracting stroke(mm) |
3000 |
4000 |
5000 |
||
|
Lifting speed(mm/min) |
1000 |
||||
|
Retracting speed(mm/min) |
110-1100 |
||||
|
Min.distance from boom to rail surface(mm) |
1100 Movable and rotation |
1095 Stationary and rotation |
|||
|
Max loading at the end of boom(kg) |
< =200 |
||||
|
Columm revolving angle(°) |
± 180 |
||||
|
Columm revolving speed(rpm) |
0.1Electric/Manual |
||||
|
Trolley traveling speed(mm/min) |
1500 |
||||
|
Inner span of trolley(mm) |
1750 |
||||
|
Dimension(mm) |
Height×Length |
5650×4800 |
5650×5800 |
6650×6800
|
|
|
Trolley size |
2500× 2100 × 330(Movable and rotation) 1800×1500×312(Stationary and rotation) |
||||
Batch welding manipulator
Field assembly of batch HJ4040 HJ5050 HJ6060 welding manipulator
Welding manipulator for polishing of stainless barrel
