Quick Details
-
Brand Name:
-
TYSTVideo
-
Model Number:
-
TY-LED840
-
Power:
-
100W
-
Voltage:
-
AC 100-240V,50/60Hz
-
Weight:
-
5 kg
-
Power Supply::
-
AC-DC 12V 2A External power supply
-
LED Life:
-
50000 hours
-
LED quantity:
-
840 Epistar LED lamp beads
-
Light color:
-
White Light
-
Usage:
-
Studio Photography Shooting
-
MOQ:
-
1pcs
-
shell material:
-
Aluminum alloy + acrylic
-
CRI:
-
Ra≥97.8 TLCI≥97
-
Illuminance:
-
2470LUX/1M,709LUX/2M,375LUX/3M
-
Control protocol:
-
DMX512 dimming and host dimming control
Quick Details
-
Color Temperature:
-
3200K-5600K
-
Dimension:
-
57*43*16cm
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
TYSTVideo
-
Model Number:
-
TY-LED840
-
Power:
-
100W
-
Voltage:
-
AC 100-240V,50/60Hz
-
Weight:
-
5 kg
-
Power Supply::
-
AC-DC 12V 2A External power supply
-
LED Life:
-
50000 hours
-
LED quantity:
-
840 Epistar LED lamp beads
-
Light color:
-
White Light
-
Usage:
-
Studio Photography Shooting
-
MOQ:
-
1pcs
-
shell material:
-
Aluminum alloy + acrylic
-
CRI:
-
Ra≥97.8 TLCI≥97
-
Illuminance:
-
2470LUX/1M,709LUX/2M,375LUX/3M
-
Control protocol:
-
DMX512 dimming and host dimming control
Product Description
|
Product Name
|
Studio LED panel light
|
|
Model
|
TY-LED840
|
|
Light body weight
|
4kg
|
|
Outer covering material
|
Aluminum alloy + acrylic
|
|
Light angle
|
120°
|
|
Lamp body size
|
525 × 85 × 355mm (including lamp bow)
|
|
Color temperature
|
5600K (± 150K) natural light
|
|
Number of channels
|
1 piece
|
|
Storage temperature
|
-20℃~60℃
|
|
Cooling system
|
Natural air-cooled external radiator
|
|
Operation
|
LED screen adjustment address code and dimming intensity
|
|
Control protocol
|
DMX512 dimming and host dimming control
|
|
Brand
|
TYSTVideo
|
|
Power supply
|
100W
|
|
Color
|
Black + vermilion
|
|
Number of lamp beads
|
840 Epistar LED lamp beads
|
|
Service life
|
50000 hours
|
|
Color rendering index
|
Ra≥97.8 TLCI≥97
|
|
Operating temperature
|
-20℃~50℃
|
|
Dimming function
|
0 to 255 stepless adjustment
|
|
Link method
|
Power line in / out, signal line in / out
|
|
Signal line
|
Three-core XLR head input, three-core XLR head output
|
|
Illuminance
|
2470LUX/1M、709LUX/2M、375LUX/3M
|
-

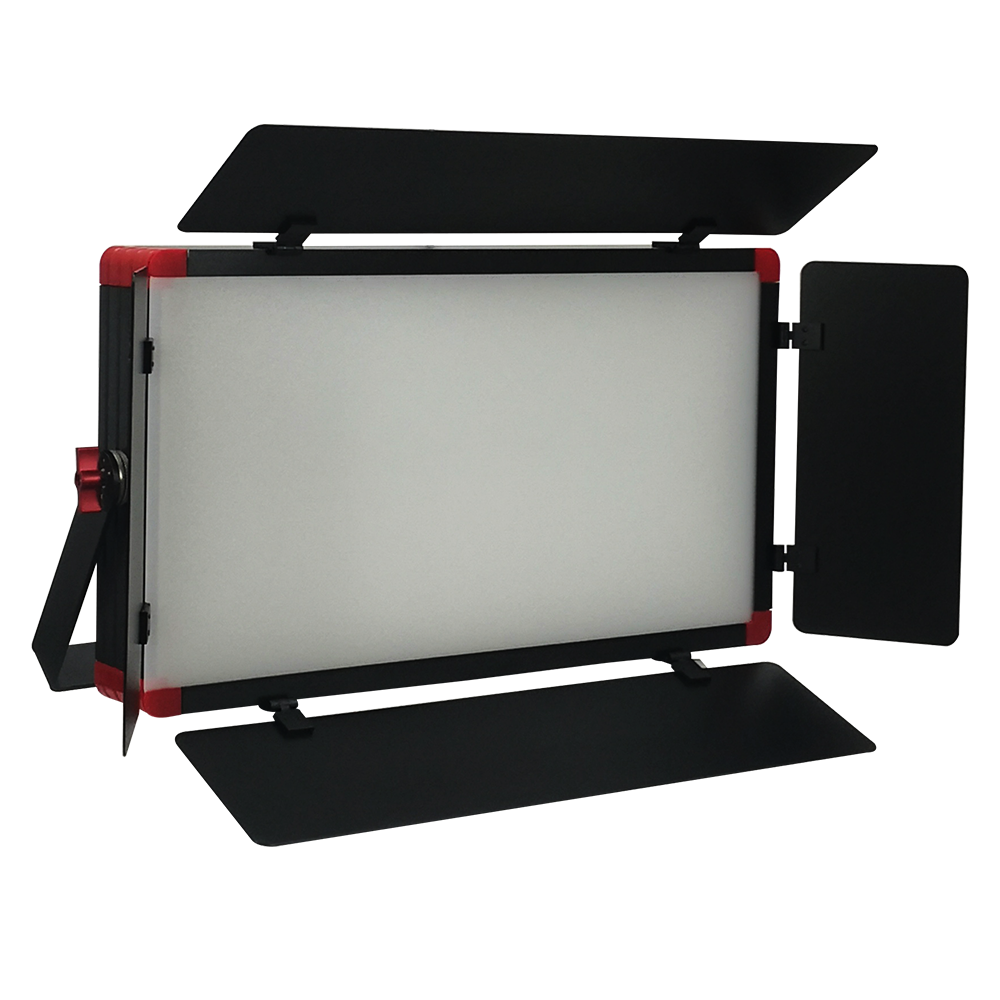

LED photographic lights
-
TY-LED840
◆ It consists of 840 high-brightness Epistar LED lamp beads with a life span of up to 50,000 hours.
◆ Direct-type SMD LED plus surface light source soft light technology.
◆ 120° wide illumination angle of soft light.
◆ 5600K stepless adjustable natural light.
◆ 100W power, 2470 Lux at a distance of 1 meter.
◆ 0-255 no flicker digital integrated dimming.
◆ Color rendering index Ra≥97.8, TLCI≥97.
◆ DMX512 controls the illuminance.
◆ The LED screen can display the illuminance value.
◆ Support 220V/AC adapter power supply.
◆ Metal four-leaf hood, detachable design.
◆ All metal body.
◆ Equipped with U-shaped bracket, which can be hoisted or installed on a tripod.
