Low PIM -160dBc 600 - 3800MHz 4X4 RF passive Combiner 300W High Isolation Hybrid Coupler Combiner with 4.3-10- Female

Low PIM -160dBc 600 - 3800MHz 4X4 RF passive Combiner 300W High Isolation Hybrid Coupler Combiner with 4.3-10- Female

FOB Reference Price: Get Latest Price

≥20 Pieces

US $493.05

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Frequency(MHz):: 600-3800MHz

VSWR:: ≤1.35

Insertion loss:: 7.5

Impedance:: 50ohm

Color:: Grey or Customized

Connector Type:: 4.3-10-female Connector

Isolation:: 22dB

PIM:: -160dBc

Company Type:: Manufacturer

Brand:: Maniron

Quick Details

Brand Name:: Maniron

Model Number:: MHC-740-44-41F-160

Place of Origin:: Anhui, China

Frequency(MHz):: 600-3800MHz

VSWR:: ≤1.35

Insertion loss:: 7.5

Impedance:: 50ohm

Color:: Grey or Customized

Connector Type:: 4.3-10-female Connector

Isolation:: 22dB

PIM:: -160dBc

Company Type:: Manufacturer

Brand:: Maniron

Product Description

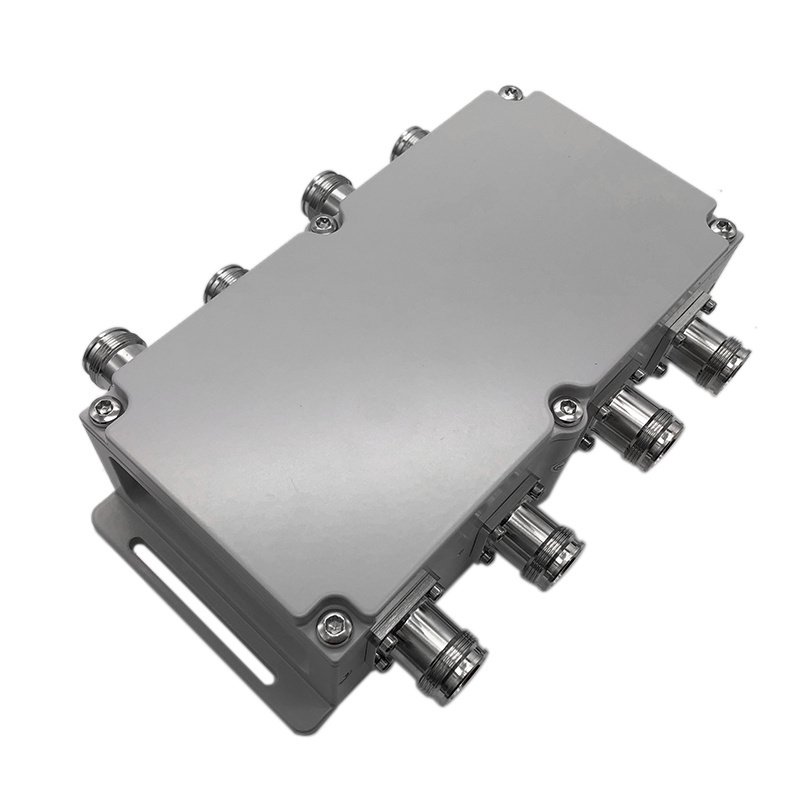

Product Name	4 in 4 out Hybrid Coupler
Frequency Range	600-3800MHz
Coupling(dB)	6.1±2dB (600-960MHz) 6.1±1.5 (960-3800MHz)
Insertion Loss(dB)	≤7.5 dB
Isolation(dB)	≥22
VSWR	≤1.35	≤1.30	≤1.30	≤1.30
Average Power(W)	300W
PIM	≤-160dBc@2*43dBm
IP Grade	IP65
Impedance	50 ohm
Humidity	5-95%
Application	Indoor & Outdoor IP67
Temp Range	-35 to +65
Connector Type	4.3-10-Female
Color	Grey or customized
Net Weight	2.28kg

Product performance description

* Widely Frequency Band 600-3800MHz

* Low VSWR& Low Insertion Loss

* Low PIM-160dBc

- Product performance description

* RF Connector:4.3-10Female

* 2G/3G/4G/5G/LTE Coverage

* Widely used for In-building Solutions

* Guaranteed one year Standard

Related Products

Company Introduction

Hefei Maniron Electronic And Technology Co LTD., Esatablished in 2002,is a leading manufacturer of RF components,We offer OEM
services.Headquarters of Maniron Electronic is located at hi-tech developing district in Hefei Anhui,China.Includes two
factories.At the same time,Maniron’s market network has been all over the world.The Maniron Electronic has a huge fellowship that
is composed of many high-level technologists.And also has established a research institution which cooperating with some famous
universities.high-level technologists. We also has established a Research Institution which is cooperting with some famous
universities in China.

Product Usage

1. In-Building DAS systems requiring best PIM performace

2.Mobile Communication Network Optimization and In-door distribution
system
3.Cluster communication, satellite communication,shortwave communication and hopping radio.
4.Radar, electronic navigation and electronic confrontation.
