Quick Details
-
Productivity:
-
30m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Weight:
-
3500 kg
-
Dimension(L*W*H):
-
4300*2060*3680mm
-
Product name:
-
Concrete Mixer Pump
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
130M
-
Max. horizontal conveying distance:
-
350M
-
Productivity:
-
30m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Weight:
-
3500 kg
-
Dimension(L*W*H):
-
4300*2060*3680mm
-
Product name:
-
Concrete Mixer Pump

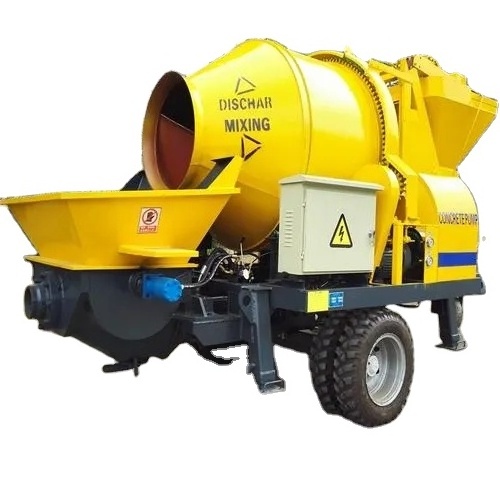

Concrete mixer with pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump.
It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance.
The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.
Parameters of JBS30 Concrete Pump With Mixer :
|
Max theoretical concrete conveying capacity |
30m3/h |
|
Distribution valve model |
S tube valves |
|
Hopper capacity * filling height |
500L* 1200mm |
|
Pump motor power |
30kw |
|
Winding motor power |
4kw |
|
Hydraulic circuit form |
Open circuit |
|
Rated speed |
1480Rmp |
|
Oil tank volume |
170L |
|
Weight |
3500kg |
|
Concrete pumping pressure |
9Mpa |
|
Concrete cylinder size * length |
180mm*800mm |
|
Discharge mouth diameter |
180mm |
|
Mixing motor power |
3*2kw |
|
Water pump motor power |
550w |
|
Gravel: 30mm |
|
|
Voltage |
380v |
|
Dimension (L*W*H) |
4300*2060*3680(mm) |
Product Feature:
1. Mixing and pumping of the perfect combination, to save weight and transportation space frame.
2. high work efficiency.
3. Save labor costs, reduce labor intensity.
4. Smaller power, consider the carrying capacity of rural power grid.
5. Simple operation, easy to use.
6. Double cylinder hydraulic pumping system, capable of delivering crushed stone concrete, stable performance, safe and reliable.
7. Long distance delivery.
Application:
