Quick Details
-
Model Number:
-
WQ-JDX
-
Product name:
-
Borehole Logging
-
Application:
-
Quantitative geological formation properties
-
Power supply:
-
DC200V±20%
-
Resolution:
-
≤40mA
-
SP:
-
±1200mV
-
Apparent resistivity:
-
1~4000Ωm
-
Temperature:
-
80℃
-
Display:
-
Computer Display
-
Accuracy:
-
99%
-
MOQ:
-
1 Pcs
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
China
-
Brand Name:
-
WEQI
-
Model Number:
-
WQ-JDX
-
Product name:
-
Borehole Logging
-
Application:
-
Quantitative geological formation properties
-
Power supply:
-
DC200V±20%
-
Resolution:
-
≤40mA
-
SP:
-
±1200mV
-
Apparent resistivity:
-
1~4000Ωm
-
Temperature:
-
80℃
-
Display:
-
Computer Display
-
Accuracy:
-
99%
-
MOQ:
-
1 Pcs
Details About Geophyiscal Borehole Logging Equipment Water Well Acquafier Logger for Resistivity Test

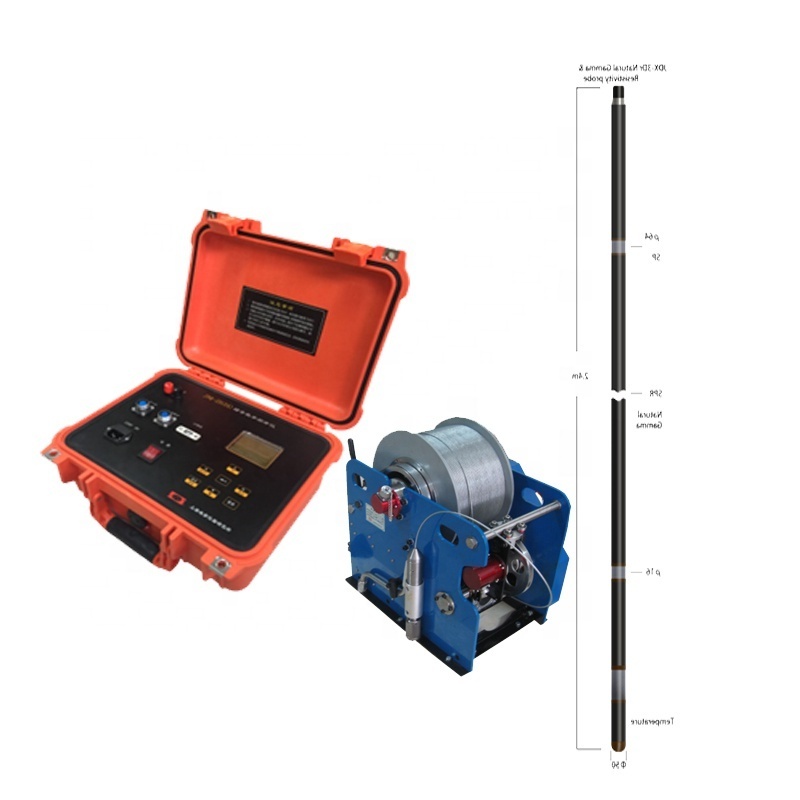

JDX-3Dr Natural Gamma & Electrical Resistivity Probe
Description
The Natural Gamma & Electrical Resistivity Probe measures natural gamma,16” Normal & 64”Normal Resistivity,Spontaneous Potential (SP),Single Point Resistance(SPR),Temperature. Users can log resistivity profiles with different depths of investigation and gain information about permeability, porosity, water quality and geological formation properties.
Operating Conditions:Uncased;Borehole Fluid:Water or Mud.
Features & Benefits
1,The probe will digitize the measured information of the stratum and transmit it to the surface to avoid the effect of the cable on the measurement data.
2,Constant power, adaptive measurement, no manual operation.
Applications
Facies changes;Quantitative geological formation properties
Identification of hydrostratigraphic units
Aquifer thickness;Water quality
Identification of hydrocarbon intervals
Detection of ore body zones;Bed boundary analysis
Parameter
Instrument Power Supply:DC200V±20%,Electricity≤40mA
Electrode Array: AM 16”;AM 64”
Natural Gamma Sensor:NaI Crystal
Temperature Sensor::Platinum Resistance (pt100)
Measuring Range:
resistivity:1~4000Ωm(customize10000Ωm)
Spontaneous Potential (SP):±1200mV
Natural Gamma:0~32768cps
Temperature Range: 0℃~100℃, Resolution:0.025℃
Measurement Accuracy:2%(10~4000Ωm)or ±1Ωm
Environmental: Temperature<80℃;Pressure≤20MPa
Signal: Bipolar Codes
